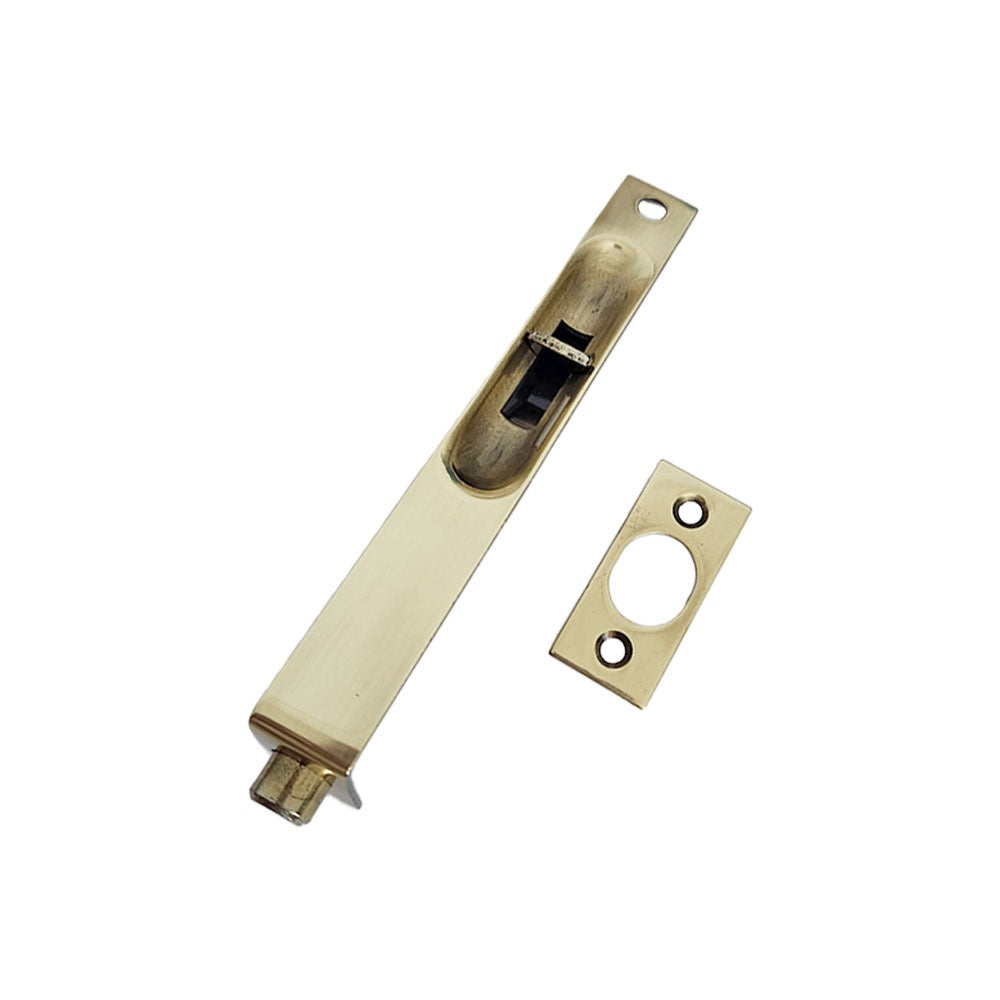

Emtek 8501US7 Square Corner Flush Bolt French Antique Brass

Product Description

The EMTEK 8501US7 is a square corner flush bolt designed for use on inactive doors, French doors, and double-door applications where a concealed or semi-concealed latching solution is required. The bolt mounts flush into the door edge, keeping the face of the door clean while providing a secure hold at the top or bottom of the door. It is finished in French Antique Brass, a warm, aged tone suited for transitional and traditional door hardware sets. The unit measures 6.25 inches in length, 1.5 inches in width, and 1.25 inches in height, and weighs 0.2 pounds. Installation is typically performed by carpenters, finish carpenters, or door hardware installers.

This flush bolt is appropriate for residential and light commercial applications. It is commonly installed on the inactive leaf of a double-door or French door pair, engaging a strike at the floor or door header to hold the inactive door in place. The square corner faceplate profile is suited for doors with squared mortise edges. The French Antique Brass finish coordinates with period-style and transitional interior door hardware sets. Sold individually as a single unit.

Key Features

• Square corner faceplate profile for squared door edge mortises
• French Antique Brass finish for traditional and transitional interiors
• 6.25-inch body length provides a secure bolt throw at door top or bottom
• Compact 1.5-inch width fits standard door edge mortise cutouts
• Lightweight construction at 0.2 pounds for minimal door weight impact
• Sold as a single unit; case quantity of 12 available for multi-door projects

Compatibility

Designed as an OEM-style flush bolt for use on inactive door leaves in double-door and French door installations requiring a square corner faceplate profile.

Installation Notes

Installation is performed by a finish carpenter or experienced door hardware installer. Before installation, ensure the door is properly hung and the inactive leaf is aligned and plumb. A mortise chisel and drill are typically required to prepare the door edge and jamb or floor for the bolt body and strike. Follow local building codes regarding hardware requirements for egress and fire-rated door assemblies where applicable.
