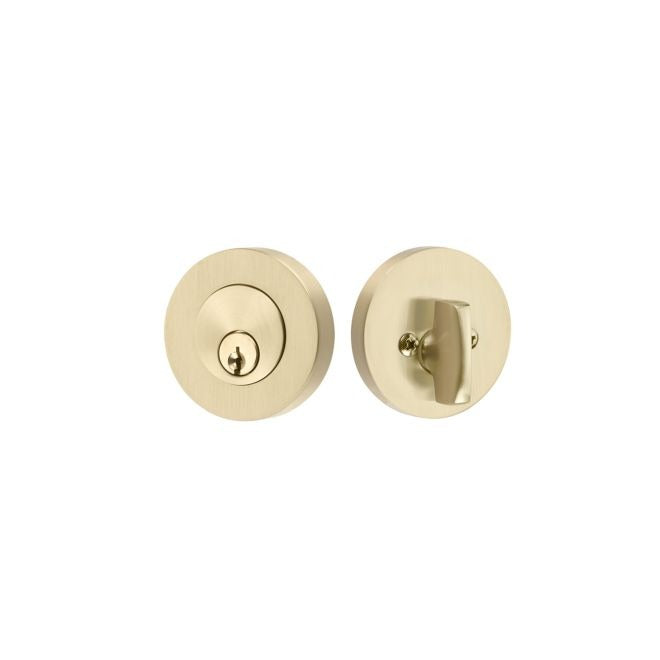

Emtek 8423US4 Modern Disc Single Cylinder Deadbolt Satin Brass

Product Description

The EMTEK 8423US4 is a single cylinder deadbolt featuring a Modern Disc trim design, finished in Satin Brass. It is designed to secure residential entry doors and is compatible with doors measuring 1-3/4 inches thick. The deadbolt ships with two backset options — 2-3/8 inches and 2-3/4 inches — covering the most common door prep configurations found in residential construction. The cylinder operates from the exterior with a key and from the interior with a thumb turn. This hardware is typically installed by finish carpenters, general contractors, or experienced DIYers during new construction or door replacement work.

The 8423US4 is suited for residential interior and exterior door applications where a modern, minimalist aesthetic is required alongside reliable deadbolt security. The Satin Brass finish integrates well with contemporary and transitional design schemes. The included dual backset compatibility makes it adaptable to standard pre-hung door units without additional hardware modification. Custom assembly is performed at the manufacturer's Southern California facility, with each unit sold individually.

Key Features

• Single cylinder deadbolt with Modern Disc trim design
• Satin Brass (US4) finish for a clean, contemporary appearance
• Accommodates 1-3/4 inch door thickness
• Includes both 2-3/8 inch and 2-3/4 inch backset options
• Key cylinder on exterior, thumb turn on interior
• Sold individually; custom assembled per order

Compatibility

Designed for residential doors measuring 1-3/4 inches thick with standard bore prep. Accepts 2-3/8 inch or 2-3/4 inch backset to fit most common door preparations in residential construction.

Installation Notes

Installation is typically performed by a finish carpenter or locksmith and requires a standard door bore kit, chisel, and screwdrivers. Confirm door thickness and existing bore dimensions before ordering. Ensure the door is not under load or binding before installing the latch and deadbolt to avoid misalignment. Follow local building codes for residential entry hardware requirements.
