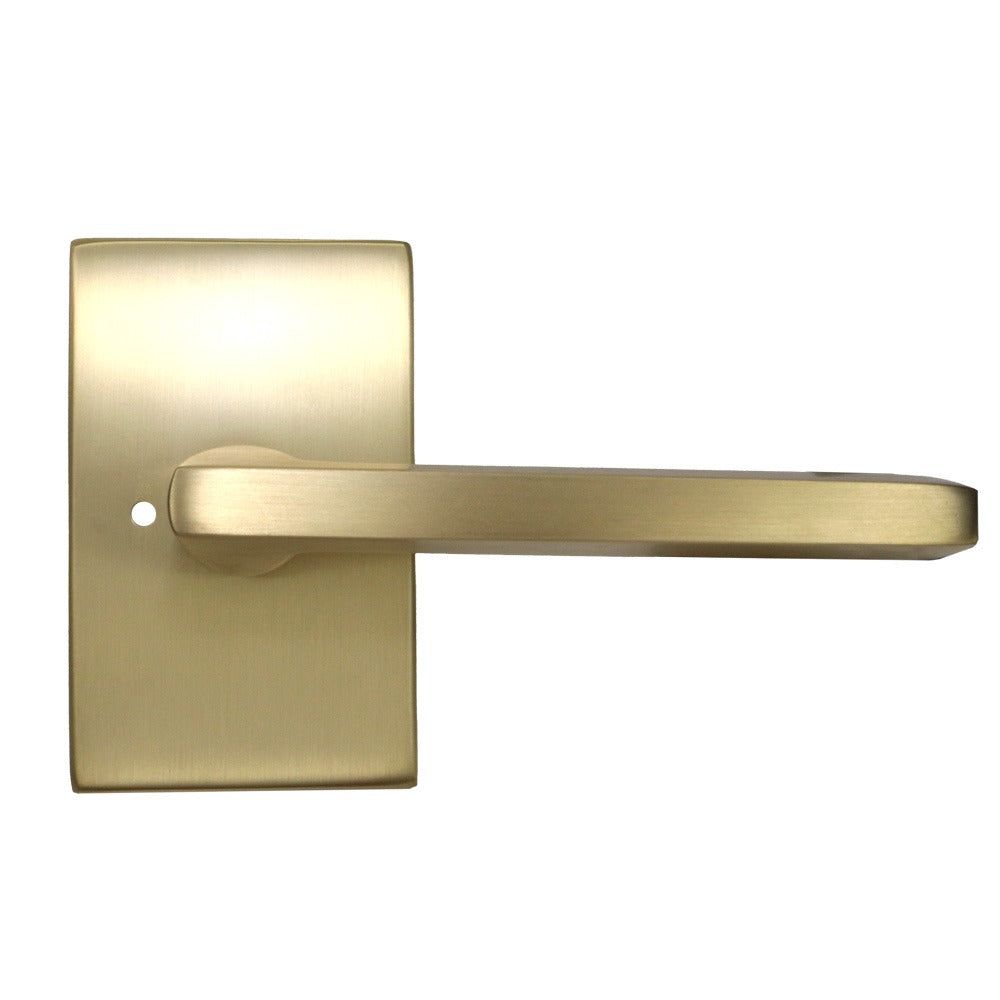

Emtek 5212HLOUS4RH.RLS Helios Lever Privacy Set Satin Brass

Product Description

The EMTEK 5212HLOUS4RH.RLS is a right-hand privacy lever set featuring the Helios lever design, assembled with a radius latch strike and a modern rectangular rose in a Satin Brass finish. This set is configured for a 2-3/8 inch backset and fits doors ranging from 1-1/4 inches to 2 inches in thickness. The privacy function makes it suited for interior rooms such as bathrooms and bedrooms, where one-side locking without a keyed cylinder is required. Each unit is custom assembled and ships as a complete, ready-to-install set for a standard residential interior door bore.

This lever set is intended for interior privacy applications in residential settings. The right-hand configuration is appropriate for right-hand swing doors. The modern rectangular rose provides a clean, contemporary trim profile. The radius latch strike is designed to seat flush in a standard radius-corner strike mortise in the door jamb. Installers working on new construction or remodel projects will find the 2-3/8 inch backset compatible with standard pre-bored interior door slabs.

Key Features

• Helios lever design with modern rectangular rose in Satin Brass finish
• Privacy function — interior one-side push-button or turn lock, no key required
• Right-hand door configuration
• 2-3/8 inch backset for standard interior door prep
• Radius latch strike for flush seating in standard radius-corner jamb mortise
• Fits door thicknesses from 1-1/4 inches to 2 inches

Compatibility

Designed for standard interior doors with a 2-1/8 inch bore, 2-3/8 inch backset, and door thickness between 1-1/4 inches and 2 inches, right-hand swing only.

Installation Notes

Installation is typically performed by a finish carpenter, door hardware installer, or experienced DIYer using a screwdriver and tape measure. Verify door hand orientation before ordering, as this set is right-hand specific and is not field-reversible. Confirm the existing door prep matches a 2-1/8 inch cross-bore and 2-3/8 inch backset before installation. For new installations, follow local building codes regarding door hardware and privacy lock requirements in occupied spaces.
