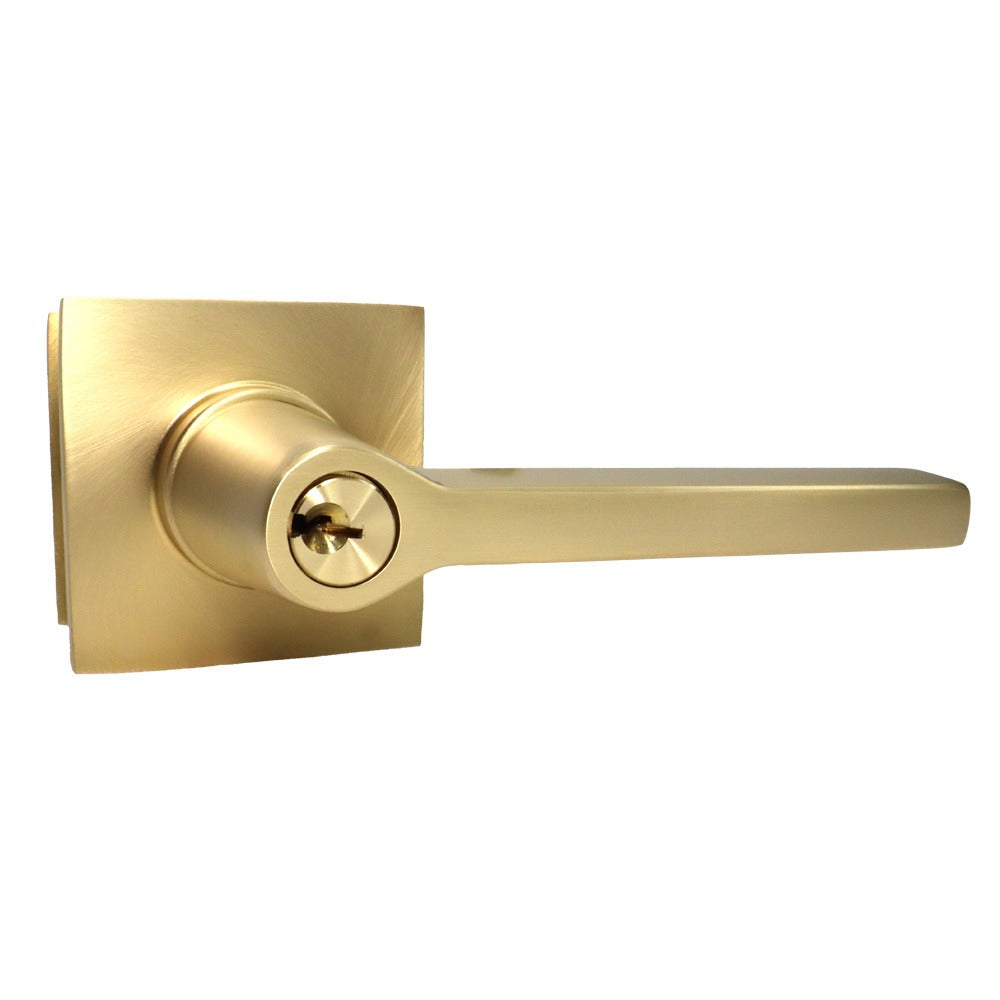

Emtek 5122HLOUS4RH.RLS Helios Lever Keyed Entry Satin Brass

Product Description

The EMTEK 5122HLOUS4RH.RLS is a right-hand keyed entry lever set in a Satin Brass finish, built around the Helios lever design. It ships with a radius latch strike and supports both 2-3/8 inch and 2-3/4 inch backset configurations, making it adaptable to a wide range of standard door preparations. The lever mounts on a square rose and fits doors ranging from 1-3/8 inches to 2-1/16 inches thick. Each unit is custom assembled to order and sold individually. Licensed locksmiths, door hardware installers, and finish carpenters are the typical trades handling this installation.

This lever set is suited for residential entry doors where keyed security is required on a right-hand swing. The square rose and Helios lever profile are appropriate for transitional and contemporary interior design schemes. The dual-backset latch accommodates both new construction and retrofit scenarios where the existing door bore may vary. The Satin Brass finish coordinates with a broad range of door hardware and architectural trim packages.

Key Features

• Right-hand orientation with keyed entry function for exterior or interior security doors
• Dual backset support: 2-3/8 inches and 2-3/4 inches
• Fits door thickness range of 1-3/8 inches to 2-1/16 inches
• Includes radius latch strike for clean mortise alignment
• Square rose mount for a contemporary, geometric profile
• Satin Brass finish for a warm, brushed appearance

Compatibility

Designed as a keyed entry lever replacement or new-install solution for standard residential doors with a right-hand swing, 2-3/8 inch or 2-3/4 inch backset bore, and a door thickness between 1-3/8 inches and 2-1/16 inches.

Installation Notes

Installation is typically performed by a licensed locksmith, door hardware installer, or experienced finish carpenter. Confirm door hand orientation and existing bore dimensions before ordering, as this unit is custom assembled and configured for right-hand application. Use a door prep template to verify backset and cross-bore alignment prior to mounting. Follow local building codes for residential entry door hardware requirements.
