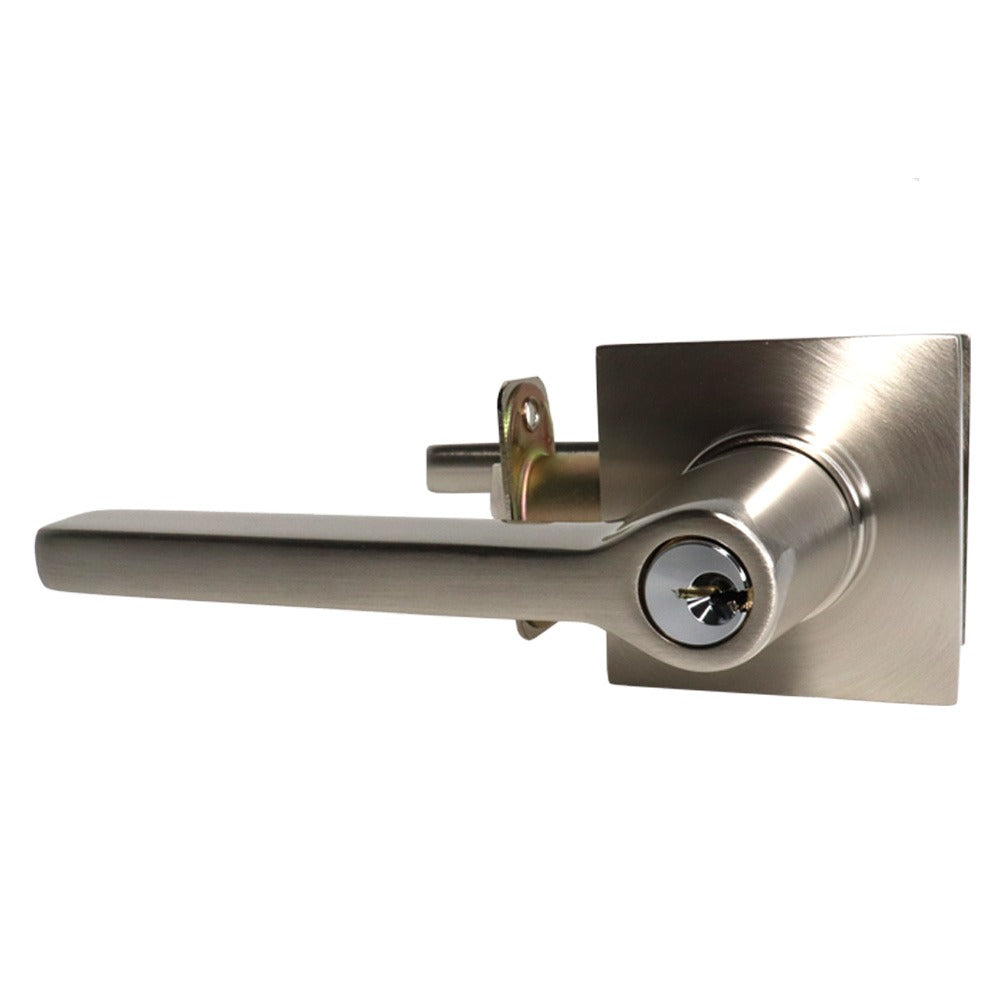

Emtek 5122HLOUS15LH.RLS Helios Lever Keyed Entry Left Hand

Product Description

The EMTEK 5122HLOUS15LH.RLS is a left-hand keyed entry lever set built around the Helios lever design, finished in Satin Nickel. It ships with a radius latch strike and accommodates both 2-3/8 inch and 2-3/4 inch backsets, making it compatible with the most common residential door prep standards. The square rose provides a clean, geometric mounting profile. Door thickness range is 1-3/8 inches to 2-1/16 inches. This hardware is intended for exterior or interior keyed entry applications and is custom assembled to order. Locksmiths, finish carpenters, and general contractors are the primary installers.

This lever set is suited for residential entry doors where a keyed lockset with a defined left-hand swing orientation is required. The Satin Nickel finish coordinates with a wide range of architectural hardware and fixture lines. The included radius latch strike fits standard door jamb preparations. The square rose mounting style is appropriate for both new construction and retrofit applications where the existing door has a standard bore pattern. No additional trim or rosette is required for a complete installation.

Key Features

• Left-hand orientation for correct lever return direction on left-swing doors
• Accepts both 2-3/8 inch and 2-3/4 inch backsets
• Fits door thickness range of 1-3/8 inches to 2-1/16 inches
• Radius latch strike included for standard jamb prep
• Square rose mounting profile for clean, geometric appearance
• Satin Nickel finish for corrosion resistance and neutral aesthetic

Compatibility

Designed for left-hand keyed entry door applications with standard 2-1/8 inch bore and either 2-3/8 inch or 2-3/4 inch backset prep, on doors ranging from 1-3/8 inches to 2-1/16 inches thick.

Installation Notes

Installation is typically performed by a licensed locksmith, finish carpenter, or general contractor. Confirm left-hand handing before installation by verifying hinge placement and swing direction. Ensure the door bore and cross-bore dimensions match the hardware requirements before proceeding. Follow local building codes for keyed entry hardware on egress doors, particularly any requirements governing single-action egress compliance.
