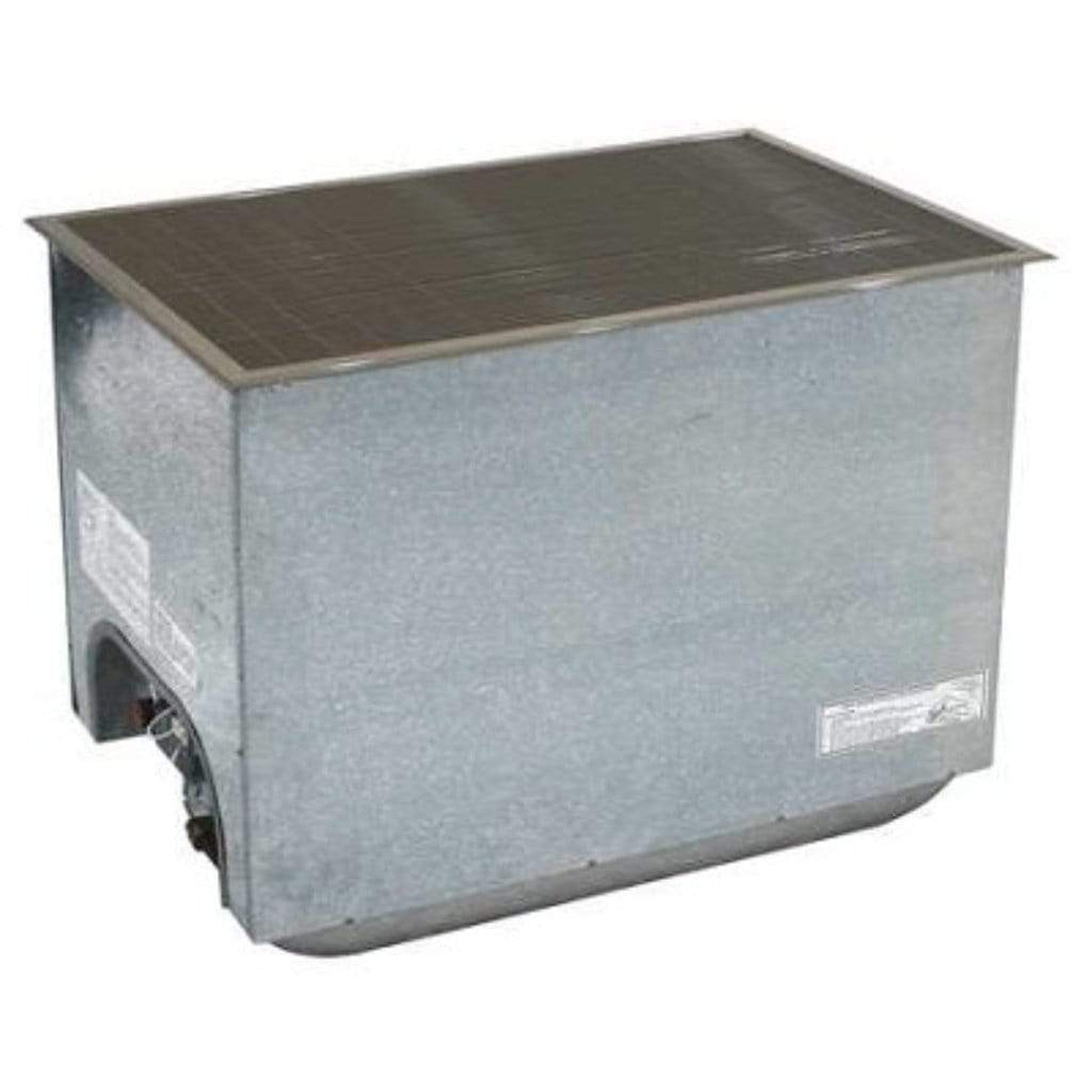

Empire Industries 7088XLP 45 inch 65,000 BTU Millivolt Control Without Thermostat Propane Gas B-Vent Floor Furnace

Product Description

The Empire Industries 7088XLP is a 45-inch propane gas B-vent floor furnace designed for vented zone heating. This 65,000 BTU unit operates without electricity, making it suitable for power outages and off-grid applications. It utilizes room air for combustion and exhausts flue products outdoors via a single pipe, providing whole-house heating. Ideal for replacing inefficient oil or wood stoves, it features a matchless pushbutton piezo ignition for ease of use.

• Operates without electricity, ideal for power outages
• Provides whole-house heating capability
• Features matchless pushbutton piezo ignition

Product Highlights

Provides efficient, whole-house heating using propane gas, with a matchless ignition system.

Product Information

Standard Information

• Brand: EMPIRE INDUSTRIES
• Manufacturer Part Number: 7088XLP
• Country of Origin: USA

Technical Specifications

• Model: 7088XLP
• BTU Input: 65,000
• Control Options: Manual, Toggle Switch, Thermostat, Wall Switch, Remote Control
• Safety Control Features: Automatic Shut-off (Pilot and Main Burners), Temperature Limit Controls, Flood Pan, Debris Pan
• Gas Type: Propane
• Gas Inlet Pipe Size: 1/2 inch NPT
• Gas Inlet to Floor Distance: 4 inches
• Register Dimensions (L x W): 36 inches x 32 inches
• Casing Dimensions (L x W): 34 inches x 30 inches
• Overall Length (Including Diverter): 45 inches
• Floor Opening Dimensions (L x W): 34 5/16 inches x 30 5/16 inches
• Height: 25 3/4 inches
• Minimum Clearance to Combustibles (Each Side): 6 inches
• Minimum Clearance to Combustibles (Bottom for Air): 6 inches
• Minimum Clearance to Combustibles (Draft Diverter and Vent Connector): 6 inches
• Minimum Clearance to Combustibles (Two Adjoining Sides to Walls): 18 inches
• Venting (Floor to Top of Diverter Shield): 4 1/2 inches
• Venting (Center of Flue to Floor Covering): 13 inches
• Flue Collar Size: 5 inch Diameter
