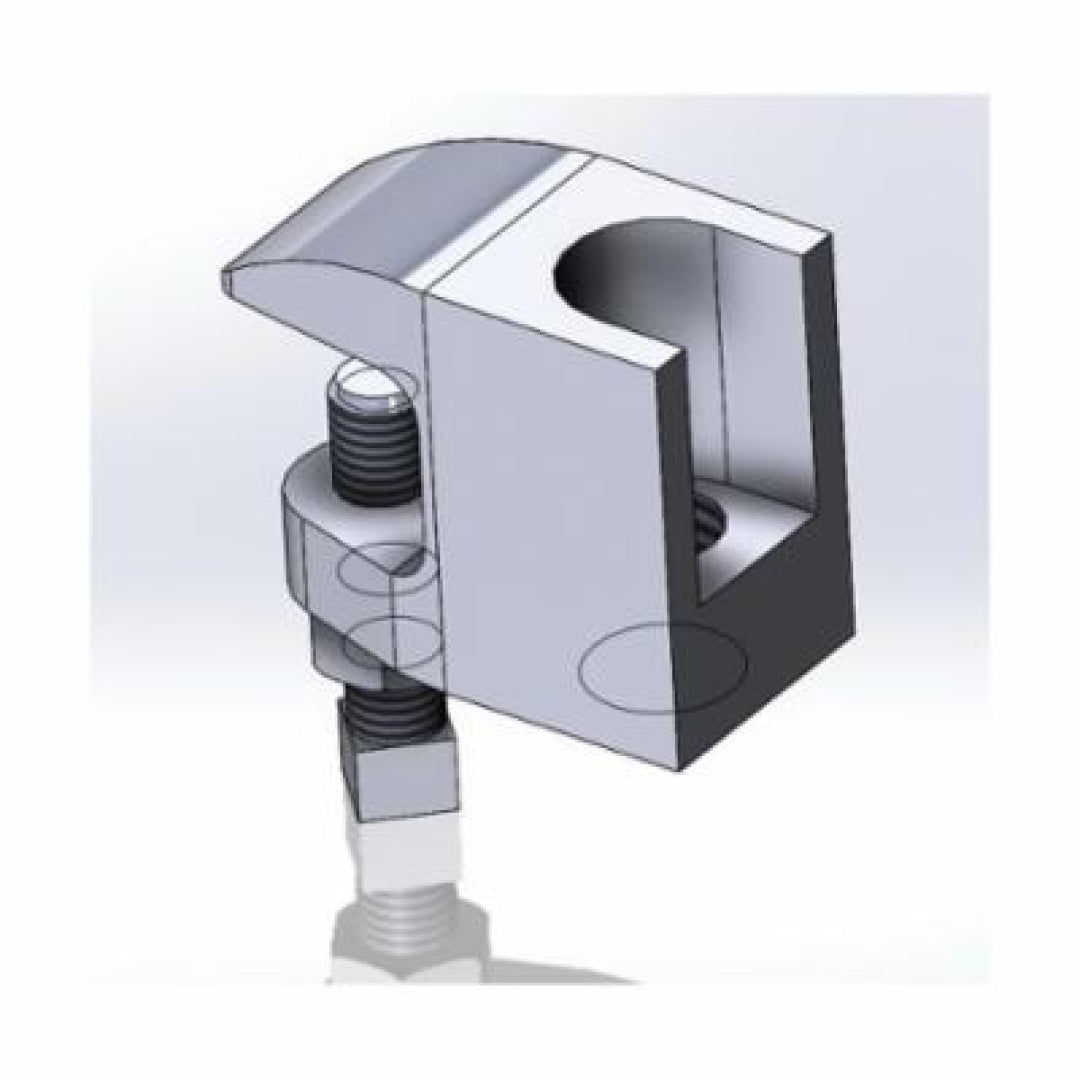

Empire Industries 62G0058 Small Mouth Beam Clamp Electro-Galvanized 5/8-11 Rod (1-3/4 in H)

Product Description

Empire Industries 62G0058 is a small mouth beam clamp with an electro-galvanized finish designed to attach a 5/8-11 hanger rod to the top or bottom flange of a beam or bar joist where flange thickness does not exceed 5/8 inch. Constructed of malleable iron with a hardened steel set screw, it has a 1-3/4 inch overall height and a rated load capacity of 1,130 lb. Complies with Federal Specification A-A-1192 A and MSS SP-58/SP-69.

• Fits 5/8-11 hanger rod; suitable for flange thickness up to 5/8 in; overall height 1-3/4 in.
• Malleable iron construction with electro-galvanized finish and hardened steel set screw.
• Rated load capacity 1,130 lb; Series FIG 62; complies with Federal Specification A-A-1192 A and MSS SP-58/SP-69.

Product Highlights

Electro-galvanized malleable iron beam clamp for 5/8-11 rod with 1,130 lb capacity and 1-3/4 in throat.

Product Information

Standard Information

• Brand: EMPIRE INDUSTRIES
• Manufacturer Part Number: 62G0058

Technical Specifications

• Manufacturer: EMPIRE INDUSTRIES
• MPN: 62G0058
• Product Type: Beam clamp
• Series: FIG 62
• Material: Malleable iron
• Finish: Electro-Galvanized
• Dimensions: 1.75 in H
• Rod Size: 5/8-11
• Load Capacity: 1130 lb
• Set Screw: Hardened steel
• Approvals: Complies with Federal Specification A-A-1192 A (Type #19); MSS SP-58; MSS SP-69 (Type #19)
• Application: Attach hanger rod to top or bottom flange of a beam or bar joist
• Flange Thickness Maximum: 5/8 in
• UPC: 663027039684
