Empire Industries 62G0050 Top Beam Clamp 1/2 inches 4 inches IPS

Product Description

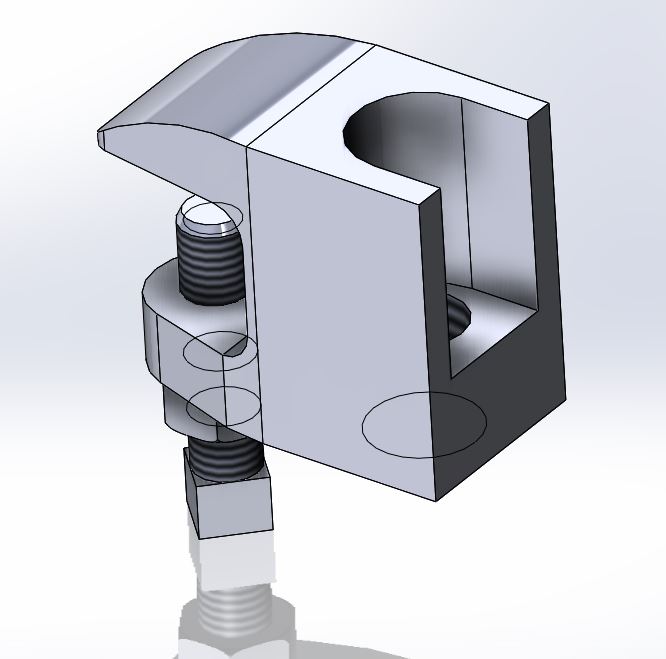

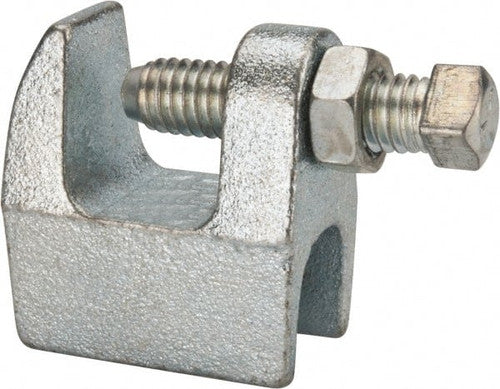

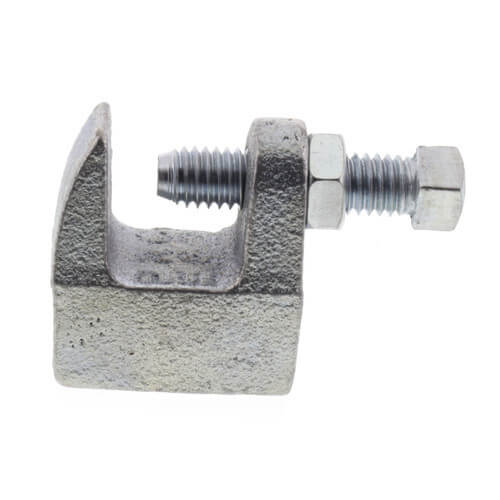

The Empire Industries 62G0050 is a top beam clamp for securing hanger rods to beam or bar joist flanges with a maximum thickness of five-eighths of an inch. This clamp is made from ductile iron and includes a hardened steel set screw, ensuring durability. The electro-galvanized finish enhances its corrosion resistance, making it suitable for various applications. With a maximum load capacity of four hundred seventy pounds, this clamp meets U.L. and U.L.C. standards and complies with Federal Specification A-A-1192 A (Type# 19).

• Constructed from ductile iron with a hardened steel set screw.
• Features an electro-galvanized finish for added protection.
• Suitable for use with flanges up to five-eighths of an inch thick.

Product Highlights

Product Information

Standard Information

• Brand: Empire Industries
• Category: Beam Clamps

Technical Specifications

• Size: 1/2 inches
• Pipe Size: 4 inches
• Max Load: 470 lbs
• Finish: Electro-Galvanized
• Material: Ductile Iron
• Clamp Type: Top Clamp
• Maximum Flange Thickness: 5/8 inches
• Rod Size: 1/2 inches
• Standards: cULus Listed, FM Approved
• Type: Small Mouth Beam Clamp
