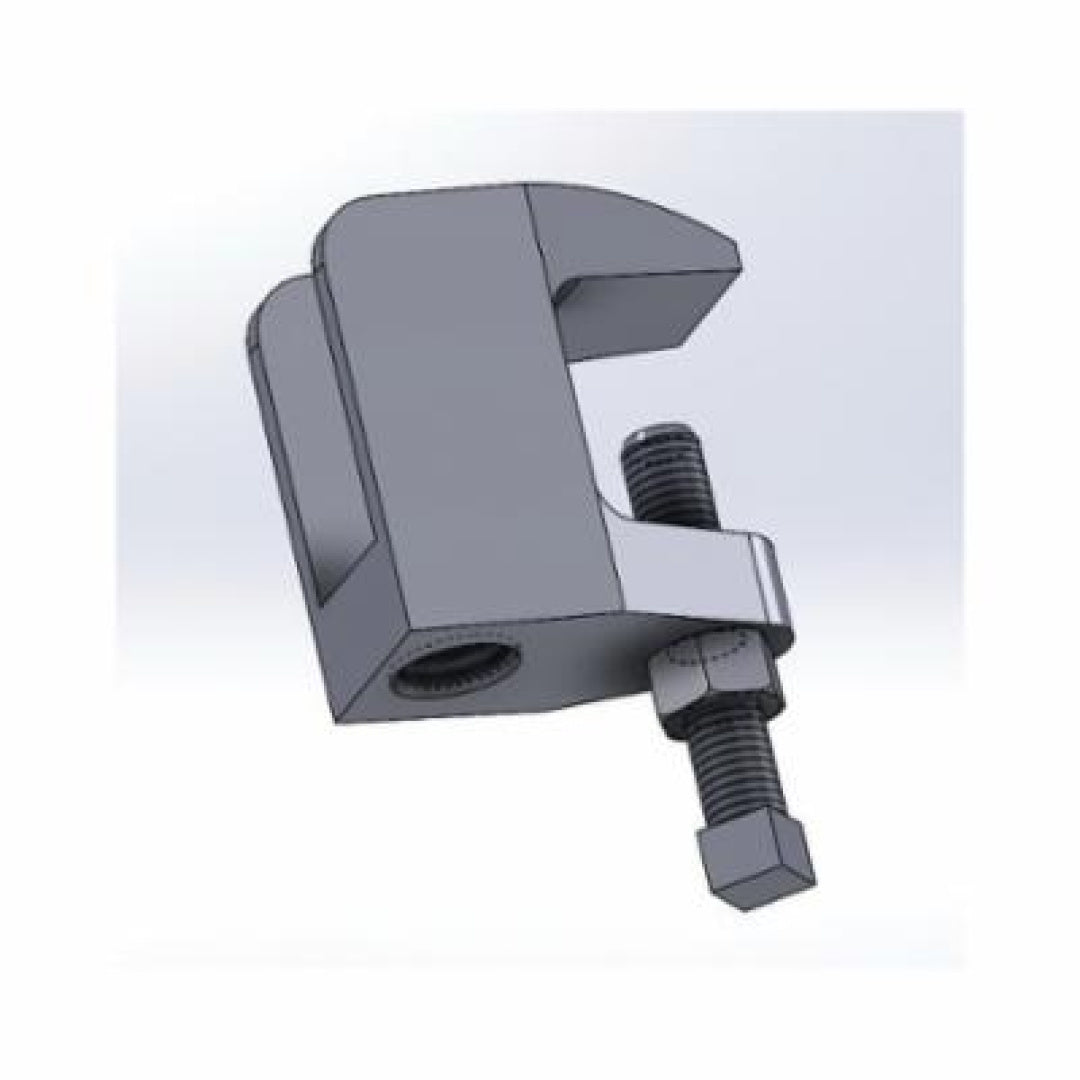

Empire Industries 61G0058 Wide Mouth Beam Clamp 5/8-11 Rod (2-3/8 in H)

Product Description

Empire Industries 61G0058 is a wide mouth beam clamp (Series FIG 61) designed to attach a 5/8-11 hanger rod to the top or bottom flange of a beam or bar. Constructed of malleable iron with an electro-galvanized finish, it measures 2-3/8 in in height and is suitable for use with 5 in pipe. The clamp is rated 750/1130 lb load capacity and complies with Federal Specification A-A-1192 A and MSS SP-58/SP-69.

• Attaches 5/8-11 hanger rod to top or bottom beam or bar flange
• Rated load capacity 750/1130 lb; suitable for use with 5 in pipe
• Malleable iron construction with electro-galvanized finish; 2-3/8 in height; Series FIG 61; standards compliant

Product Highlights

Wide mouth beam clamp for 5/8-11 rod; 750/1130 lb rated load; malleable iron with electro-galvanized finish; 2-3/8 in height; complies with Federal Specification A-A-1192 A and MSS SP-58/SP-69.

Product Information

Standard Information

• Brand: EMPIRE INDUSTRIES
• Manufacturer Part Number: 61G0058

Technical Specifications

• Manufacturer: Empire Industries
• MPN: 61G0058
• Product Type: Wide mouth beam clamp
• Series: FIG 61
• Material: Malleable iron
• Finish: Electro-galvanized
• Rod Size: 5/8-11
• Load Capacity: 750/1130 lb
• Height: 2-3/8 in
• Suitable For Use With: 5 in pipe
• Mounting Type: Top or bottom flange of beam or bar
• Standards/Compliance: Federal Specification A-A-1192 A (Type #19); MSS SP-58/SP-69 (Type #19)
