EMPIRE INDUSTRIES 61G0050 Wide Top Beam Clamp Electro-Galvanized 1/2 inches

Product Description

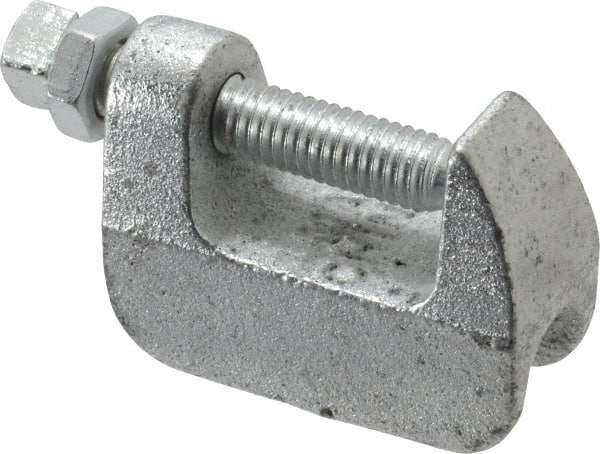

The Empire Industries 61G0050 is a 1/2 inches Electro-Galvanized Wide Top Beam Clamp made from ductile iron with a hardened steel screw. This clamp is ideal for attaching a hanger rod to the top or bottom flange of a beam or bar. It is compliant with several industry standards such as Federal Specification A-A-1192A and MSS SP-58 and SP-69, ensuring reliability and safety in various applications.

• Made of ductile iron with a hardened steel screw
• Electro-galvanized finish for corrosion resistance
• Maximum load capacity of five hundred lbs

Product Highlights

This wide top beam clamp is suitable for use in construction and HVAC applications, providing secure attachment for hanger rods.

Product Information

Standard Information

• Size: 1/2 inches
• UPC: 663027039585

Technical Specifications

• Pipe Size: 4 inches
• Max Load: 500 lbs
• Finish: Electro-galvanized
• Material: Ductile iron
• Rod Size: 1/2-13
• Series: 61 Series
• Suitable For Use With: 4 inches pipe
• Type: Wide mouth
• Clamp Type: Wide & top jaw clamp
• Maximum Flange Thickness: 1-1/4 inches
• Maximum Flange Width: 2 inches
• Standards: cULus Listed, FM Approved, MSS SP-58 & SP-69, UL - U.L.C. Listed
