Empire Industries 61G0038 Wide Top Beam Clamp 3/8 inches

Product Description

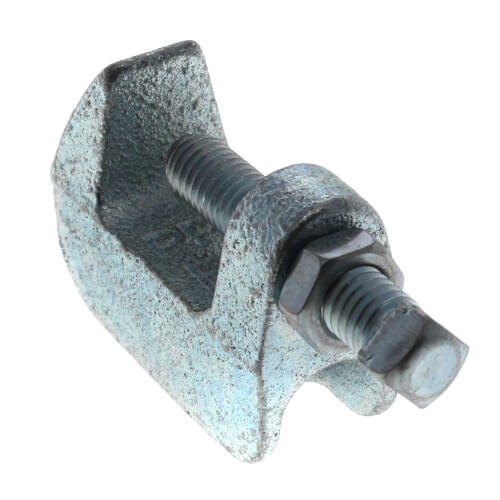

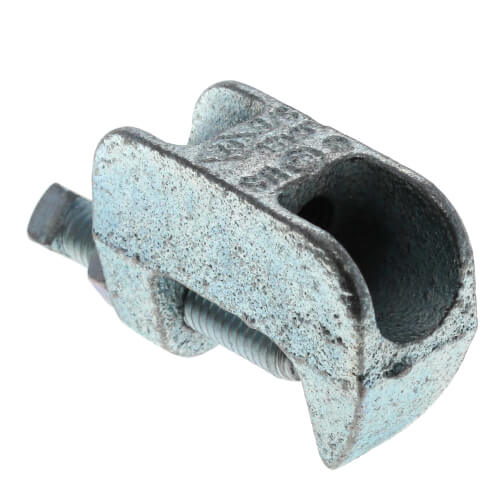

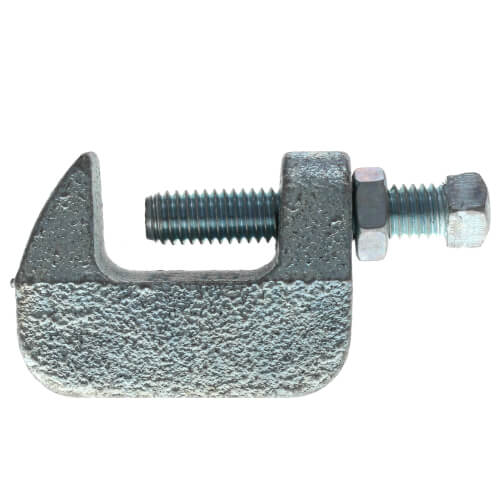

The EMPIRE INDUSTRIES 61G0038 is a 3/8" electro-galvanized wide top beam clamp made with a ductile iron body and hardened steel screw. It is designed to attach a hanger rod to the top or bottom flange of a beam or bar. It complies with Federal Specification A-A-1192A (Type# 19) and MSS SP-58 and SP-69 (Type# 19).

• 3/8" size
• Made of ductile iron
• Load capacity of 400 lbs.

Product Highlights

This electro-galvanized wide top beam clamp is suitable for use with 4 in pipes and has a 3/8-16 set screw.

Product Information

Standard Information

• Brand: EMPIRE INDUSTRIES
• Manufacturer Part Number: 61G0038
• Country of Origin: United States

Technical Specifications

• Size: 3/8"
• Pipe Size: 4"
• Max Load: 400 lbs.
• Finish: Electro-Galvanized
• Material: Ductile Iron
• Load Capacity: 400
• Rod Size: 3/8-16
• Series: 61 Series
• Suitable For Use With: 4 in Pipe
• Type: Wide Mouth
• Clamp Type: Wide & Top Jaw Clamp
• Maximum Flange Thickness: 1-1/4
• Maximum Flange Width: 2
• Standards: cULus Listed, FM Approved, MSS SP-58 & SP-69 (Type# 19), UL - U.L.C. Listed
• Manufacturer Part Number: 61G0038
• System of Measurement: Inch
