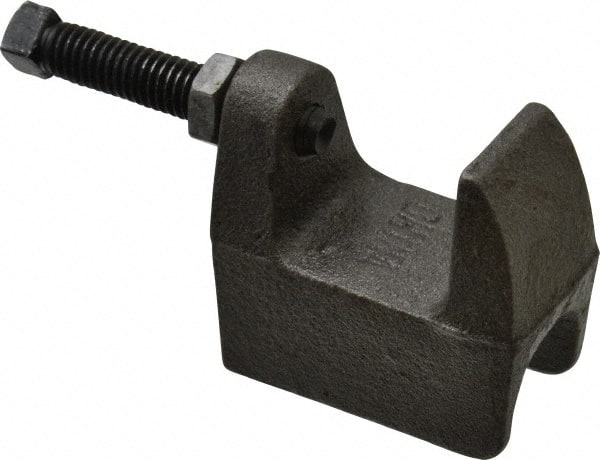

Empire Industries 61B0058 Wide and Top Jaw Beam Clamp (1-1/4 in Flange, 5/8 in Rod)

Product Description

Empire Industries 61B0058 is a wide and top jaw beam clamp made from ductile iron, with a maximum flange thickness of 1-1/4 in and designed to accept 5/8 in rod. It has an 800 lb rated load capacity and meets cULus listed, FM approved, MSS SP-58 and SP-69 (Type 19), and U.L.C. listing. The clamp is intended for attaching hanger rod to beam flanges in piping and mechanical support applications.

• Ductile iron wide and top jaw design with 1-1/4 in maximum flange thickness
• Accepts 5/8 in rod and is rated to 800 lb load capacity
• Meets cULus listed, FM approved, MSS SP-58 and SP-69 (Type 19), and U.L.C. listing

Product Highlights

Ductile iron wide/top jaw beam clamp, 1-1/4 in flange capacity, accepts 5/8 in rod, 800 lb rating, multiple safety standard listings

Product Information

Standard Information

• Brand: EMPIRE INDUSTRIES
• Manufacturer Part Number: 61B0058

Technical Specifications

• Brand: Empire Industries
• Manufacturer Part Number: 61B0058
• Clamp Type: Wide and top jaw clamp
• Material: Ductile iron
• Load Capacity (lb): 800
• Maximum Flange Thickness: 1-1/4 in
• Rod Size: 5/8 in
• Standards: cULus listed, FM approved, MSS SP-58 and SP-69 (Type 19), U.L.C. listed
• Series: 61 Series
• Finish: Plain
• Set Screw: 3/8-16
• Type: Wide Mouth
