Empire Industries 61B0050 Wide Top Beam Clamp (1/2 inches)

Product Description

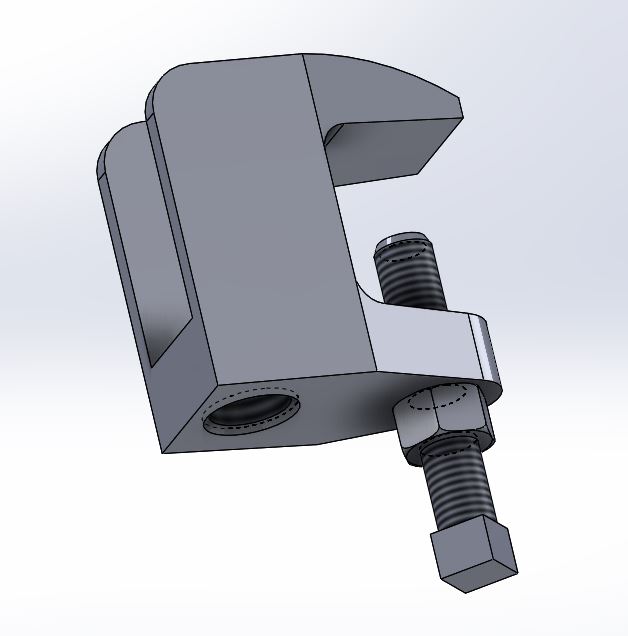

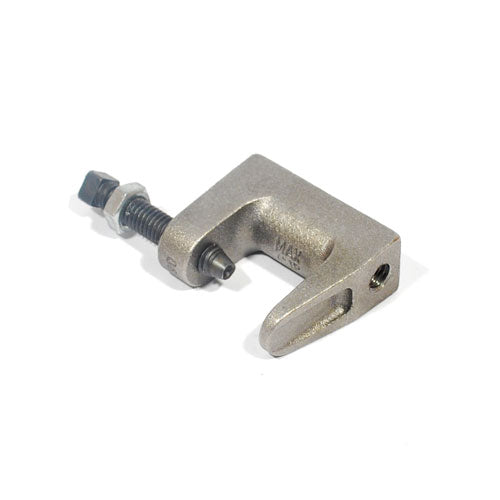

The Empire Industries 61B0050 is a wide top beam clamp for 1/2-inch hanger rod, constructed with a ductile iron body and a hardened steel screw. It is designed to attach a hanger rod to the top or bottom flange of a beam or bar and is suitable for use with 4-inch pipe. Approvals include UL/ULC listing for 3/8 and 1/2 (1/2 for 4-inch IPS max) and FM approval for 3/8. Finish is plain (black) and the clamp complies with Federal Specification A-A-1192A and MSS SP-58 and SP-69.

• Ductile iron body with hardened steel set screw for secure rod attachment
• Fits 1/2-inch rod (1/2-13), wide-mouth design with 7/8 in width; suitable for 4 in pipe
• UL/ULC listed for 3/8 and 1/2 (1/2 for 4 in IPS max), FM approved for 3/8; complies with A-A-1192A and MSS SP-58/SP-69

Product Highlights

Ductile iron wide-mouth beam clamp for 1/2 in rod; plain finish; UL/ULC listed and FM approved; maximum recommended load up to 1,130 lb.

Product Information

Standard Information

• Brand: EMPIRE INDUSTRIES
• Manufacturer Part Number: 61B0050

Technical Specifications

• Brand: Empire Industries
• Manufacturer: Empire Industries
• MPN: 61B0050
• Type: Wide Top Beam Clamp
• Series: 61 Series
• Size: 1/2 in
• Rod Size: 1/2-13
• Material: Ductile iron body with hardened steel screw
• Finish: Plain (black)
• Load Capacity: 750/1130 lb
• Max Recommended Load: 1,130 lb
• Approvals: UL/ULC listed for 3/8 and 1/2 (1/2 for 4" IPS max); FM approved for 3/8 only
• Compliance: Federal Specification A-A-1192A (Type 19); MSS SP-58; MSS SP-69
• Suitable For Use With: 4 in pipe
• Mounting: Attaches hanger rod to top or bottom flange of a beam or bar
• Width: 0.875 in
• Dimensions: 1.38 in L x 2.00 in H x 0.88 in W x 0.50 in D
• UPC: 663027039547
