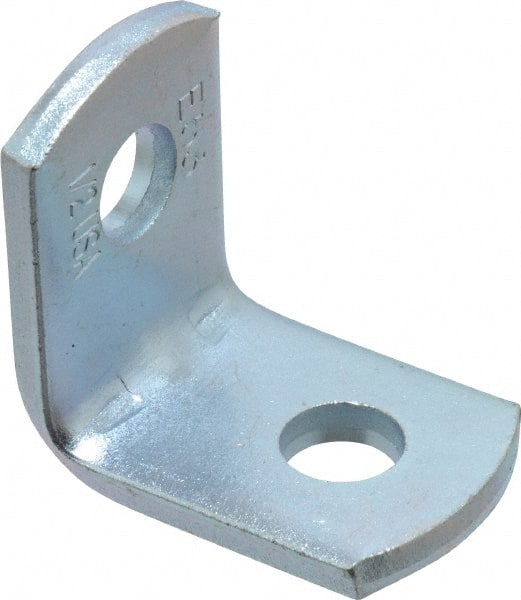

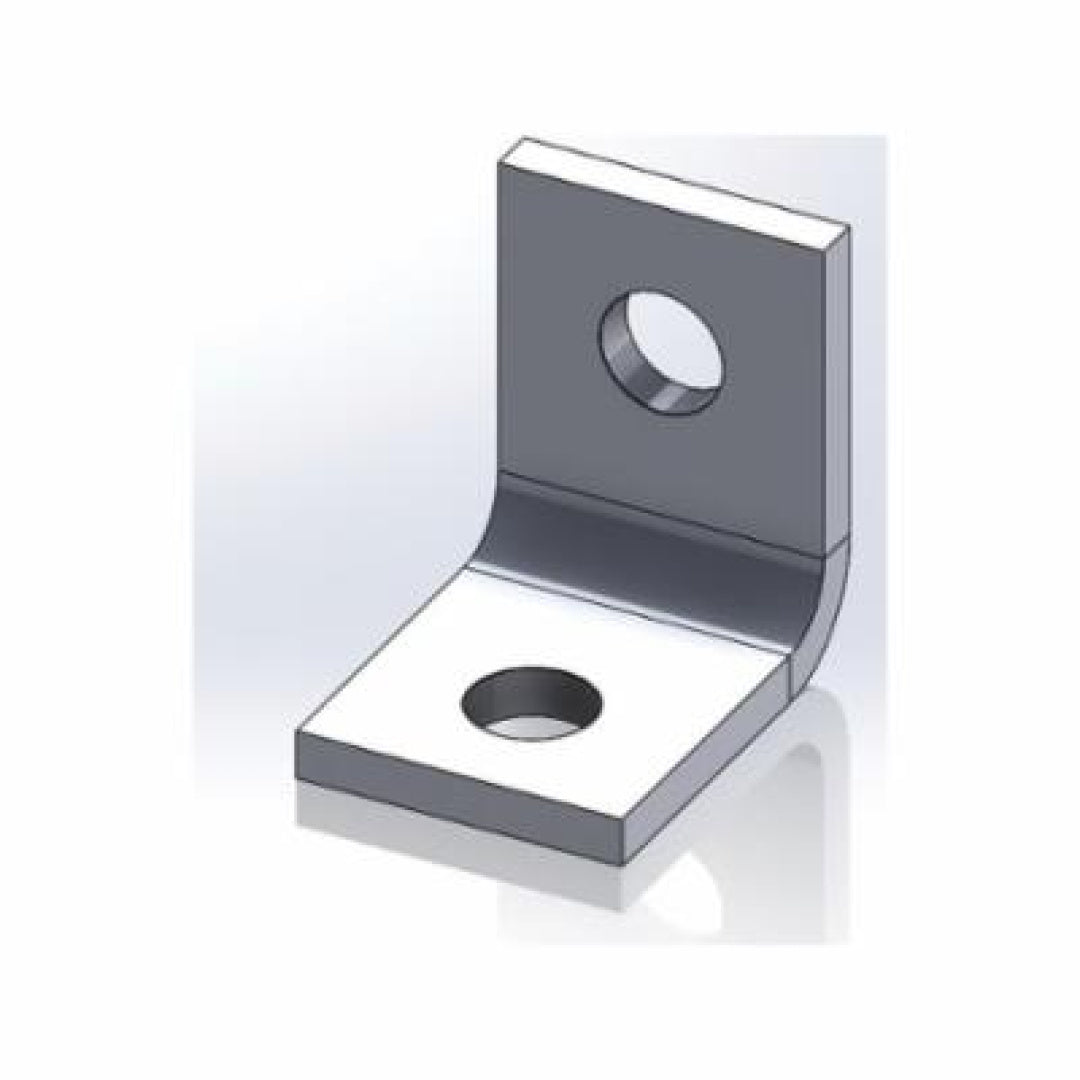

Empire Industries 53G0050 Angle Bracket 1/2-13 Rod (Angle)

Product Description

Empire Industries 53G0050 is an angle bracket for use with 1/2-13 hanger rod, providing a 560 lb load capacity. The FIG 53 bracket is constructed of carbon steel with an electro-galvanized finish and measures 1-1/2 in W x 2-1/8 in D x 2-1/8 in H. It is designed to attach hanger rod to the side of beams or walls and complies with federal and industry specifications.

• 560 lb load capacity for use with 1/2-13 hanger rod
• Carbon steel construction with electro-galvanized finish; dimensions 1-1/2 in W x 2-1/8 in D x 2-1/8 in H
• Series FIG 53 design for attaching hanger rod to the side of beams or walls; complies with Federal Specification WW-H-171-E (Type #35), A-A-1192 A (Type #34), MSS SP-58, and 7SP-69 (Type #34)

Product Highlights

FIG 53 carbon steel angle bracket, electro-galvanized finish, 560 lb capacity for 1/2-13 hanger rod

Product Information

Standard Information

• Brand: EMPIRE INDUSTRIES
• Manufacturer Part Number: 53G0050

Technical Specifications

• Brand: Empire Industries
• Manufacturer Part Number: 53G0050
• Series: FIG 53
• Material: Carbon steel
• Finish: Electro-Galvanized
• Rod Size: 1/2-13
• Load Capacity: 560 lb
• Dimensions: 1-1/2 in W x 2-1/8 in D x 2-1/8 in H
• Application: Attaching hanger rod to the side of beams or walls
• Standards/Approvals: Federal Specification WW-H-171-E (Type #35); A-A-1192 A (Type #34); MSS SP-58; 7SP-69 (Type #34)
• UNSPSC: 31162905
