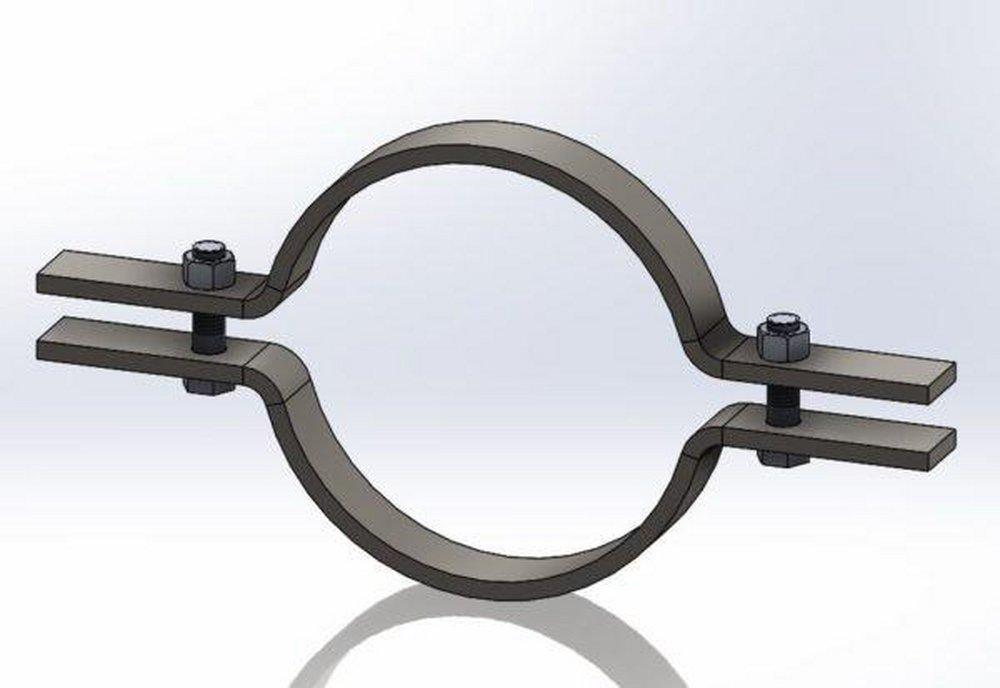

Empire Industries 50G0400 Figure 50 riser clamp 4 in.

Product Description

The EMPIRE INDUSTRIES 50G0400 Figure 50 standard riser clamp is designed for supporting and stabilizing vertical pipe runs. The plastic coating prevents pipe from contacting the clamp, reducing noise, vibration, and preventing electrolysis. It is made of carbon steel with an electro-galvanized finish. Complies with Federal Specification A-A-1192 A Type No 8 and WW-H-171-E Type No 8.

• Designed for supporting and stabilizing vertical pipe runs
• Plastic coating prevents pipe from coming in contact with the clamp
• Designed to reduce noise, vibration and prevent electrolysis between pipe and clamp

Product Highlights

Designed to support and stabilize vertical pipe runs, the Empire Industries riser clamp reduces noise and vibration.

Product Information

Standard Information

• Brand: EMPIRE INDUSTRIES
• Manufacturer Part Number: 50G0400

Technical Specifications

• Bolt Diameter: 1/2 in
• Finish: Electro-Galvanized
• Load Capacity: 810 lb
• Material: Carbon Steel
• Outside Diameter: 4-1/2 in
• Pipe Size: 4 in
• Series: 50-G
• Type: Standard
• Manufacturer: EMPIRE INDUSTRIES
• Size: 4"
• Application: Pipe
• Coating: Electrogalvanized
• Collection: Figure 50
• MSS: MSS SP-58, MSS SP-69 Type 8
• UL Listed: Yes
• Clamp Type: Riser
• Nominal Pipe Size: 4in
• Coating/Finish: Electro Galvanized
