Empire Industries 50CTI0100 Riser Clamp Copper Gard Import 1 inches

Product Description

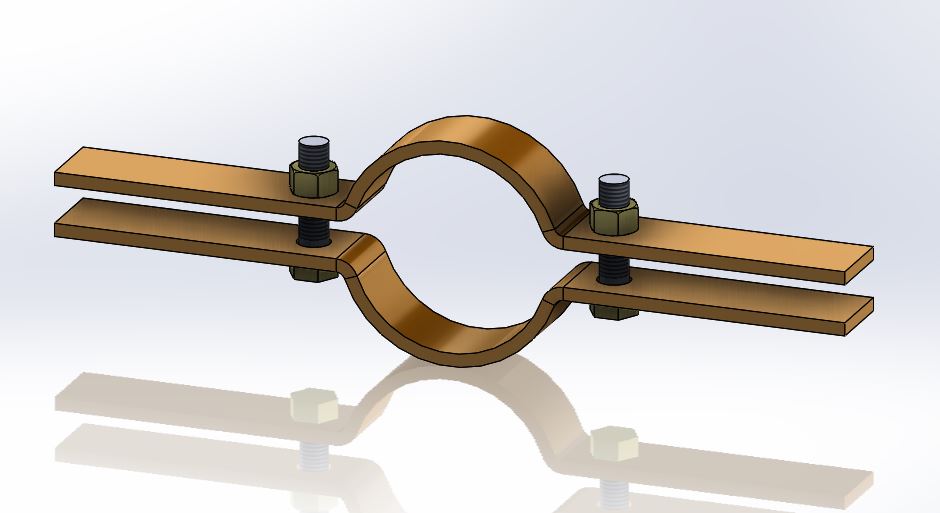

The Empire Industries 50CTI0100 riser clamp is designed for supporting and stabilizing vertical tubing runs. It fits a 1 in pipe and features a 1/4 in bolt diameter. The clamp is constructed from carbon steel with an epoxy coated (Copper-Gard) finish and measures 8-3/4 in L.

• Designed for supporting and stabilizing vertical tubing runs
• Complies with Federal Specification WW-H-171-E (Type # 8)
• A-A-1192 A (Type # 8)

Product Highlights

This riser clamp is suitable for providing stable support to vertical tubing, with a carbon steel build and protective epoxy coating.

Product Information

Standard Information

• Brand: EMPIRE INDUSTRIES
• Manufacturer Part Number: 50CTI0100

Technical Specifications

• Bolt Diameter: 1/4 in
• Finish: Epoxy Coated (Copper-Gard)
• Load Capacity: 250 lb
• Material: Carbon Steel
• Outside Diameter: 1-1/8 in
• Pipe Size: 1 in
• Series: FIG 50CTI
• Manufacturer: EMPIRE INDUSTRIES
• Type: Riser Clamp
• Nominal Pipe Size: 1in
• Clamp Type: Riser
