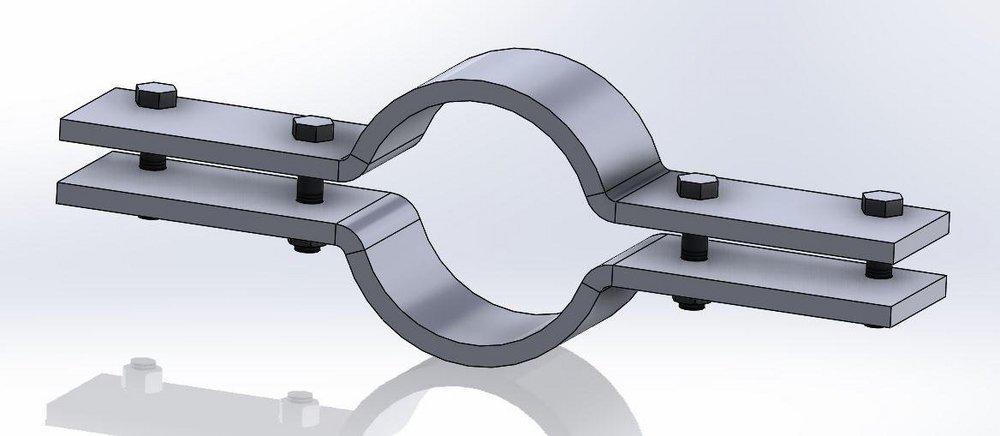

Empire Industries 50B0600 Figure 50 Riser Clamp 6 in

Product Description

Empire Industries 50B0600 is a Figure 50 riser clamp designed to support and stabilize vertical pipe runs for 6 in nominal pipe. The clamp is carbon steel and available in a plastic-coated version with zinc-plated hardware that prevents pipe-to-clamp contact, reduces noise and vibration, and prevents electrolysis. It fits pipe with a 6-5/8 in outside diameter, uses 1/2 in bolts, and has a rated load capacity of 1600 lb.

• Plastic-coated carbon steel construction with zinc-plated hardware to prevent pipe contact and electrolysis
• Fits 6 in nominal pipe (6-5/8 in outside diameter); 1/2 in bolt diameter
• Rated load capacity 1600 lb; Figure 50 riser clamp for supporting and stabilizing vertical pipe runs; UL/ULC listed and meets MSS and federal specifications

Product Highlights

Riser clamp for 6 in pipe with plastic coating option, 1600 lb capacity, and compliance with MSS and federal standards

Product Information

Standard Information

• Brand: EMPIRE INDUSTRIES
• Manufacturer Part Number: 50B0600
• Country of Origin: US

Technical Specifications

• Brand: Empire Industries
• Manufacturer Part Number: 50B0600
• Series: Figure 50
• Clamp Type: Riser Clamp
• Nominal Pipe Size: 6 in
• Outside Diameter: 6-5/8 in (6.6250 in)
• Material: Carbon Steel
• Coating/Finish: Plastic coating with zinc-plated hardware (plastic-coated option); plain finish available
• Bolt Diameter: 1/2 in
• Load Capacity: 1600 lb
• Length: 15-3/8 in (15.375 in)
• Weight: 3.72 lb
• UL Listed: Yes
• Certifications/Approvals: Complies with Federal Specification WW-H-171-E (Type 8), A-A-1192 A (Type 8); MSS SP-58 and MSS SP-69 (Type 8); UL/ULC listed
• Country of Origin: US
• Alternate Part Numbers: E50B0600 / 4354561
• Corrosion Resistant Option: Stainless steel option recommended for corrosive environments
