Empire Industries 428KTHDG0300 Adjustable Saddle Support Kit 3 inches DIP/IPS

Product Description

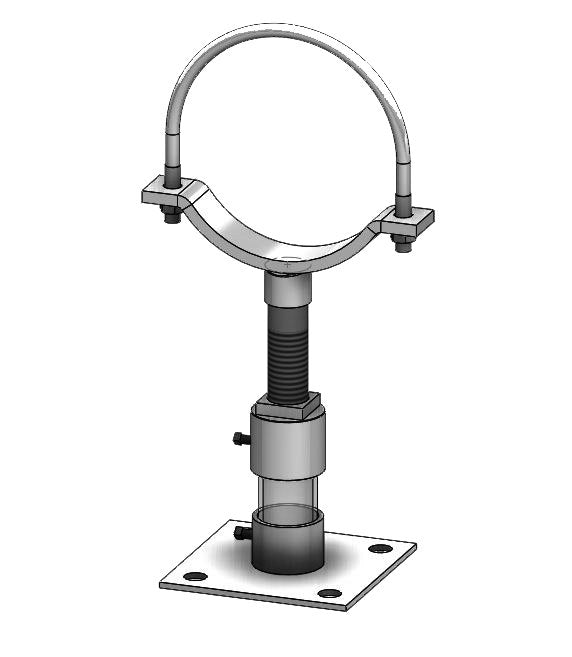

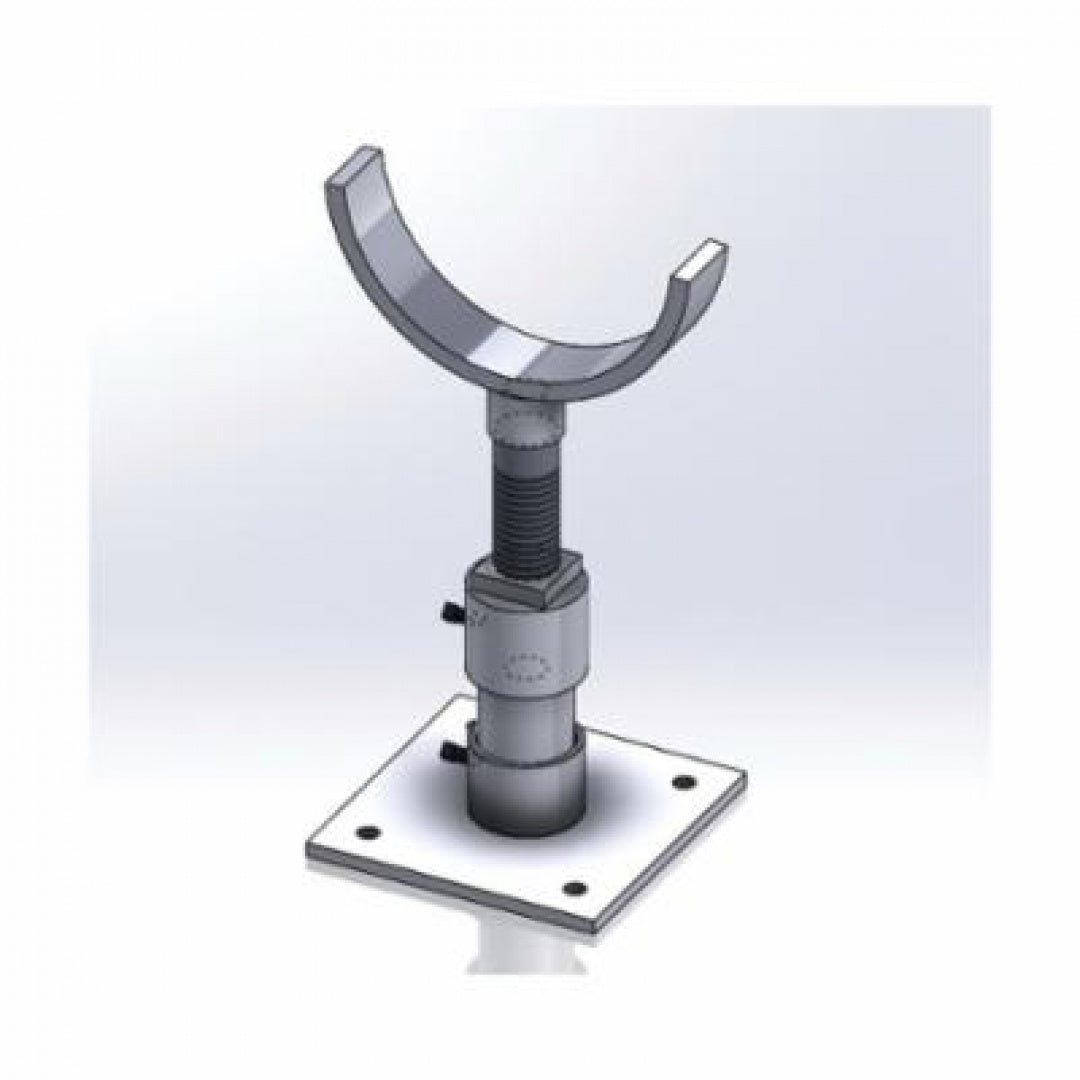

The EMPIRE INDUSTRIES 428KTHDG0300 adjustable pipe saddle support kit is designed to support pipe horizontally. The straight cut pipe thread on the nipple provides up to 4-1/2 inches of vertical adjustability. Saddles accommodate ductile iron pipe and IPS, distributing the pipe load across a broader bearing area than simple pipe clamps.

• Designed to support pipe horizontally
• Straight cut pipe thread on nipple provides up to 4-1/2 in of vertical adjustability
• Saddles accommodate ductile iron pipe and IPS

Product Highlights

This adjustable pipe saddle is ideal for supporting pipe on structural steel, concrete, or floor-mounted supports.

Product Information

Standard Information

• Brand: EMPIRE INDUSTRIES
• Manufacturer Part Number: 428KTHDG0300

Technical Specifications

• Pipe Size: 3 in
• Series: FIG 428KT
• Type: Adjustable Pipe Saddle
• Manufacturer: EMPIRE INDUSTRIES
• Finish: Hot-Dip Galvanized
• Movement: Fixed
• Height: Adjustable
• Standard: MSS SP-58
