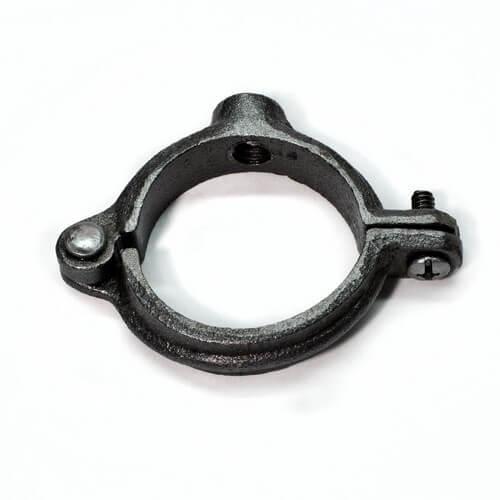

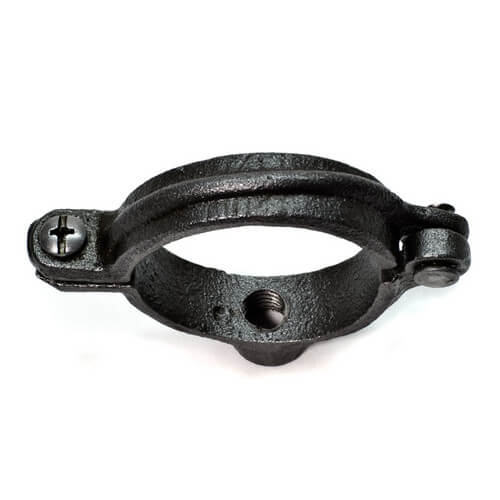

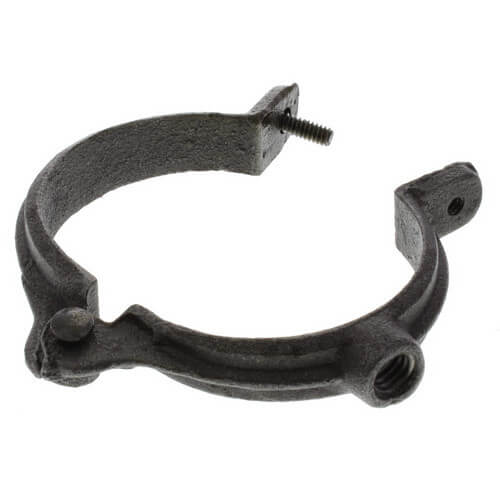

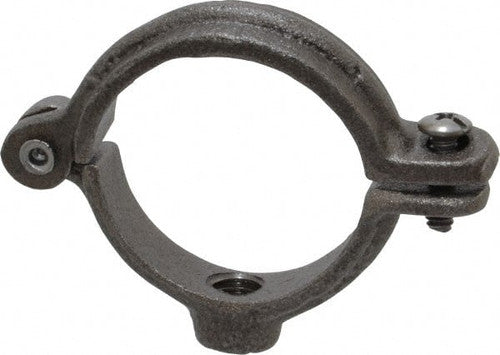

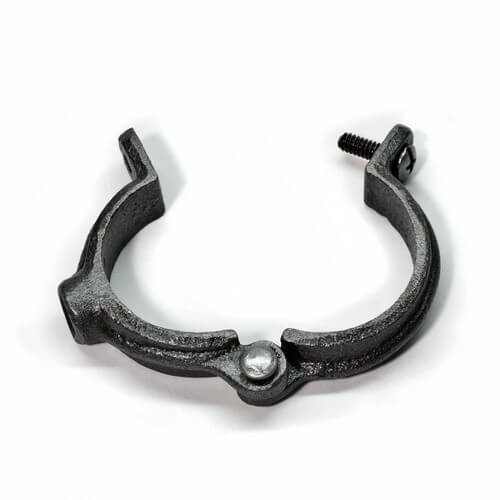

Empire Industries 41HB0125 Hinge Split Ring 1-1/4 inches

Product Description

The EMPIRE INDUSTRIES 41HB0125 hinge split ring is designed for the suspension of non-insulated stationary pipe lines horizontally and vertically. It complies with Federal Specification WWH-171-E (Type# 25), A-A-1192A (Type# 12), Manufacturers’ Standardization Society SP-58 and MSS SP-69 (Type# 12).

• Malleable Iron construction
• Designed for the suspension of non-insulated stationary pipe lines
• Complies with Federal Specifications

Product Highlights

This split ring hanger is ideal for supporting stationary pipe lines. It is made from malleable iron and supports a max load of 180 lbs.

Product Information

Standard Information

• Brand: EMPIRE INDUSTRIES
• Manufacturer Part Number: 41HB0125

Technical Specifications

• Manufacturer: EMPIRE INDUSTRIES
• Size: 1-1/4"
• Pipe Size: 1.660" (O.D)
• Material: Malleable Iron
• Finish: Plain
• Max Load: 180 lbs
• Rod Diameter: 3/8"
• Product Type: Split Ring Hanger
• Rod Size: 3/8 in
• Nominal Pipe Size: 1-1/4
• Load Capacity (Lb.): 180.00
• Pipe Outside Diameter (Decimal Inch): 1.6600
