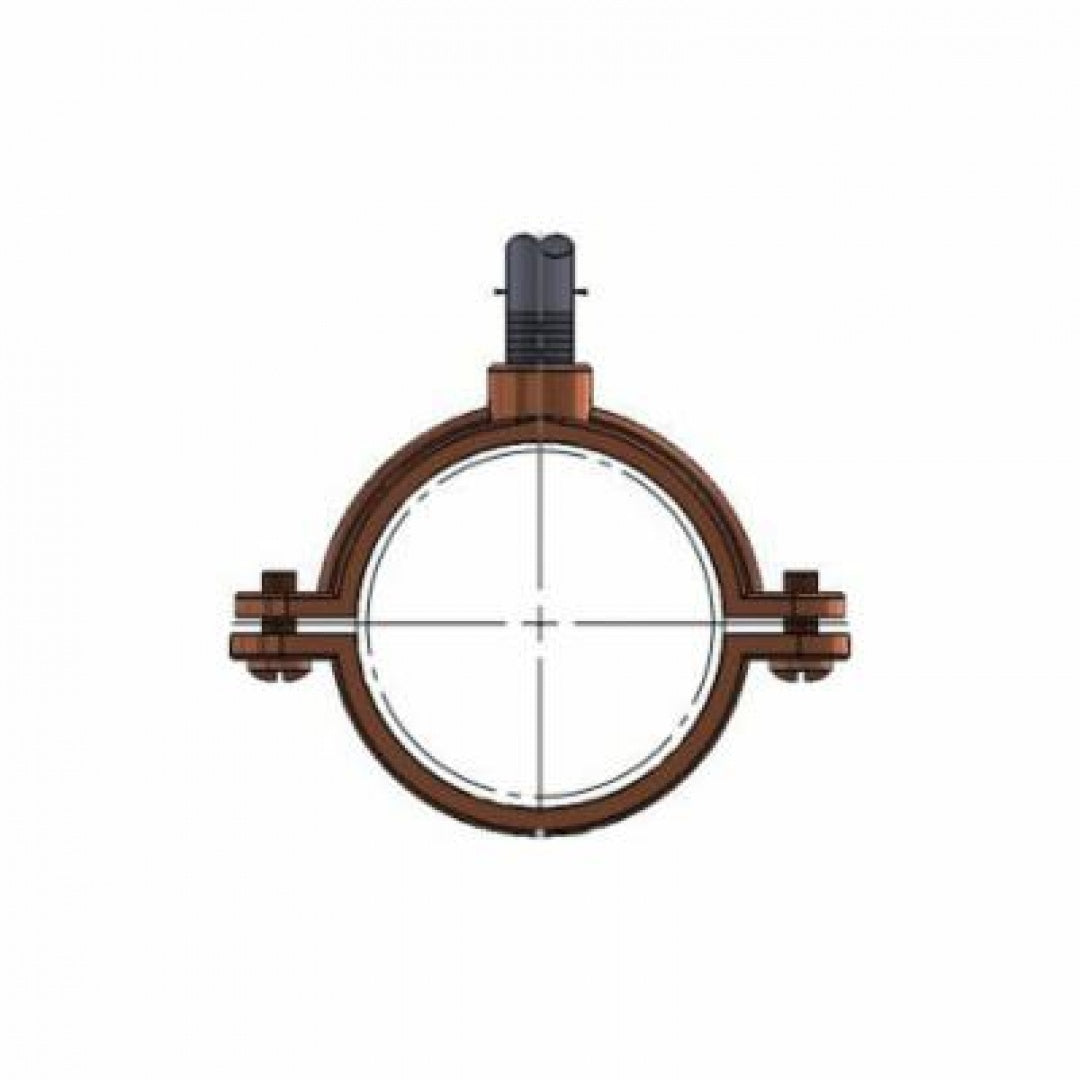

EMPIRE INDUSTRIES 41CT0100 Split Ring Copper Gard Import 1 Bolt Thread

Product Description

The EMPIRE INDUSTRIES 41CT0100 is a split ring copper gard import designed for the support and suspension of copper tubing systems. This product is suitable for both horizontal and vertical orientations, ensuring secure placement for non-insulated stationary copper tubes.

• Supports 1 inch pipe/tube with bolt thread.
• Made from malleable iron with a copper epoxy coating.
• Complies with several federal specifications for quality assurance.

Product Highlights

This split ring extension hanger provides reliable support for copper tubing and is ideal for plumbing and HVAC applications.

Product Information

Standard Information

• Type: Bolt Thread
• Manufacturer: EMPIRE INDUSTRIES

Technical Specifications

• Pipe/Tube Size: 1 inch
• Rod Size: 3/8-16
• Load Capacity: 180 lb
• Length: 2-1/2 inches
• Dimensions: 1-5/8 inches H
• Material: Malleable Iron
• Finish: Copper Epoxy Coated (Copper-Gard)
• Series: FIG 41CT
• Suitable For Use With: 1-1/8 inches OD Copper Tube
