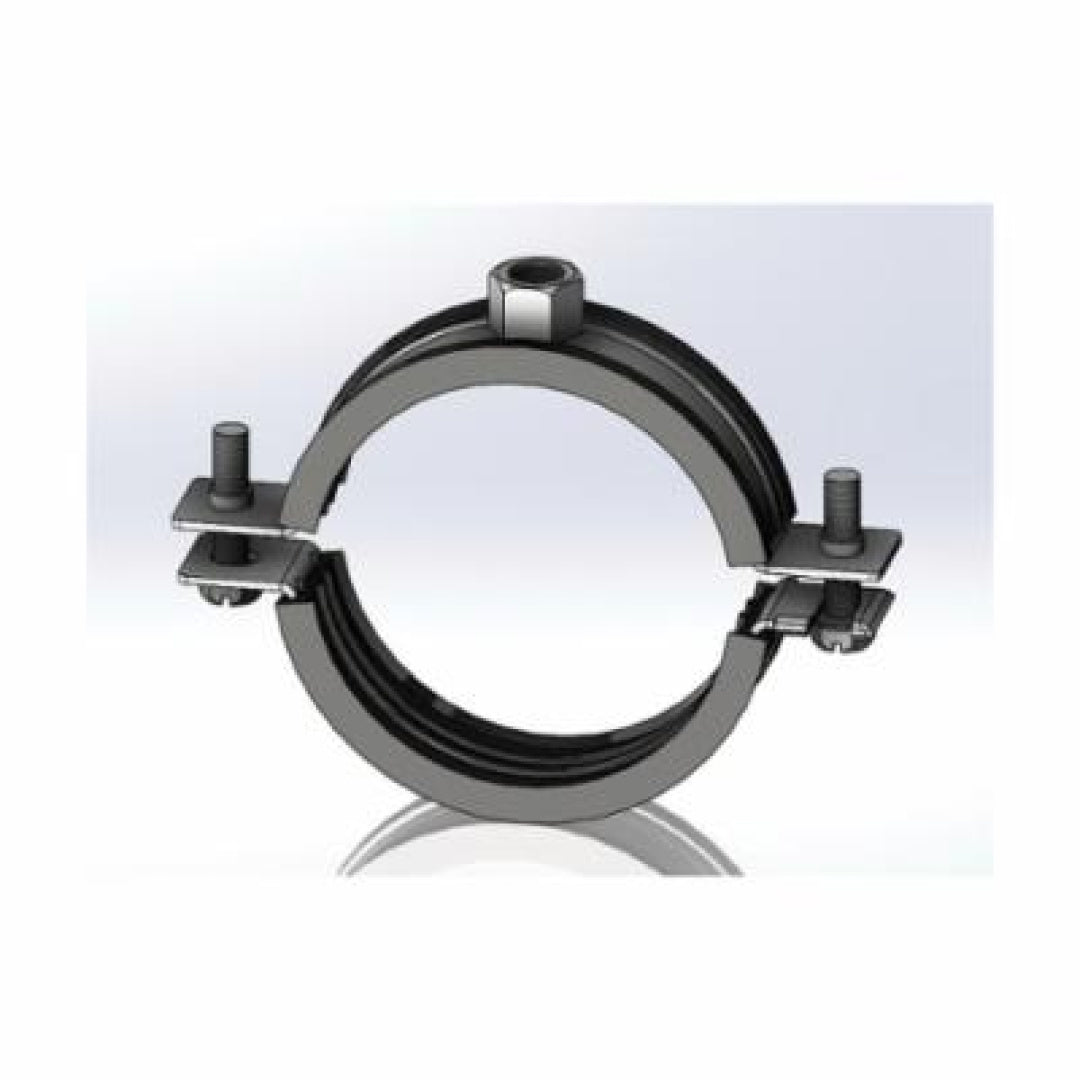

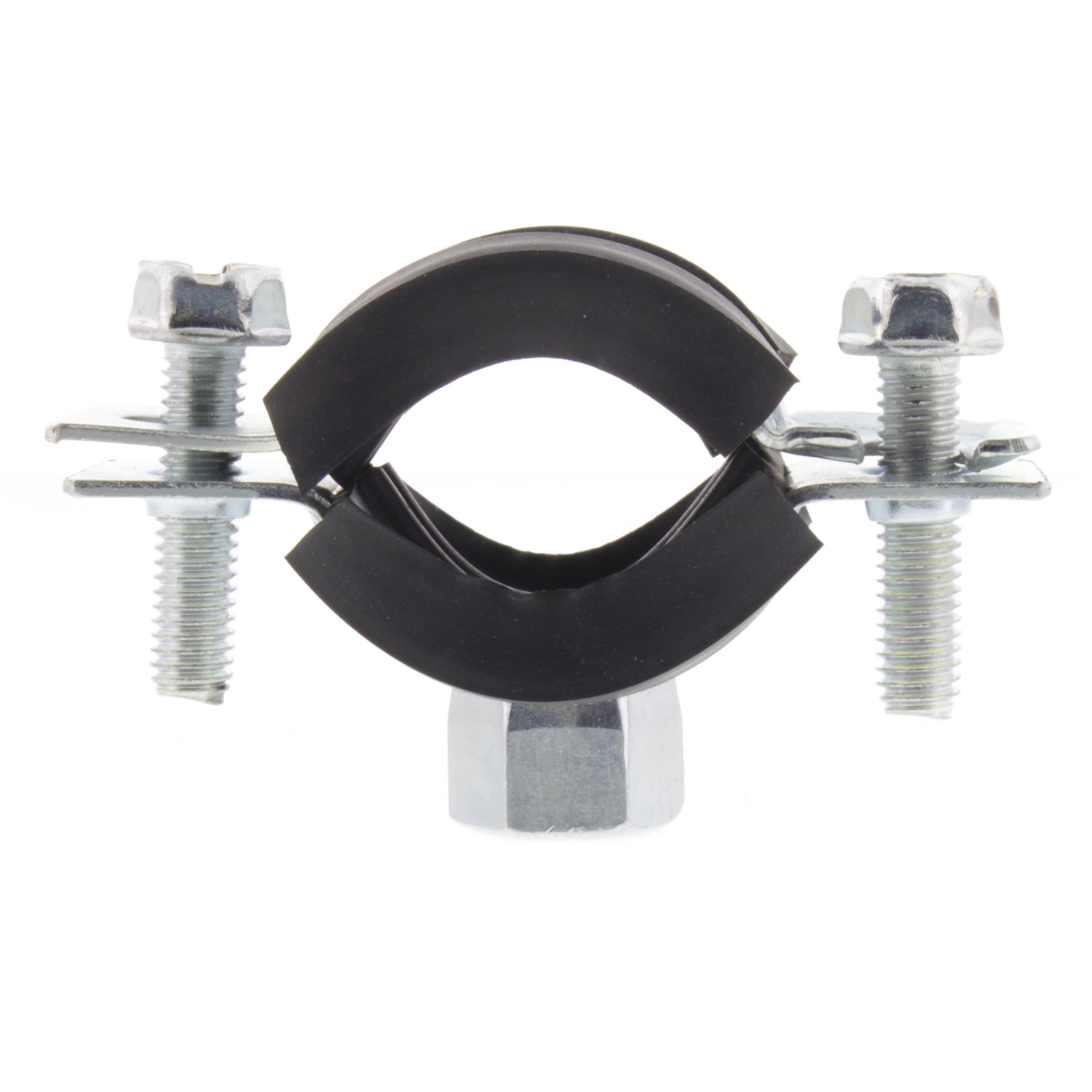

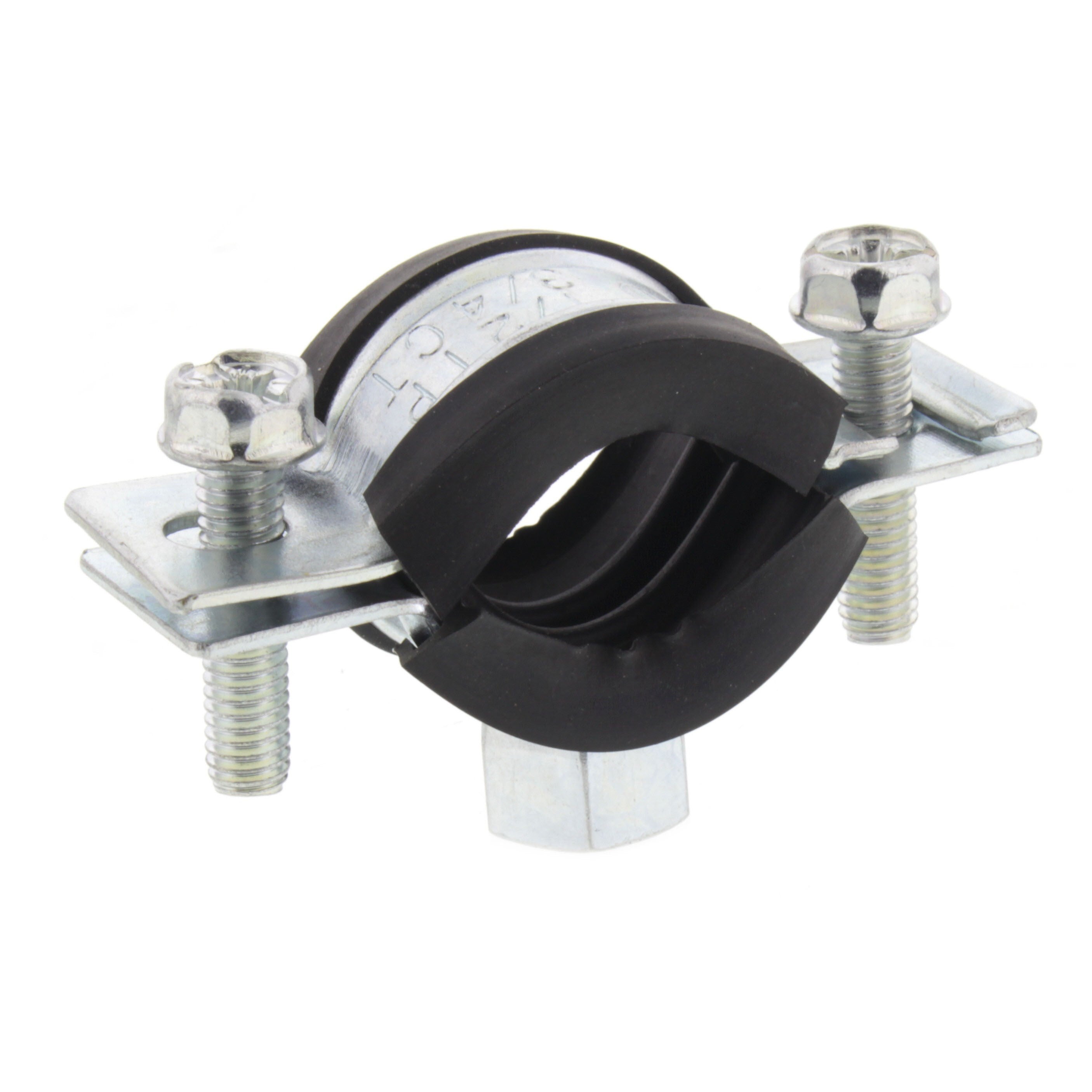

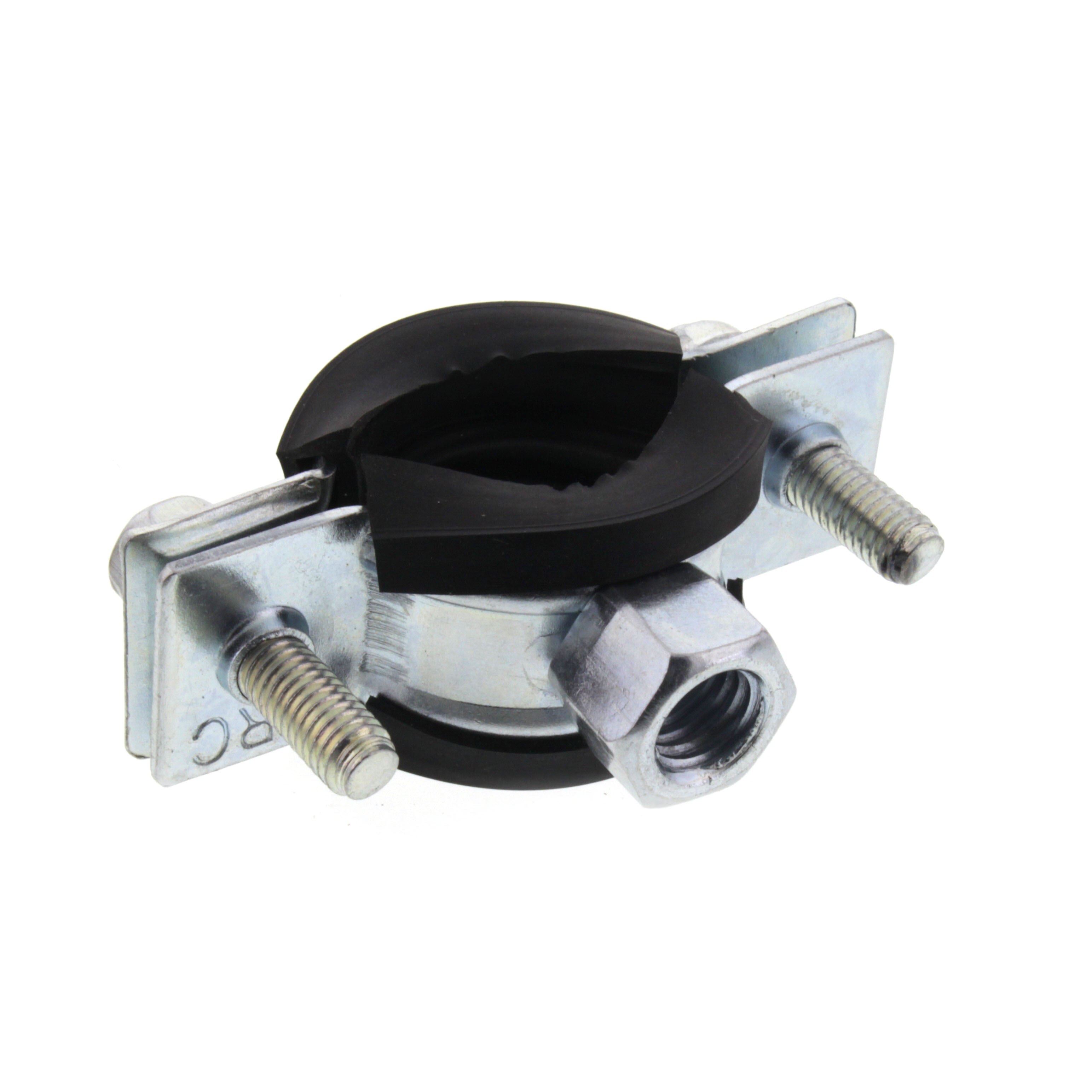

Empire Industries 40HS0004 Handy Split Ring Hanger (1/2 IPS x 3/4 CTS)

Product Description

Empire Industries 40HS0004 is a handy split ring hanger for suspending insulated and non-insulated pipeline runs. Constructed of carbon steel with an electro-galvanized finish and a UV-resistant EPDM insulation liner, it fits 1/2 inch IPS and 3/4 inch CTS pipe (0.675 in O.D.) and uses 3/8-16 rod. The unit provides a rated load capacity of 180 lb and a temperature range of -50°F to 230°F, complying with applicable MSS and federal specifications.

• Carbon steel construction with electro-galvanized finish and EPDM insulation liner for noise reduction
• Fits 1/2 in IPS x 3/4 in CTS pipe (0.675 in O.D.), uses 3/8-16 rod; rated load 180 lb
• Handy split hinge allows single-handed installation; temperature range -50°F to 230°F; meets WW-H-171-E, A-A-1192A, MSS SP-58 and MSS SP-69

Product Highlights

Electro-galvanized carbon steel split ring with EPDM liner, fits 1/2 IPS and 3/4 CTS, 180 lb capacity

Product Information

Standard Information

• Brand: EMPIRE INDUSTRIES
• Manufacturer Part Number: 40HS0004

Technical Specifications

• Brand: Empire Industries
• Manufacturer Part Number: 40HS0004
• Series: FIG 40HS Handy
• Material: Carbon steel
• Finish: Electro-galvanized
• Liner Material: EPDM insulation liner (UV resistant)
• Pipe/Tube Size: 1/2 in IPS x 3/4 in CTS
• Pipe Outside Diameter: 0.675 in
• Rod Size: 3/8 in
• Rod Thread: 3/8-16
• Load Capacity: 180 lb
• Overall Length: 2-9/16 in
• Height: 1-3/4 in
• Operating Temperature Range: -50°F to 230°F
• Service / Use: Suspension of insulated and non-insulated stationary pipe lines horizontally or vertically
• Hinge Type: Handy split hinge for single-handed installation
• Approvals / Compliance: Complies with WW-H-171-E (Type #25), A-A-1192A (Type #12), MSS SP-58 and MSS SP-69 (Type #12)
• Weight (listed): 0.14 lb
