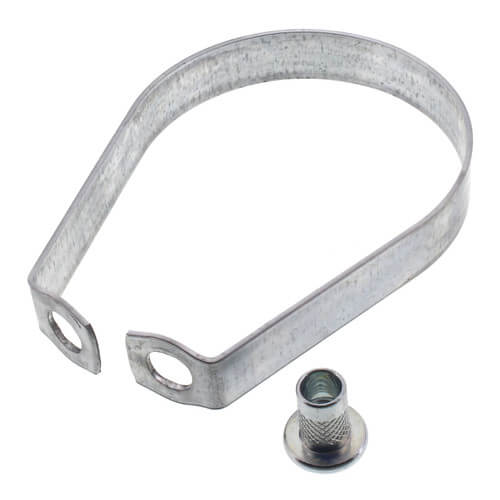

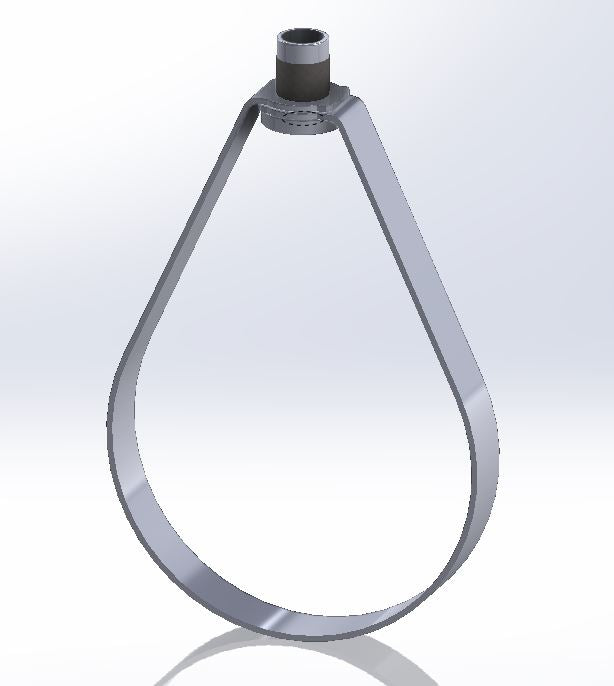

Empire Industries 310NF0300 Em-Lok Adjustable Swivel Ring NFPA 3 inch

Product Description

The Empire Industries 310NF0300 Em-Lok Adjustable Swivel Ring is a reliable solution for suspending non-insulated stationary pipe lines. This pipe support is specifically designed for use with sprinkler piping and complies with NFPA standards. The ring is produced with minimum rod sizes allowed by the NFPA guidelines.

• 3 inch size for standard applications
• Constructed from pre-galvanized carbon steel
• Maximum load capacity of six hundred pounds

Product Highlights

This adjustable swivel ring ensures secure and efficient support for piping in various installations.

Product Information

Standard Information

• Size: 3 inches
• Material: Pre-Galvanized Carbon Steel

Technical Specifications

• Pipe Size: 3.5 inches (O.D)
• Finish: Pre-Galvanized
• Max Load: 600 lbs.
• Load Capacity: 600 lbs.
• Rod Size: 3/8 inch
• Series: FIG 310 Emlok
• Suitable For Use With: 3.5 inches O.D. Pipe
• Type: Adjustable
• Sub Type: Em-Lok Adjustable Swivel Ring Hanger
• Figure: 310NF
• Length: 6.25 inches
• Style: Emlock
• Threaded Rod Size: 3/8-16
