Empire Industries 11SS1600 Adjustable Standard Clevis Hanger 16 in Pipe, 1 in Rod, 4600 lb Load

Product Description

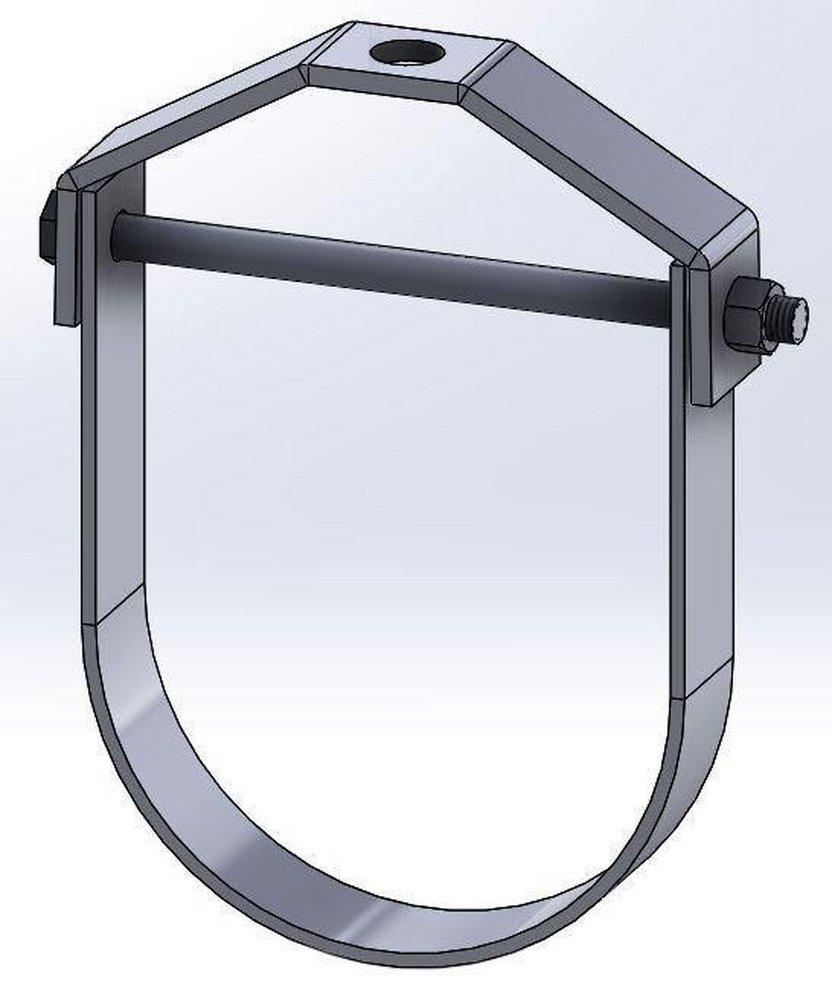

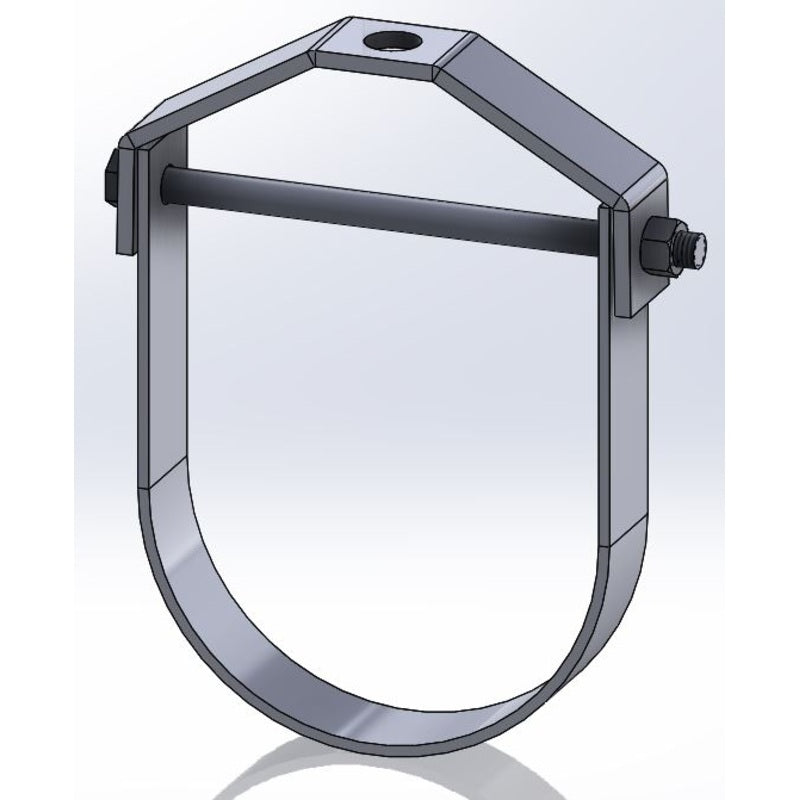

The EMPIRE INDUSTRIES 11SS1600 adjustable standard clevis hanger is designed for the suspension of non-insulated, stationary pipe lines. It fits a 16 in pipe and 1 in rod with a 4600 lb load capacity. Constructed from 304 stainless steel, it is suitable for corrosive environments and conforms to MSS SP-58 and MSS SP-69 standards.

• Designed for the suspension of non-insulated, stationary pipe lines
• Upper locknut must be tightened securely to assure proper hanger performance
• Stainless steel hangers are recommended for applications where protection from a corrosive environment is required

Product Highlights

This adjustable standard clevis hanger is made from 304 stainless steel and supports up to 4600 lbs.

Product Information

Standard Information

• Brand: EMPIRE INDUSTRIES
• Manufacturer Part Number: 11SS1600

Technical Specifications

• Load Capacity: 4600 lb
• Material: 304 Stainless Steel
• Pipe Size: 16 in
• Rod Size: 1 in
• Series: 11 Series
• Suitable For Use With: Non-Insulated Stationary Pipe Line
• Type: Adjustable Standard
• FM Approved: Yes
• MSS: MSS SP-58, MSS SP-69
• Material Type: T304
• UL Listed: Yes
• Pipe OD: 16.0
