Empire Industries 11GI0100 Zinc-Plated Clevis Pip E Hanger

Product Description

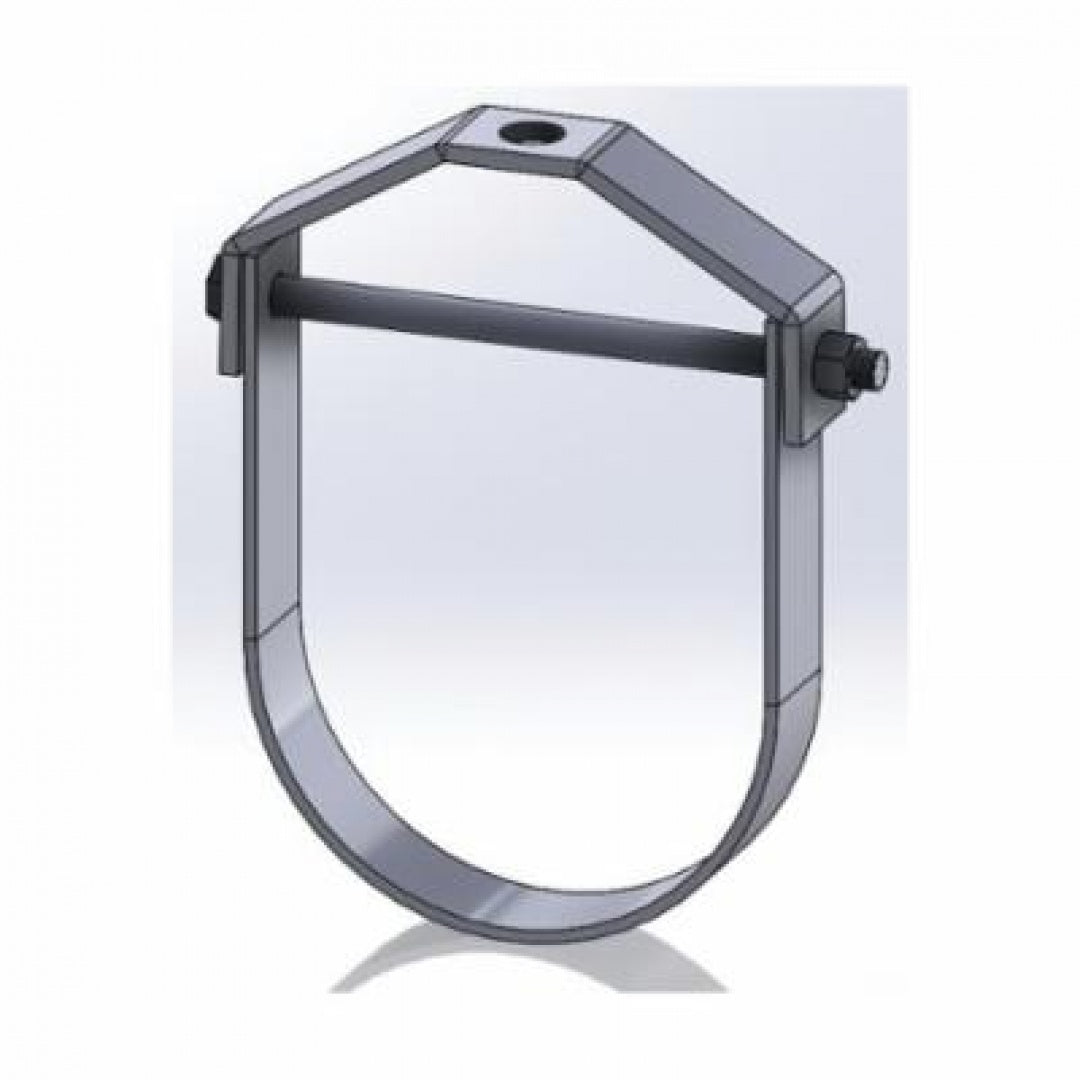

The EMPIRE INDUSTRIES 11GI0100 is a zinc-plated clevis pipe hanger designed for the suspension of non-insulated, stationary pipe lines. It conforms to Federal Specification A-A-1192 A (Type # 1), WW-H-171-E (Type # 1), FM Approved and MSS SP 58/69 (Type # 1). This adjustable standard hanger is part of the FIG 11 series.

• Designed for suspension of non-insulated, stationary pipe lines
• Complies with Federal Specification A-A-1192 A (Type # 1)
• Adjustable Standard

Product Highlights

Zinc-plated clevis pipe hanger for suspending non-insulated pipes, adhering to multiple industry standards and featuring an adjustable design.

Product Information

Standard Information

• Brand: EMPIRE INDUSTRIES
• Manufacturer Part Number: 11GI0100

Technical Specifications

• Finish: Galvanized
• Load Capacity: 730 lb
• Material: Carbon Steel
• Pipe Size: 1 in
• Rod Size: 3/8 in
• Series: FIG 11
• Suitable For Use With: 1.315 in OD Pipe
• Type: Adjustable Standard
