Empire Industries 11G0600 Adjustable Standard Clevis Hanger 6 in Pipe 3/4 in Rod Replacement MPN

Product Description

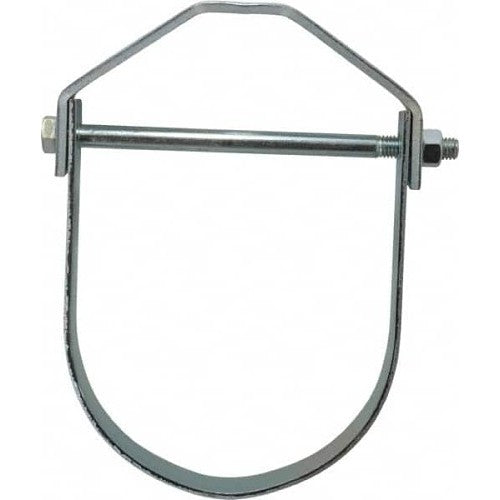

The Empire Industries 11G0600 adjustable standard clevis hanger is made for holding non-insulated, stationary pipe lines. It can hold a pipe size of six inches and uses a three-quarter inch rod. The hanger supports a maximum load capacity of one thousand nine hundred forty pounds. Built from carbon steel and finished with an electro-galvanized surface, this clevis hanger is part of the 11 Series.

• Designed for non-insulated, stationary pipe lines
• Add a spacer sleeve over the cross bolt for sizes twenty inches and larger
• Secure the upper locknut for optimal performance

Product Highlights

The Empire 11G0600 is ideal for use with stationary piping systems, ensuring stability and safety.

Product Information

Standard Information

• Finish: Electro-Galvanized
• Load Capacity: 1940 lb

Technical Specifications

• Material: Carbon Steel
• Pipe Size: 6 in
• Rod Size: 3/4 in
• Series: 11 Series
• Suitable For Use With: Non-Insulated Stationary Pipe Line
• Type: Adjustable Standard
• Application: Non-Insulated Pipes, Stationary Piping
• Coating: Electrogalvanized
• Diameter - Outside: 6-5/8 in
• FM Approved: Yes
• Height: 10-1/8 in
• MSS: MSS SP-58, MSS SP-69
• Product Type: Clevis Hanger
• Schedule Class: Standard
• UL Listed: Yes
• Work Load Limit: 1940 lb
