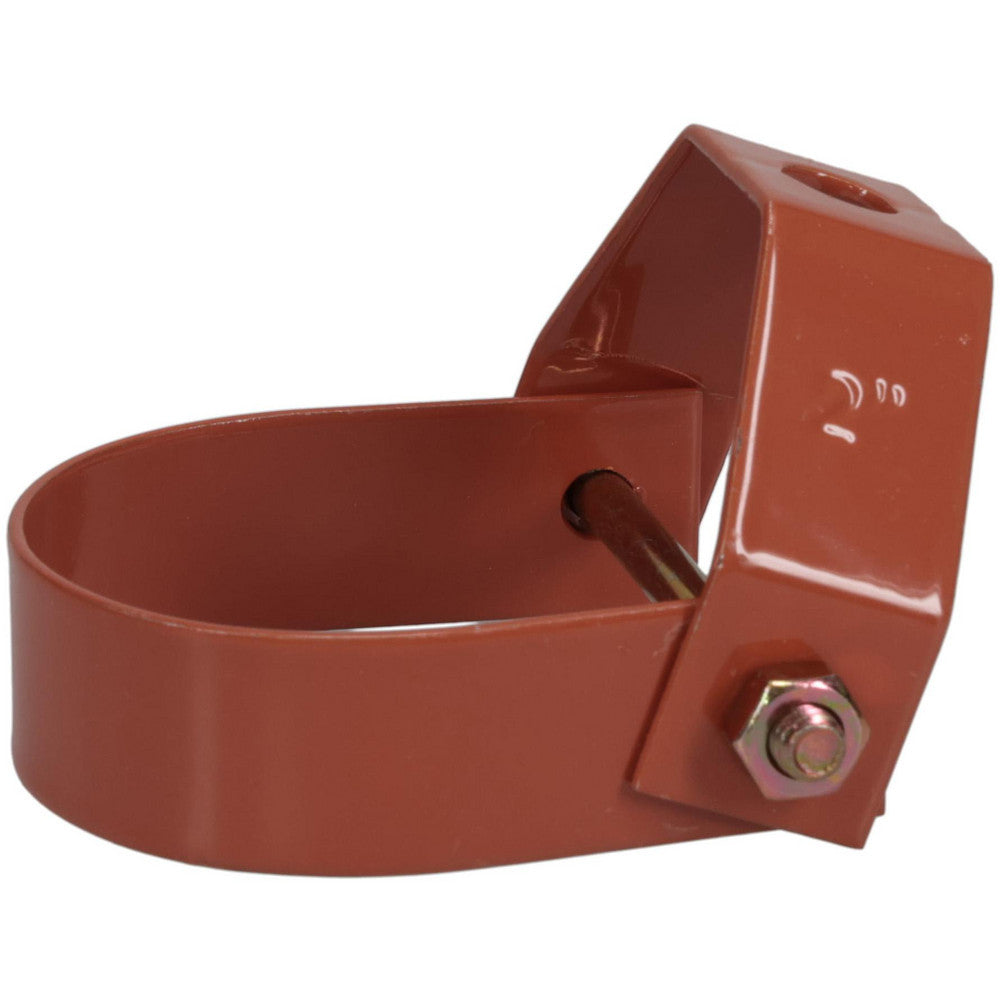

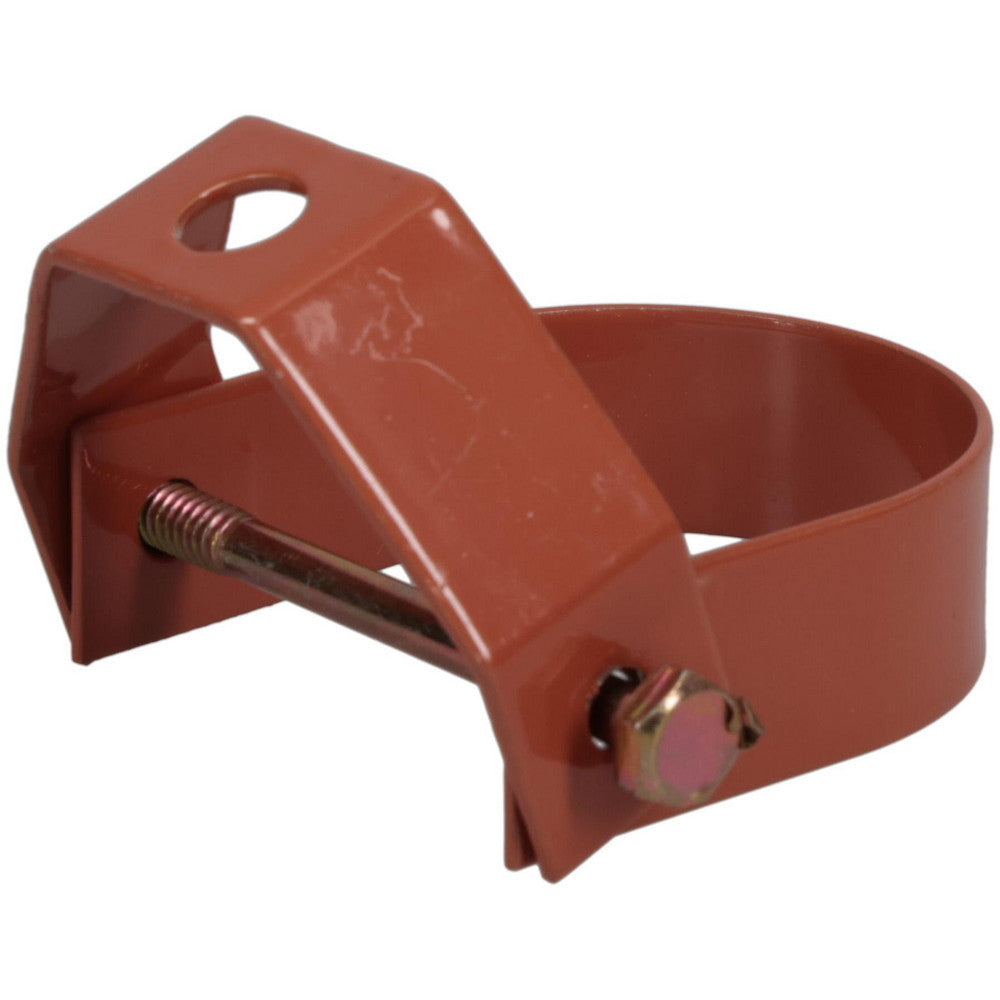

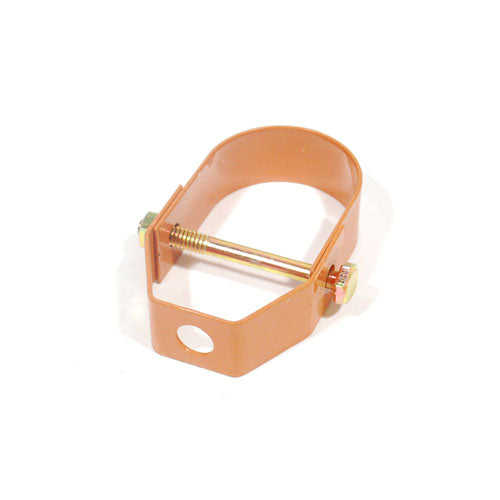

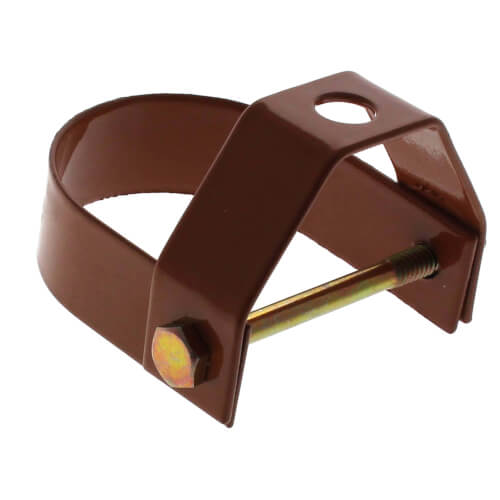

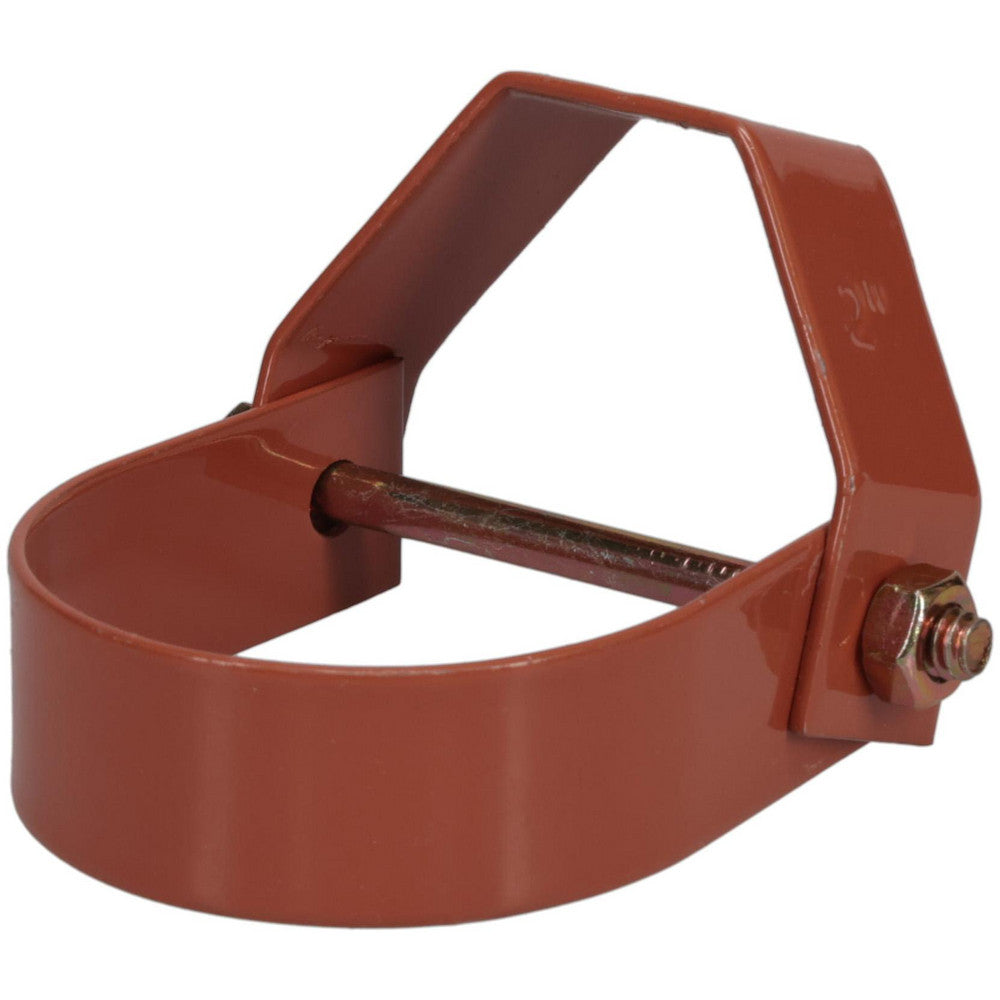

Empire Industries 110CTI0200 Clevis Hanger 2 inches

Product Description

The Empire Industries 110CTI0200 is a two-inch clevis hanger made for suspending stationary copper tubing. The product uses a copper epoxy coating over electro-galvanized steel to prevent corrosion. It meets various federal specifications ensuring safety and reliability.

• Features a copper epoxy coated finish for corrosion protection.
• Designed specifically for the suspension of stationary copper tubing.
• Complies with Federal Specifications WW-H-171-E (Type# 1), A-A-1192 A (Type# 1), and MSS SP-58 and SP-69 (Type# 1).

Product Highlights

This clevis hanger provides strong support for copper tubing in various applications.

Product Information

Standard Information

• Size: 2 inches
• Material: Carbon Steel

Technical Specifications

• Max Load: 250 lbs.
• Finish: Copper Epoxy
• Pipe Size: 2.125 inches OD
• Type: Clevis Hanger
• Figure: 110CTI
• Length: 4.00 inches
• Rod Size: 3/8 inch
• Series: FIG 110CTI
• Suitable For Use With: 2-1/8 inches OD Pipe
• Product Type: Adjustable Clevis Hanger
• Load Capacity: 250 lbs.
