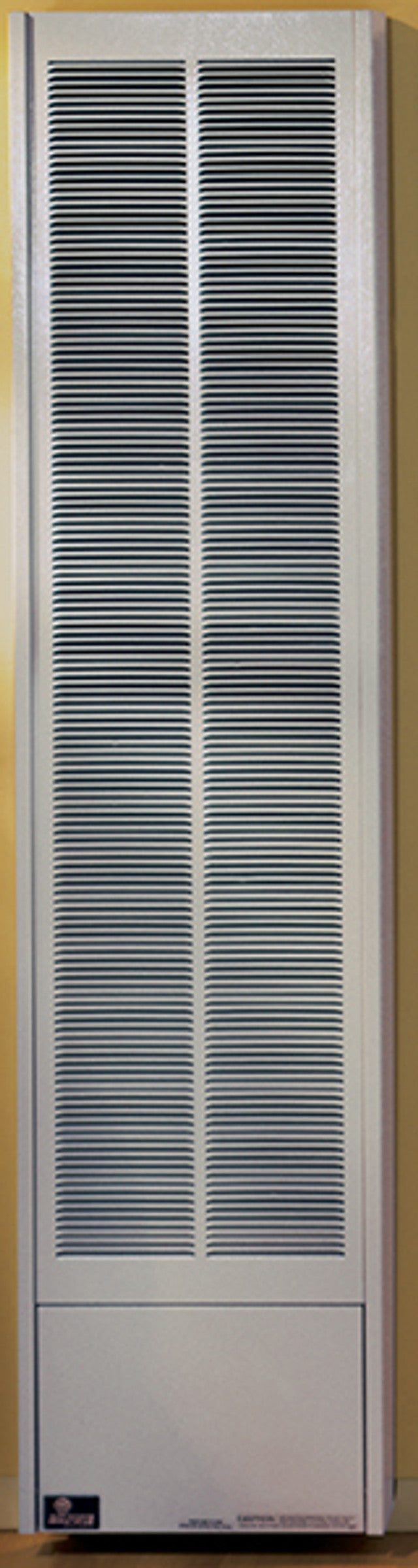

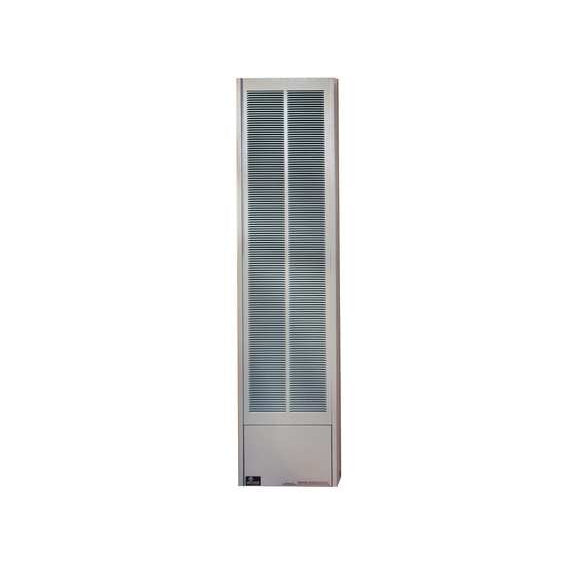

Empire Comfort Systems GWT25WLP 25,000 BTU Liquid Propane Gravity Wall Furnace

Product Description

The Empire Comfort Systems GWT25WLP is a wall furnace that uses liquid propane and gravity ventilation. It features an Inshot Burner and can be mounted in a wall. This furnace can be installed in both interior and exterior walls. A wall thermostat is needed for operation and is sold separately. An optional blower kit can be added for improved air circulation. This unit fits in a standard two by four stud wall cavity.

• Fuel Type: Liquid Propane
• Type of Venting: B-Vent
• Ignition Type: Standing Pilot

Product Highlights

This unit is designed for efficient heating in various spaces, ensuring comfortable environments with reliable functionality.

Product Information

Standard Information

• Brand: Empire Comfort Systems
• Model #: GWT25WLP

Technical Specifications

• Fuel Type: Liquid Propane
• Input BTU/HR: 25,000
• Heating BTUs: 25000
• Type of Venting: B-Vent
• Vent Connection Size: Oval to 4 Round
• Ignition Type: Standing Pilot
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Gas Connection Size: 1/2
• Manifold Pressure: 3.5 w.c. (NG) / 10.0 w.c. (LP)
• Inlet Gas Pressure (Min.): 4.5 w.c. (NG) / 11.0 w.c. (LP)
• Inlet Gas Pressure (Max.): 10.5 w.c. (NG) / 13.0 w.c. (LP)
• Top to Ceiling: 12
• Bottom to Floor: 1.5
• To Side Wall: 4
• Width: 16
• Depth: 6
• Height: 66.125
• Weight: 86
• Installation Type: Recessed Wall Mount
• Installation Kit: Not Included
• Blower: Optional
• Mount Location: Gravity Wall
• Color: White
