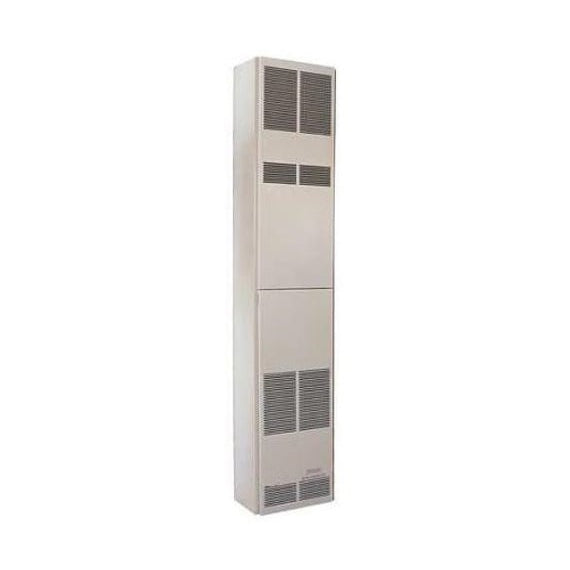

Empire Comfort Systems FAW55SPPXLP Vented Counterflow Wall Furnace - Liquid Propane

Product Description

The Empire Comfort Systems FAW55SPPXLP is a vented counterflow wall furnace designed for liquid propane. This unit circulates warm air at floor level and can be installed on an inside or outside wall. It can be mounted flush or recessed up to four inches. Accessory outlets allow warm air to flow into adjacent rooms. The heater operates with a standing pilot ignition system and requires B-venting for installation. Note that this unit operates on 24V and does not come with a thermostat.

• Counterflow blower circulates warm air at floor level.
• Removable front panels for cleaning and servicing.
• Standing pilot ignition for reliable operation.

Product Highlights

This furnace is suitable for heating small to medium spaces efficiently. Its compact design makes it versatile for different installation types.

Product Information

Standard Information

• Brand: Empire Comfort Systems
• Country of Origin: USA

Technical Specifications

• Fuel Type: Liquid Propane
• Input BTU/HR: 55,000
• Venting Type: B-Vent
• Ignition Type: Standing Pilot
• Dimensions: 16 inches W x 11.5 inches D x 82.375 inches H
• Weight: 135 lbs
• Warranty: 10-year limited warranty on combustion chamber, one-year limited on other parts
• Safety Controls: Automatic shut-off for pilot and main burners
• Flue Collar Size: 4 inches Oval
• Minimum Vent Opening (Oval): 4.5 inches x 9.25 inches
• Minimum Vent Opening (Round): 6.5 inches diameter
