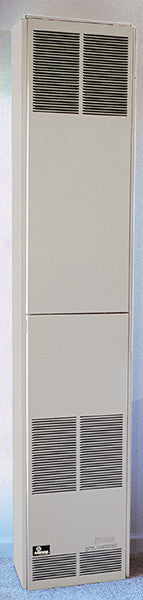

Empire Comfort Systems DVC-55-IPX 55,000 BTU Direct-Vent Counterflow Vented Wall Furnace

Product Description

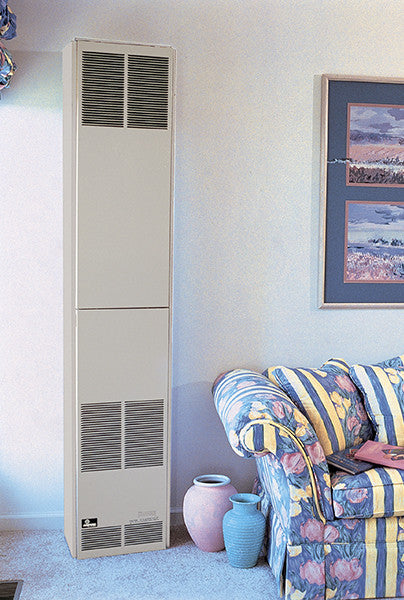

The Empire Comfort Systems DVC-55-IPX is a 55,000 BTU Direct-Vent Counterflow Vented Wall Furnace. This unit is designed for installation on outside walls, allowing for direct venting outside. It fits flush against the wall, requiring a seven and a half inch opening between studs for proper venting. The furnace can also be recessed between standard wall studs after repositioning some studs. It measures sixteen inches in width and is specifically designed to heat larger areas while occupying minimal floor space.

• Heating capacity of 55,000 BTUs
• Sealed combustion chamber for improved indoor air quality
• Optional outlet kits available for multi-room heating

Product Highlights

This furnace uses direct venting to enhance performance while being economical. It effectively circulates heat from the floor upwards, ensuring a comfortable and evenly heated space.

Product Information

Standard Information

• Brand: Empire Comfort Systems
• Fuel Type: Natural Gas or Liquid Propane

Technical Specifications

• Installation Type: Recessed / Surface Wall Mount
• Heating BTUs: 55,000
• Type of Venting: Direct Vent
• Air Inlet Tube Diameter: 6 inches
• Flue Outlet Tube Diameter: 4 inches
• Blower: Included
• Ignition Type: Electronic Ignition
• Gas Connection Size: 1/2 inch
• Top Clearance to Ceiling: 4 inches
• Bottom Clearance to Floor: 0 inches
• Side Wall Clearance: 4 inches
