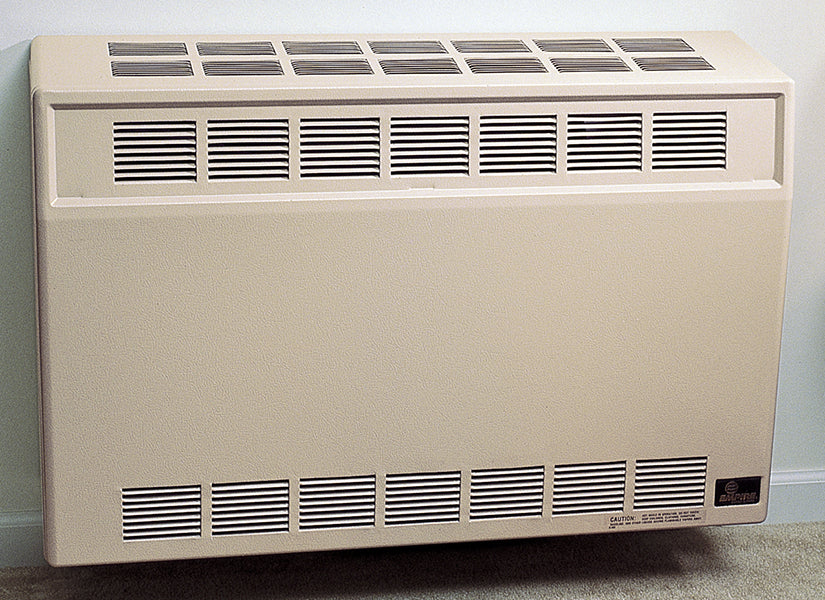

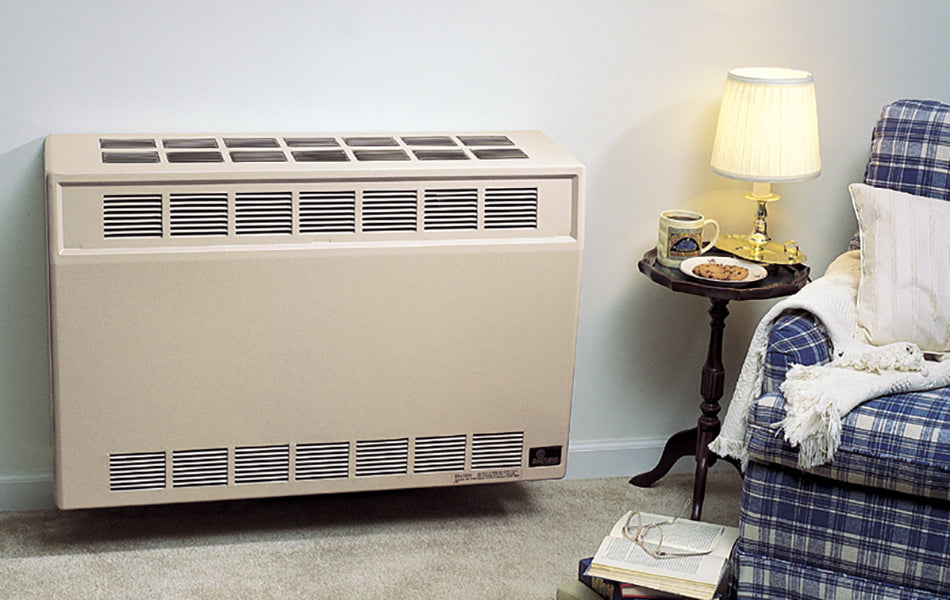

Empire Comfort Systems DV25SGLP Direct Vent Wall Furnace - LP Gas

Product Description

The Empire Comfort Systems DV25SGLP is a direct vent wall furnace designed specifically for heating larger spaces efficiently. This unit mounts directly on an outside wall and vents through the back, which means you do not need existing flues or chimneys. It operates quietly and is equipped with matchless piezo ignition for easy starting. The furnace also includes a thermostat for temperature control and has an option for an automatic blower to enhance air circulation.

• Direct vent design for easy installation.
• Quiet operation for comfortable environments.
• Includes a vent kit for straightforward setup.

Product Highlights

This wall furnace uses outside air to assist combustion within a sealed chamber, making it a safe and effective heating solution.

Product Information

Standard Information

• Brand: Empire Comfort Systems
• MPN: DV25SGLP

Technical Specifications

• Fuel Type: Choice NG / LP
• Installation Type: Wall Mount
• Heating BTUs: 25000
• Type of Venting: Direct Vent
• Blower: Optional
• Ignition Type: Standing Pilot

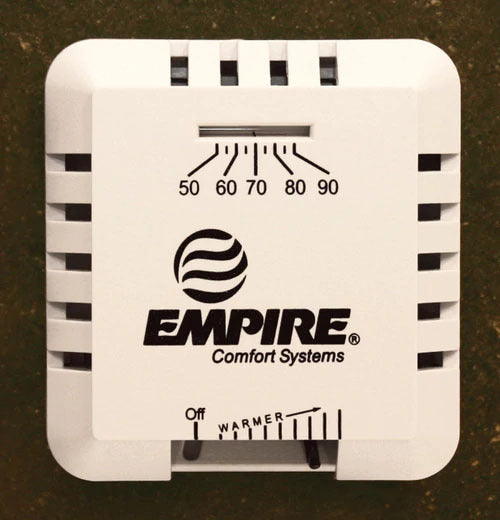

• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Gas Connection Size: 1/2
• Manifold Pressure (in.): 4.0 w.c. (NG) / 10.0 w.c. (LP)
• Inlet Gas Pressure (Min.): 5.0 w.c. (NG) / 11.0 w.c. (LP)
• Inlet Gas Pressure (Max.): 10.5 w.c. (NG) / 13.0 w.c. (LP)
• Width (in.): 37
• Depth (in.): 11.5
• Height (in.): 27.75
• Net Weight (lbs.): 98
• Air Inlet Tube (in.): 6
• Flue Outlet Tube (in.): 4
• Top to Ceiling (in.): 48
• Bottom to Floor (in.): 4
• To Side Wall (in.): 6
• Installation Kit: Vent Kit Included
