Empire Comfort Systems DV215SGX Direct Vent Wall Furnace 15,000 BTU

Product Description

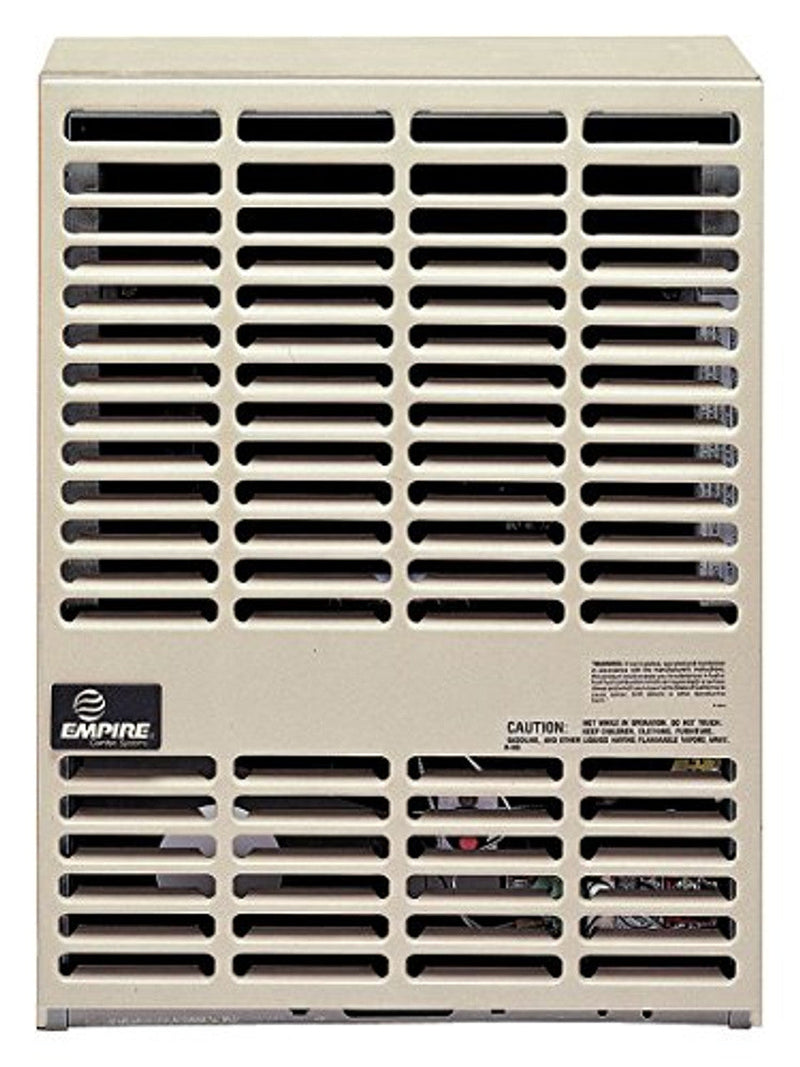

The Empire Comfort Systems DV215SGX is a 15,000 BTU direct-vent wall furnace designed for areas without flues or chimneys. It uses outside air for combustion, warming inside air as it recirculates around a sealed chamber. Removable front panels allow easy cleaning and servicing. Optional automatic blowers can be installed for even heat distribution.

• Specifically designed for areas where flues or chimneys are not available.
• Removable front panels for easy cleaning and servicing.
• Uses outside air to support combustion.

Product Highlights

This direct-vent wall furnace provides efficient heating and can be installed on nearly any outside wall. It operates without electricity unless an optional blower is installed.

Product Information

Standard Information

• Brand: EMPIRE COMFORT SYSTEMS
• Manufacturer Part Number: DV215SGX
• Country of Origin: USA

Technical Specifications

• Installation Type: Wall Mount
• Fuel Type: Choice NG / LP
• Installation Kit: Vent Kit Included
• Heating BTUs: 15000
• Type of Venting: Direct Vent
• Air Inlet Tube (in.): 5"
• Flue Outlet Tube (in.): 3"
• Blower: Optional
• Ignition Type: Standing Pilot
• Control Type: Wall Thermostat Required (NOT INCLUDED)
• Gas Connection Size: 1/2"
• Manifold Pressure (in.): 4.0" w.c. (NG) / 10.0" w.c. (LP)
• Inlet Gas Pressure (Min.): 5.0" w.c. (NG) / 11.0" w.c. (LP)
• Inlet Gas Pressure (Max.): 10.5" w.c. (NG) / 13.0" w.c. (LP)
• Top to Ceiling (in.): 12
• Bottom to Floor (in.): 0
• To Side Wall (in.): 1
• Width (in.): 20.25
• Depth (in.): 9.375
• Height (in.): 24.875
• Net Weight (lbs.): 60
• Certifications: CSA
• Safety Controls: Pilot and Main Burners include Automatic Shut-off.
• Power Source: No Electricity
• Mounting Type: Wall Mount
• Indoor Outdoor Usage: Indoor
• Model Name: DV-215-SG
• Model Number: DV-215-SG
• Manufacturer: Empire Comfort Systems
• Part Number: DV215-SG
• Unit Count: 1.0 Count
