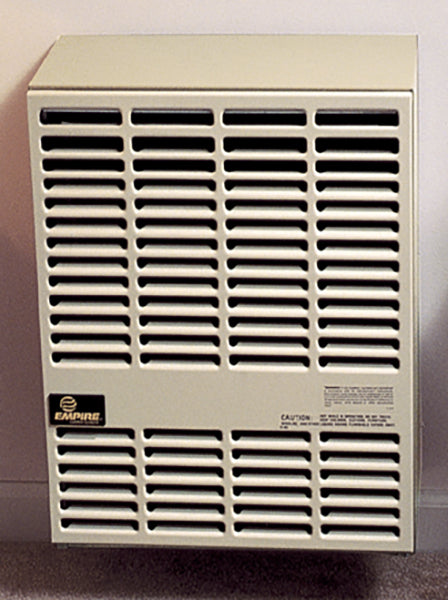

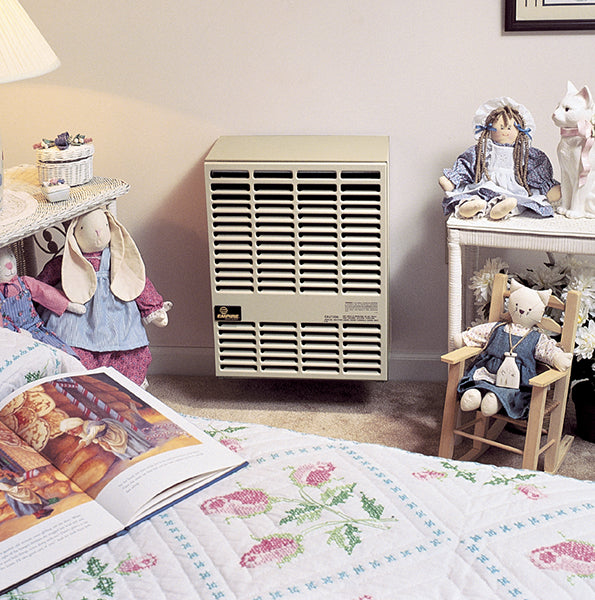

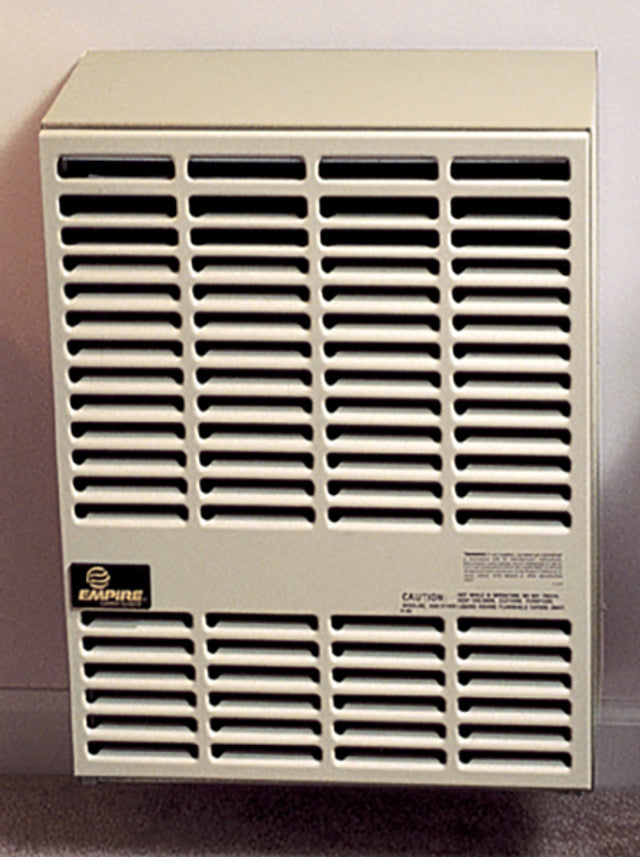

Empire Comfort Systems DV210SGXLP Direct Vent Wall Furnace

Product Description

The Empire Comfort Systems DV210SGXLP is a direct vent wall furnace designed to efficiently heat small spaces. It uses liquid propane to produce ten thousand BTUs of heat, making it suitable for various applications. The furnace has a compact design, making it ideal for wall installation. The included vent kit enables through-the-wall venting, removing the need for a chimney or flue. The unit features a matchless piezo ignition system and remains operable during power outages; however, the blower will not function.

• Direct vent design for efficient heating.
• Operates on liquid propane fuel.
• Compact design for wall mounting.

Product Highlights

This heating solution is excellent for spaces that require a cost-effective and space-saving heating option.

Product Information

Standard Information

• Brand: Empire Comfort Systems
• Fuel Type: Liquid Propane

Technical Specifications

• Heating BTUs: 10000
• Mount Location: Wall Furnace
• Venting Type: Direct Vent
• Air Inlet Tube: 5 inches
• Flue Outlet Tube: 3 inches
• Blower: Optional
• Ignition Type: Standing Pilot
• Control Type: Wall Thermostat Required (Not Included)
• Gas Connection Size: 1/2 inches
• Manifold Pressure: 4.0 w.c. (NG) / 10.0 w.c. (LP)
• Inlet Gas Pressure (Min.): 5.0 w.c. (NG) / 11.0 w.c. (LP)
• Inlet Gas Pressure (Max.): 10.5 w.c. (NG) / 13.0 w.c. (LP)
• Top to Ceiling: 12 inches
• Bottom to Floor: 0 inches
• To Side Wall: 1 inch
• Width: 16.25 inches
• Depth: 9.375 inches
• Height: 21.375 inches
• Net Weight: 42 lbs.
• Certifications: CSA
