Empire Industries 41HCT0050 Hinge Split Ring Copper Gard Import 1/2

Product Description

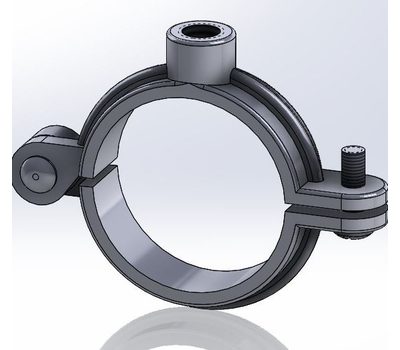

The Empire Industries 41HCT0050 Hinge Split Ring Copper Gard Import 1/2 is an essential component for supporting copper tubing. This hanger is made to secure non-insulated stationary copper tubing either horizontally or vertically. With an epoxy coating over electro-galvanized steel, the hanger resists corrosion, ensuring long-lasting performance.

• Used for copper tube suspension
• Corrosion-resistant epoxy coating
• Supports both horizontal and vertical installations

Product Highlights

Ideal for hanging copper tubing, this hinged split ring hanger is coated with epoxy over electro-galvanized steel to combat corrosion.

Product Information

Standard Information

• Brand: Empire Industries
• MPN: 41HCT0050
• Category: Piping & Fittings
• Part Type: Split Ring Hanger
• UPC: 66302702723

Technical Specifications

• Finish: Copper Epoxy Coated
• Material: Malleable Iron
• Rod Size: 3/8 inch - 16 inch
• Product Type: Split Ring Hanger
• Selling Size: 1/2 inch
• Load Capacity: 180 pounds
• Outside Diameter: 5/8 inch
• Specifications Met: Federal Specification WW-H-171-E (Type 25), A-A-1192A (Type 12), SP-58, MSS SP-69
