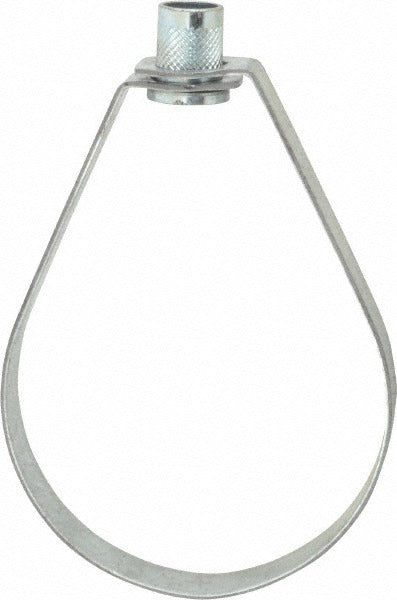

Empire 310G0400 Emlok Swivel Ring Hanger 4 in Pipe

Product Description

The EMPIRE 310G0400 is an Emlok swivel ring hanger designed to support and suspend 4-inch nominal pipe from threaded rod in commercial and industrial piping systems. The swivel design allows the ring to pivot, accommodating slight misalignments between the pipe run and the rod drop point. Constructed from carbon steel with a pre-galvanized finish, the 310G0400 accepts a 5/8-inch rod and carries a rated load capacity of 1,250 pounds. Plumbers, pipefitters, and mechanical contractors install this type of hanger in overhead pipe support applications where a secure, adjustable connection to threaded rod is required.

This hanger is suited for residential, commercial, and light industrial piping installations where 4-inch pipe must be suspended from structural members via 5/8-inch threaded rod. Typical applications include HVAC hydronic piping, domestic water supply lines, drain and waste vent systems, and industrial process piping. The pre-galvanized finish provides corrosion resistance appropriate for interior mechanical spaces and similar environments. Licensed plumbers and mechanical contractors are the primary installers for this fitting type.

Key Features

• Swivel ring design accommodates minor angular offsets between pipe run and rod drop
• Rated for 1,250 pounds load capacity for secure overhead pipe support
• Fits 4-inch nominal pipe size
• Accepts 5/8-inch threaded rod
• Carbon steel construction with pre-galvanized finish for corrosion resistance

Compatibility

Designed as a standard Emlok swivel ring hanger for 4-inch nominal pipe suspended from 5/8-inch threaded rod in typical overhead mechanical piping installations.

Installation Notes

Installation is performed by licensed plumbers or mechanical contractors following applicable codes such as the IPC and IFGC for pipe support spacing and load requirements. Verify that the structural anchor point and threaded rod assembly are rated to handle the combined dead and live load before securing the hanger. The swivel ring should be fully seated around the pipe and the rod connection tightened securely before placing the system under load. Do not exceed the rated 1,250-pound load capacity.
