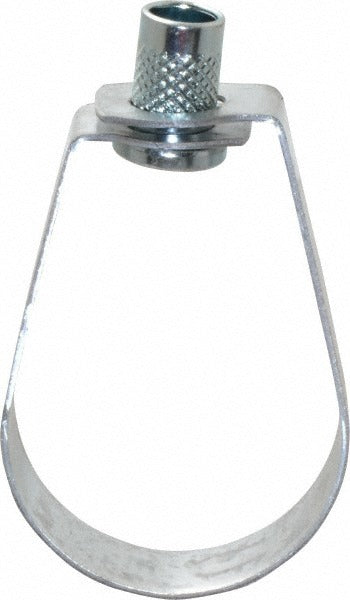

Empire 310G0150 Emlok Swivel Ring Hanger 1-1/2 in Pipe

Product Description

The EMPIRE 310G0150 is an Emlok swivel ring hanger designed to support 1-1/2 inch nominal pipe from threaded rod in mechanical, plumbing, and fire protection piping systems. The swivel design allows the ring to pivot, accommodating minor misalignment between the pipe run and the rod attachment point. Constructed from carbon steel with a pre-galvanized finish, this hanger provides corrosion resistance suited for typical indoor mechanical room and wet-area installations. It accepts 3/8 inch threaded rod and carries a rated load capacity of 600 pounds. The cULus listing and FM approval make it acceptable for use in fire protection and life-safety piping applications where listed hangers are required.

This hanger is used in residential and commercial mechanical systems wherever pipe must be suspended from structural members using threaded rod. Typical applications include domestic water supply lines, hydronic heating and cooling piping, compressed air lines, and sprinkler system branch lines. The swivel feature is particularly useful when rod hangers are installed at angles or where the overhead structure does not allow a perfectly vertical rod drop. Licensed plumbers, pipefitters, and fire protection contractors are the primary installers of this hardware.

Key Features

• Swivel ring design accommodates angular misalignment between rod and pipe run
• Rated load capacity of 600 pounds
• Fits 1-1/2 inch nominal pipe size
• Accepts 3/8 inch threaded rod
• Carbon steel construction with pre-galvanized finish for corrosion resistance
• cULus Listed and FM Approved for use in fire protection and life-safety piping systems

Compatibility

Designed as an OEM-style pipe support hanger for 1-1/2 inch nominal pipe suspended on 3/8 inch threaded rod in mechanical, plumbing, and fire protection piping installations.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or fire protection contractor in accordance with the applicable edition of the International Plumbing Code, NFPA 13, or other governing authority. Verify that the structural attachment point and rod are rated to support the combined load of the hanger, pipe, fluid, and insulation before hanging pipe. Thread engagement on the rod should be sufficient to maintain full load capacity at the nut. For fire protection applications, confirm that listed hardware requirements are met before installation.
