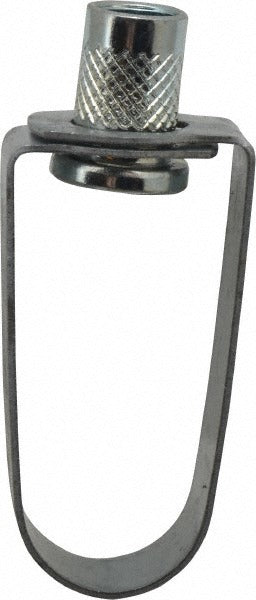

Empire 310G0050 Emlok Swivel Ring Hanger 1/2 in Pipe

Product Description

The EMPIRE 310G0050 is an Emlok swivel ring hanger designed to support 1/2-inch nominal pipe in mechanical, plumbing, and HVAC piping systems. The swivel design allows the ring to pivot, accommodating minor angular variations during installation and reducing stress at the rod connection point. The hanger accepts a 3/8-inch threaded rod and is constructed from carbon steel with a pre-galvanized finish for corrosion resistance in standard indoor applications. Rated at 400 pounds load capacity, it meets cULus Listed and FM Approved standards. Plumbers, pipefitters, and mechanical contractors use this hanger for suspended pipe runs in commercial and residential construction.

This swivel ring hanger is suited for 1/2-inch nominal pipe support in suspended ceiling and overhead piping applications. Typical use cases include domestic water lines, hydronic heating distribution piping, and low-pressure mechanical system pipe runs where a rigid hanger would introduce misalignment stress. The FM Approved and cULus Listed ratings make it appropriate for fire-protection and life-safety system installations where listed hardware is required by the authority having jurisdiction. Sold individually; minimum order quantity is 5 units.

Key Features

• Swivel ring design accommodates angular pipe alignment without stressing the rod connection
• 400-pound load capacity for reliable overhead pipe support
• Fits 1/2-inch nominal pipe and 3/8-inch threaded rod
• Carbon steel construction with pre-galvanized finish for corrosion resistance
• cULus Listed and FM Approved for use in listed and approved piping installations

Compatibility

Designed as an OEM-style replacement and standard-use hanger for 1/2-inch nominal pipe systems using 3/8-inch threaded rod support.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes, including IPC and IFGC provisions for pipe support spacing and hanger type. Shut off and depressurize the piping system before modifying any existing supports. Ensure the threaded rod and structural attachment point are rated for the combined load of the pipe, medium, and insulation. Do not exceed the 400-pound rated load capacity of the hanger.
