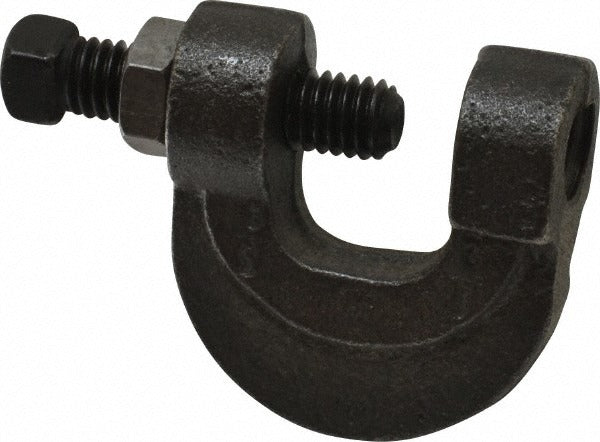

Empire 23LB0050 C-clamp Locknut 500 Lb Ductile Iron

Product Description

The EMPIRE 23LB0050 is a C-clamp with locknut designed for securing threaded rod to structural flanges in mechanical, plumbing, and HVAC piping support applications. Built from ductile iron, this clamp accepts up to 3/4 inch flange thickness and is sized for 1/2 inch rod. It carries a rated load capacity of 500 pounds, making it suitable for suspended pipe runs, duct hangers, and equipment support assemblies where code-compliant, listed hardware is required. Licensed contractors and pipe hangers installers working on commercial or industrial systems will find this clamp meets the standards required on inspected jobsites.

This C-clamp with locknut is used in suspended piping and mechanical system support installations across commercial and industrial settings. It is appropriate for use with 1/2 inch threaded hanger rod attached to beam flanges, structural steel, or similar structural members. The locknut feature prevents rod movement after installation. It is commonly installed by plumbing, HVAC, and mechanical contractors on new construction and retrofit projects where FM, UL, or ULC listed components are specified.

Key Features

• 500 pound load capacity for reliable pipe and equipment suspension
• Accepts flange thickness up to 3/4 inch
• Sized for 1/2 inch threaded hanger rod
• Ductile iron construction for strength and durability
• Integrated locknut prevents rod loosening after installation
• cULus Listed, FM Approved, and meets MSS SP-69 Type 23 and SP-58 standards

Compatibility

Designed as a standard pipe hanger component compatible with 1/2 inch threaded rod systems and structural flanges up to 3/4 inch thick. Meets MSS SP-69 Type 23 and SP-58 specifications for use in listed mechanical support assemblies.

Installation Notes

Installation is typically performed by licensed plumbing or mechanical contractors following IFGC, IPC, or applicable local mechanical codes. Power down or de-energize any nearby electrical components before working in congested ceiling or mechanical room spaces. Ensure the structural member to which the clamp is attached is rated to carry the combined load of the rod, hanger, and supported pipe or equipment. Tighten the locknut securely after positioning the rod to prevent movement under load or vibration.
