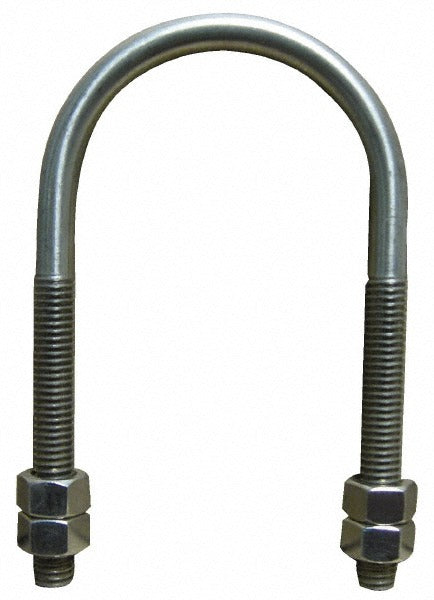

Empire 137SS0600 Round U-bolt 6 Inch Pipe Stainless Steel

Product Description

The EMPIRE 137SS0600 is a round U-bolt designed to secure 6-inch pipe in mechanical, plumbing, and HVAC piping systems. Constructed from 304 stainless steel, it resists corrosion in wet or chemically aggressive environments. The 5/8-11 UNC thread with a 3-3/4 inch thread length provides strong clamping engagement. With a rated load capacity of 3,620 pounds, this U-bolt handles heavy pipe loads on structural supports and hangers. It ships without a mount plate and includes four hex nuts. Plumbers, pipefitters, and mechanical contractors install this hardware in commercial and industrial pipe support assemblies.

This U-bolt is suited for 6-inch pipe runs in commercial plumbing, industrial process piping, and mechanical HVAC applications where corrosion resistance is required. The round shape conforms to standard round pipe OD profiles. The stainless steel construction makes it appropriate for outdoor installations, equipment rooms with high humidity, or applications where carbon steel hardware would corrode prematurely. It follows the inch measurement system and is sold individually.

Key Features

• 304 stainless steel construction for corrosion resistance in wet and industrial environments
• 5/8-11 UNC thread standard with 3-3/4 inch thread length for secure nut engagement
• Rated load capacity of 3,620 pounds for heavy-duty pipe support
• Round shape fits 6-inch nominal pipe OD with 6-1/8 inch inside width
• Includes four hex nuts — no additional hardware required
• Meets A-A-1192 Type 24, MSS-SP-58, SP-69 Type 24, and WW-H-171-E Type 24 fastener standards

Compatibility

Designed for use with 6-inch nominal pipe in standard pipe hanger and support assemblies. Compatible with mount plates and structural channels that accept 5/8-11 UNC fasteners. No mount plate is included with this unit.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or mechanical contractor in accordance with applicable codes including MSS-SP-58 and local mechanical or plumbing codes. Ensure the supporting structure is rated for the combined pipe, fluid, and hanger load before torquing the hex nuts. Do not overtighten the U-bolt across the pipe wall, as deformation of the pipe or fitting may result. Verify thread engagement is sufficient and that all four included hex nuts are fully seated before placing the pipe run in service.
