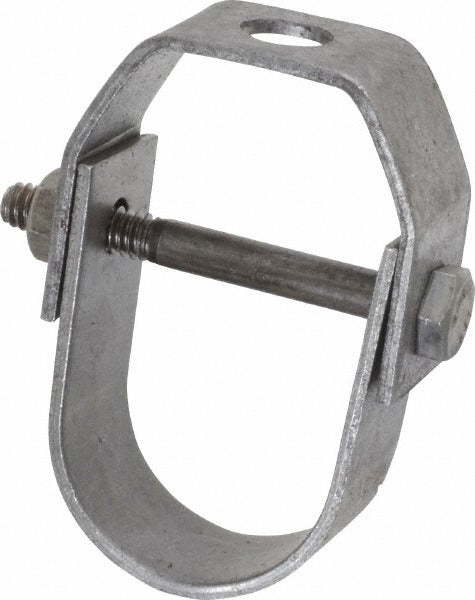

Empire 11B0100 Adjustable Clevis Hanger 1 in Carbon Steel

Product Description

The EMPIRE 11B0100 is an adjustable clevis hanger designed to support 1-inch nominal pipe in suspended piping systems. Fabricated from carbon steel with a plain finish, this hanger provides a load capacity of 730 pounds and accepts a 3/8-inch threaded rod for vertical adjustment. The clevis design allows height positioning after installation, making it a standard choice for plumbing, mechanical, and fire protection piping runs where elevation fine-tuning is required. Licensed plumbers, pipefitters, and mechanical contractors install this type of hanger on commercial and residential projects.

This hanger is suited for horizontal pipe support in suspended ceiling spaces, mechanical rooms, and exposed overhead installations. It is commonly used in plumbing supply and drain systems, HVAC hydronic piping, and sprinkler system branch lines. The cULus listing and FM approval make it appropriate for fire protection applications where listed hangers are required by code. It fits 1-inch nominal pipe and pairs with standard 3/8-inch threaded rod available separately.

Key Features

• Adjustable clevis design accepts 3/8-inch threaded rod for field height adjustment
• 730-pound load capacity for reliable support of loaded pipe runs
• Carbon steel construction with plain finish for general indoor mechanical applications
• cULus Listed and FM Approved for use in fire protection and life-safety piping systems
• Fits 1-inch nominal pipe size

Compatibility

Designed as an OEM-style replacement and standard-fit hanger for 1-inch nominal pipe in suspended plumbing, mechanical, and fire protection piping systems where cULus Listed and FM Approved hangers are specified.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or sprinkler fitters in accordance with applicable mechanical and plumbing codes such as the IPC or NFPA 13. Depressurize and isolate any active pipe system before working on hangers in an existing installation. The threaded rod connection should be made to a structurally adequate overhead support point rated for the intended load. Do not exceed the rated 730-pound load capacity of the hanger.
