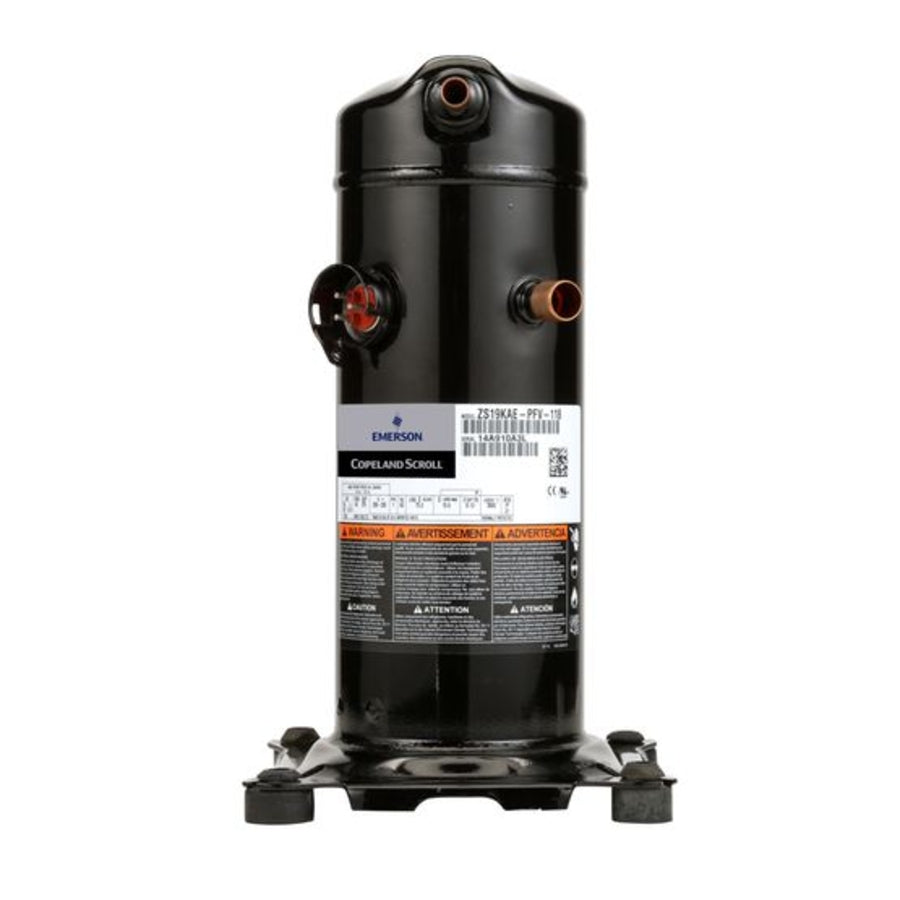

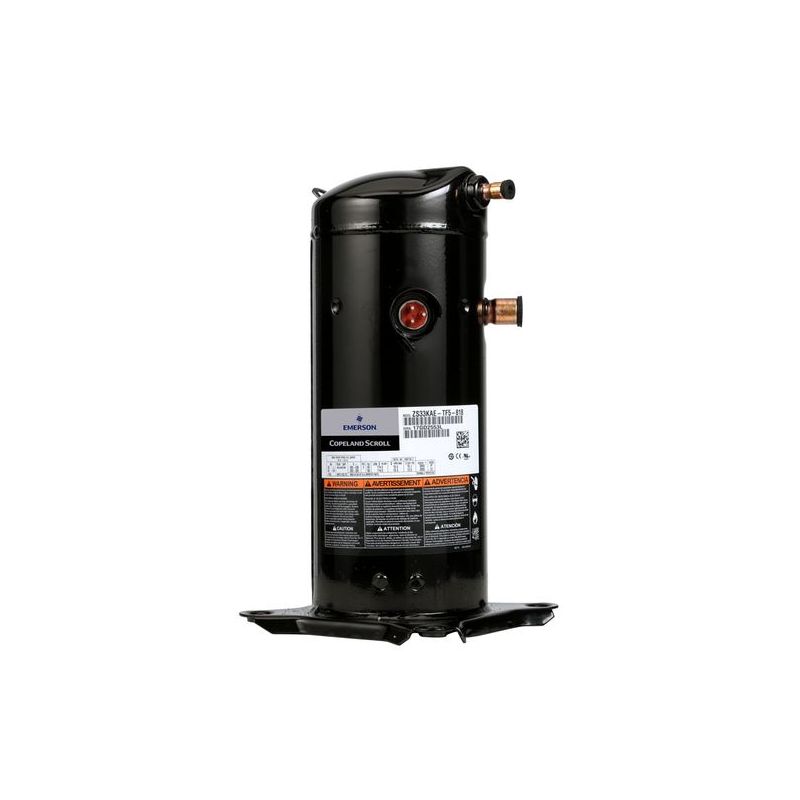

Emerson ZS29KAE-TF5-818 Compressor 208-230/3/60 29 MBH

Product Description

The EMERSON ZS29KAE-TF5-818 compressor is designed for HVAC applications and utilizes scroll compression. Operating at 208/230V with a 3-phase 60 Hz electrical system, it is compatible with R404A refrigerant. This Copeland scroll compressor is designed for efficiency and performance in medium and extended medium temperature applications, offering a cooling capacity of 29,000 BTU.

• Multi-Refrigerant Approved
• Superior Liquid Handling Capability
• Excellent Isentropic Efficiency

Product Highlights

Designed for HVAC applications, this compressor features scroll compression and is compatible with R404A refrigerant.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: ZS29KAE-TF5-818
• Country of Origin: USA

Technical Specifications

• Type: Compressor
• Phase: 3
• Voltage: 208/230V
• Frequency: 60 Hz
• Electrical: 208/230-3-60
• Application: HVAC
• Refrigerant: R404A
• Series-Brand: ZSKA Series
• Compression Type: Scroll
• SKU: ZS29KAE-TF5-818
• Brand/Manufacturer: Copeland
• Additional Information: Compatible Refrigerant: R-134a, R-22, R-404A, R-407A, R-407C, R-448A, R-449A, R-507
• Cooling BTU: 10,500-46,600
• Decibel Level (dBA): 76 Decibels
• Motor RPM: 3500
• Horsepower: 3-4.5 HP
• EER: Up to 11.25
• HP/Ton: 4
• Maximum Regulator Capacity: 29000BTU
• Motor Type: Three-phase induction motor
• Mounting: Suitable for horizontal and vertical mounting
• Cooling Efficiency (EER): UP TO 11.25
