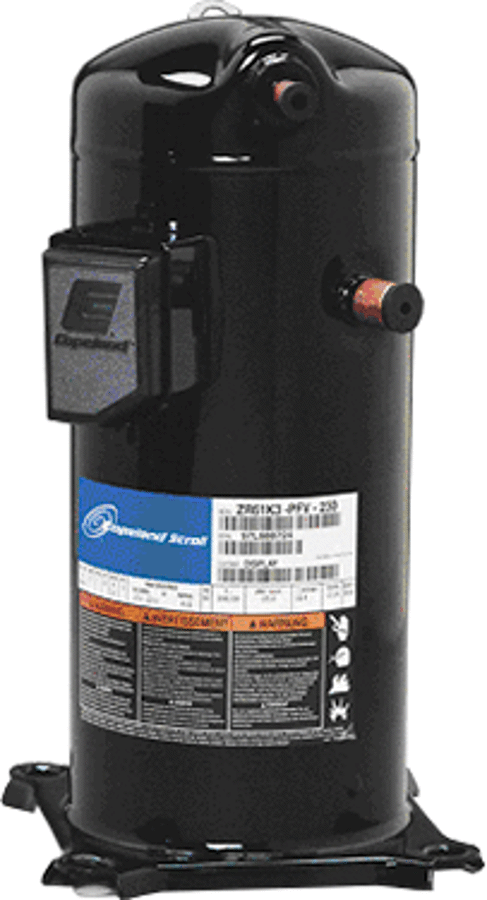

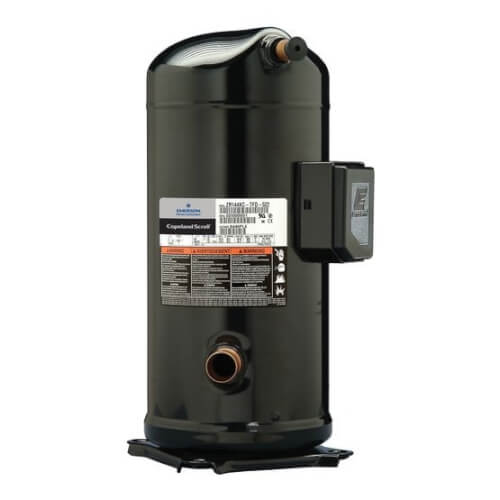

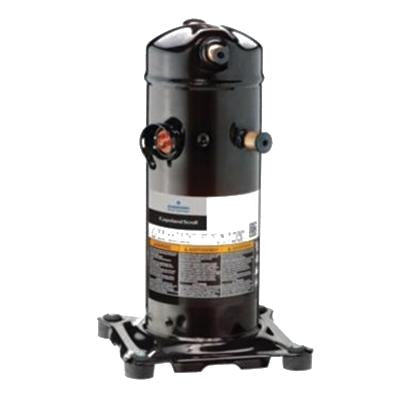

Emerson ZR72KCE-TFD-950 Compressor, 460/3 1/2 inches x 7/8 inches Scroll Compliant A/C R22/R407C

Product Description

The EMERSON ZR72KCE-TFD-950 is a scroll compliant A/C compressor designed for refrigeration applications using R22/R407C refrigerant. Suitable for air conditioning applications, this compressor features a light, compact design. It has a capacity of 73500 BTUH, a voltage of 460, and operates at 3 phase.

• Suitable for air conditioning applications.
• Rotolock connections require valve or adapter (961, 965, 970 suffix)
• KCE compressors have R407C and R134a applications

Product Highlights

This compressor is designed for superior efficiency and performance, offering significant applied cost savings. Ideal for HVAC and air conditioning systems.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: ZR72KCE-TFD-950
• Country of Origin: US

Technical Specifications

• Application: HVAC
• Refrigerant: R22/R407C
• Phase: 3
• Capacity Range (BTU): 40400-86800
• Voltage@Hz: 380/420@50, 460@60
• Vendor Name: Copeland
• URI Part Number: ZR72KCETFD950
• Vendor Part Number: ZR72KCE-TFD-950
• Length (In.): 16.00
• Width (In.): 14.00
• Height (In.): 20.00
• Capacity (BTUH): 73500
• Connection Discharge (In.): 1/2 S
• Connection Suction (In.): 7/8 S
• Connection Type: Sweat
• Country of Origin: US
• Displacement (CFH): 727.102
• Displacement (In³/Rev): 5.983
• Horsepower: 6
• Mount (In.): 7.5 x 7.5
• Oil: Polyol Ester
• Rated Load Amps: 10.0
• Voltage: 460
• Amperage Rating: 9.45 A
• BTU Rating: 72000 Btu/hr
• CFM Rating: 12.118 cfm
• Compressor Oil: POE-AK/DA, 3MA/SP32
• Discharge Line Size: 1/2 in Stub
• EER Rating: 11.25 to 19.75
• Flow Rate: 1045 to 1070 lb/hr
• Power Rating: 6250 W, 6 hp
• Refrigerant Type: R-22, R-407C, R-134A, HFC
• Series: ZR
• Sound Level: 75 to 80 dBA
• Speed Rating: 3500 rpm
• Suction Line Size: 7/8 in Stub
• Temperature Rating: 45 deg F Evaporator, 100-130 deg F Condensing, 65 deg F Return Gas, 85 to 115 deg F Liquid
• Tonnage: 6 ton
