Emerson ZR72KCE-TF5-950 Compressor 200-230/3 1/2 inches x 7/8 inches Scroll A/C R22 Copelaweld REPLACES ZR72KC-TF5

Product Description

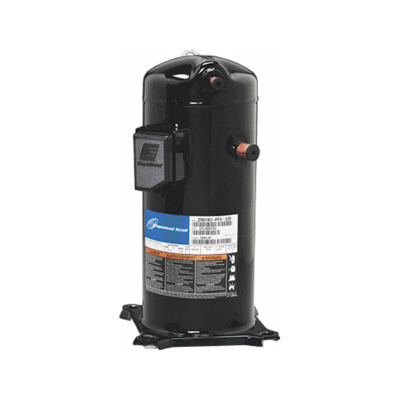

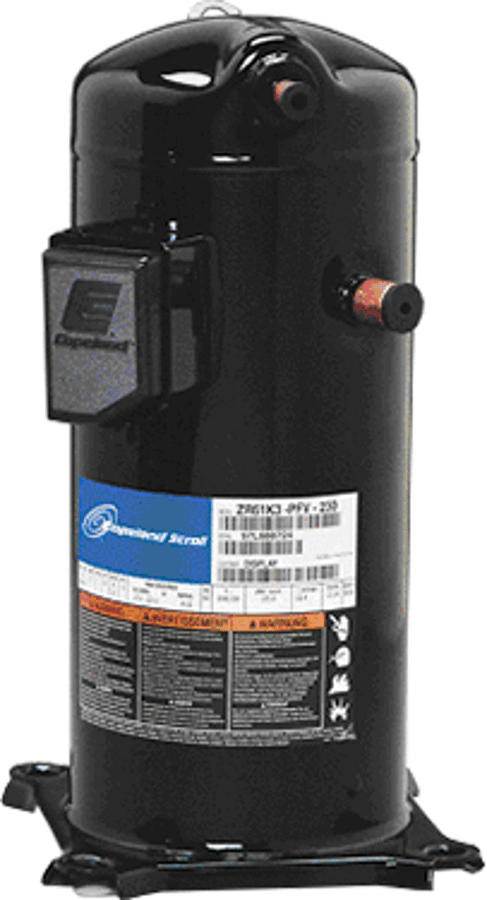

The EMERSON ZR72KCE-TF5-950 is a compressor designed for air conditioning systems using R22 refrigerant. It features a scroll design and Copelaweld construction. This three-phase compressor is suitable for HVAC applications. It has a 1/2" liquid line size and a 7/8" suction line size.

• Scroll design for efficiency
• Copelaweld construction for durability
• Suitable for R22, R-407C and R-134a refrigerants

Product Highlights

The ZR72KCE-TF5-950 is a three-phase compressor for air conditioning systems, featuring a scroll design and Copelaweld construction, compatible with R22, R-407C and R-134a refrigerants.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: ZR72KCE-TF5-950

Technical Specifications

• Phase: 3-Phase
• Height: 17.75"
• Length: 9.69"
• Frequency: 60Hz
• Application: HVAC
• Refrigerant: R22
• Series-Brand: Copeland
• Liquid Line Size: 1/2"
• Body Type: ZR
• Suction Line Size: 7/8"
• Temperature Rating: A/C
• Voltage: 200/230V
• Width: 9.69"
• Amperage Rating: 20.7 A
• Compressor Oil: 3MA POE
• Nominal Capacity: 72000 Btu/hr
• Refrigerant Type: R-22/R-407C/R-134A
• Type: Scroll
• Brand: Copeland
• Discharge Line Size: 1/2 in
