Emerson ZR57K3E-PFV-930 Compressor, 208-230/1/60 1/2 inches x 7/8 inches Scroll Compliant A/C R407C

Product Description

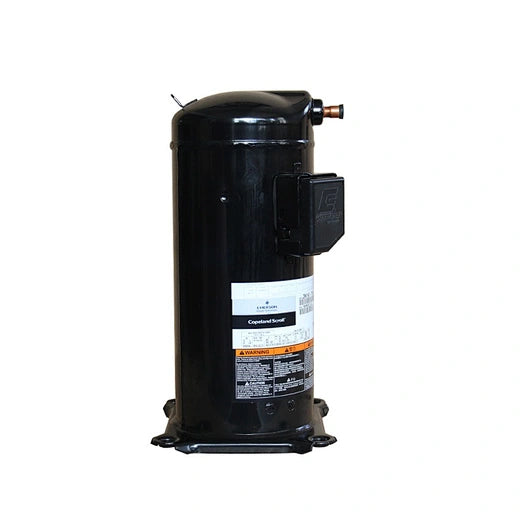

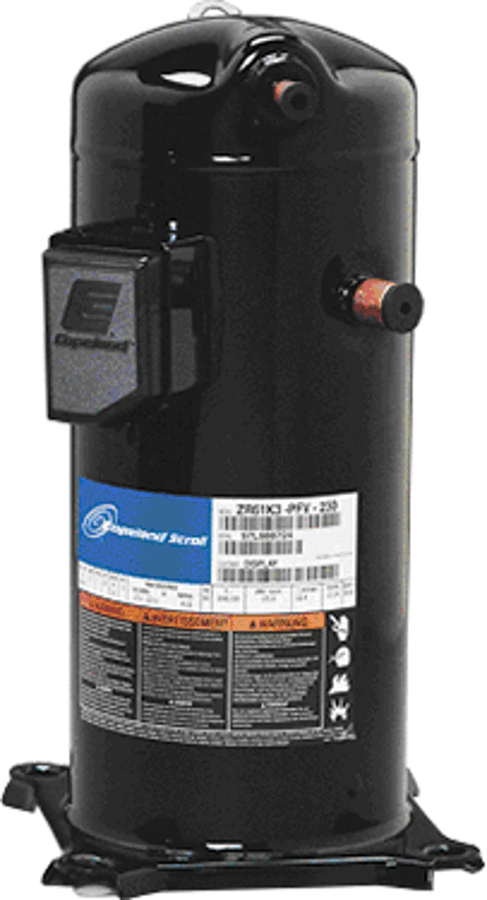

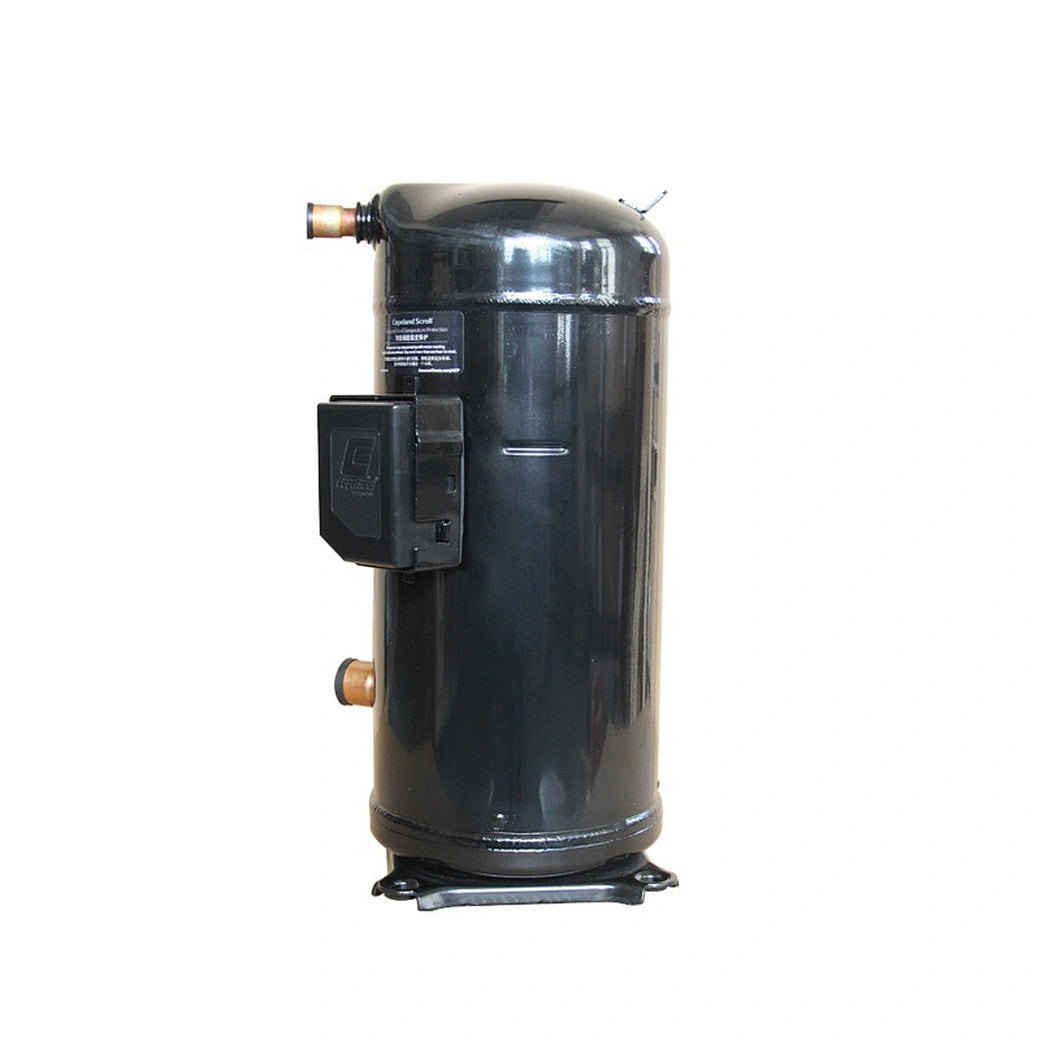

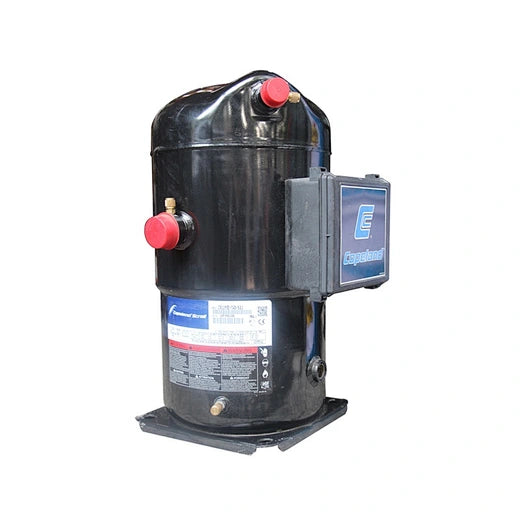

The EMERSON ZR57K3E-PFV-930 is a compressor designed for HVAC applications using R407C refrigerant. This 1-phase scroll compressor operates at 208-230V and 60Hz. It features a liquid line size of 1/2" x 7/8" and is part of the Copeland series. It can be used for AC, drier, refrigeration, and chiller applications.

• Wide range with wide application envelope suit variedapplications.
• Innovative IDV technology further enhances part-load efficiency with minimal redesign costs.
• Bringing a new level of compressor robustness and systemreliability.

Product Highlights

The ZR57K3E-PFV-930 compressor is designed for efficiency and reliability in a variety of applications.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: ZR57K3E-PFV-930
• Country of Origin: China

Technical Specifications

• Phase: 1-phase
• Height: 17.75"
• Length: 9.69"
• Frequency: 60Hz
• Application: HVAC
• Refrigerant: R407C
• Series-Brand: Copeland
• Liquid Line Size: 1/2"
• HP/Ton: 4.75
• Volts: 208/230
• Model: ZR57K3E-PFV-930
• Nominal: 5.1HP
• Displacement: 82.6m3/hr
• Input: 3590W
• Capacity: 41700BTU
• Voltage: 208-230V, 60Hz,1Ph
• Usage/Application: AC,drier,refrigeration,chiller,etc.
