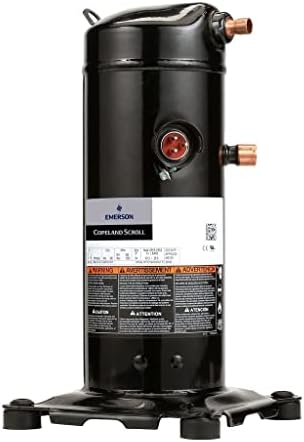

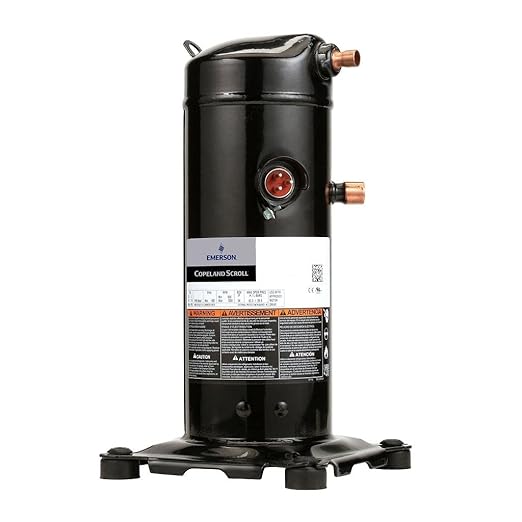

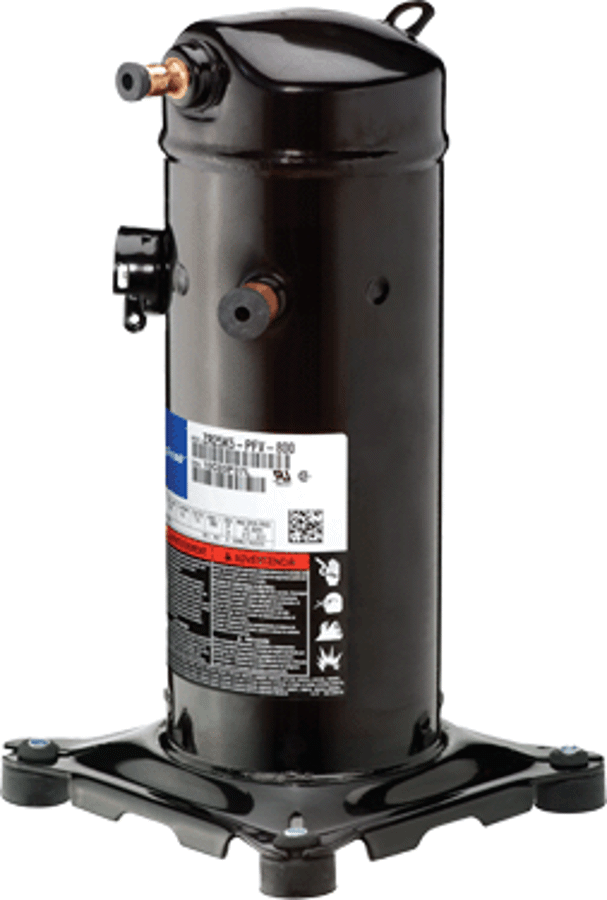

Emerson ZR54K5E-PFV-800 Compressor, 208-230/1/60 1/2 inches x 7/8 inches Scroll Comliant A/C R407C

Product Description

The EMERSON ZR54K5E-PFV-800 is a fixed-speed Scroll compressor. It is designed for HVAC applications and engineered for higher efficiency, lower sound levels and superior durability. This compressor provides cost-effective solutions to systems requiring a wide range of evaporating capability. It uses R407C refrigerant and operates at 60Hz.

• Engineered for higher efficiency
• Lower sound levels
• Superior durability
• Uses R407C refrigerant

Product Highlights

The EMERSON ZR54K5E-PFV-800 compressor is designed for HVAC applications, offering efficient and durable performance.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: ZR54K5E-PFV-800

Technical Specifications

• Phase: 1-phase
• Height: 16.94"
• Length: 9.69"
• Frequency: 60Hz
• Dimensions: 9.69" x 9.69" x 16.94"
• Application: HVAC
• Refrigerant: R407C
• Series-Brand: Copeland
• Liquid Line Size: 1/2"
• Mounting Dimensions: 7.50" x 7.50"
• Capacity: 53,500 BTU/HR
• Voltage: 208/230V
• Connection Size: 7/8" (Suction) / 1/2" (Liquid)
• Capacitor Size: 80 MFD/uF x 370 VAC (Not Included)
• Mounting Base: 7-1/2" x 7-1/2"
• Series: ZR
• BTU Rating: 54000 Btu/hr
• Amperage Rating: 21.8 A
• Voltage Rating: 208 to 230 VAC
• Compressor Oil: POE-AK/DA, 3MA/SP32
• Refrigerant Type: R-407C
• Flow Rate: 855 lb/hr
• CFM Rating: 8.9 cfm
• Power Rating: 4850 W, 4-1/2 hp
• Speed Rating: 3500 rpm
• Sound Level: 70 dBA
• EER Rating: 10.3
• Temperature Rating: 45 to 50 deg F Evaporator, 100 to 130 deg F Condensing, 65 to 70 deg F Return Gas, 85 to 115 deg F Liquid
• Model Number(s): ZR54K5E-PFV-800
• Brand: Rheem Parts
