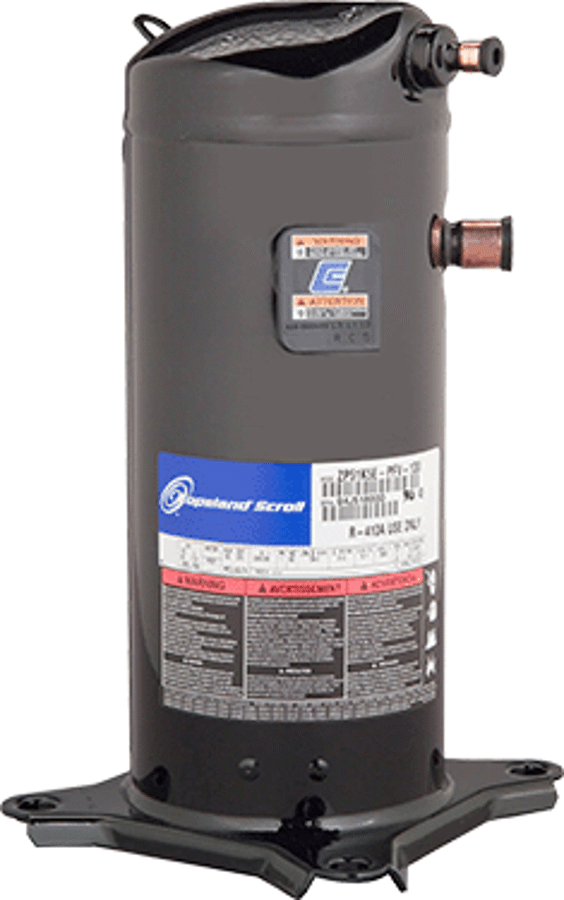

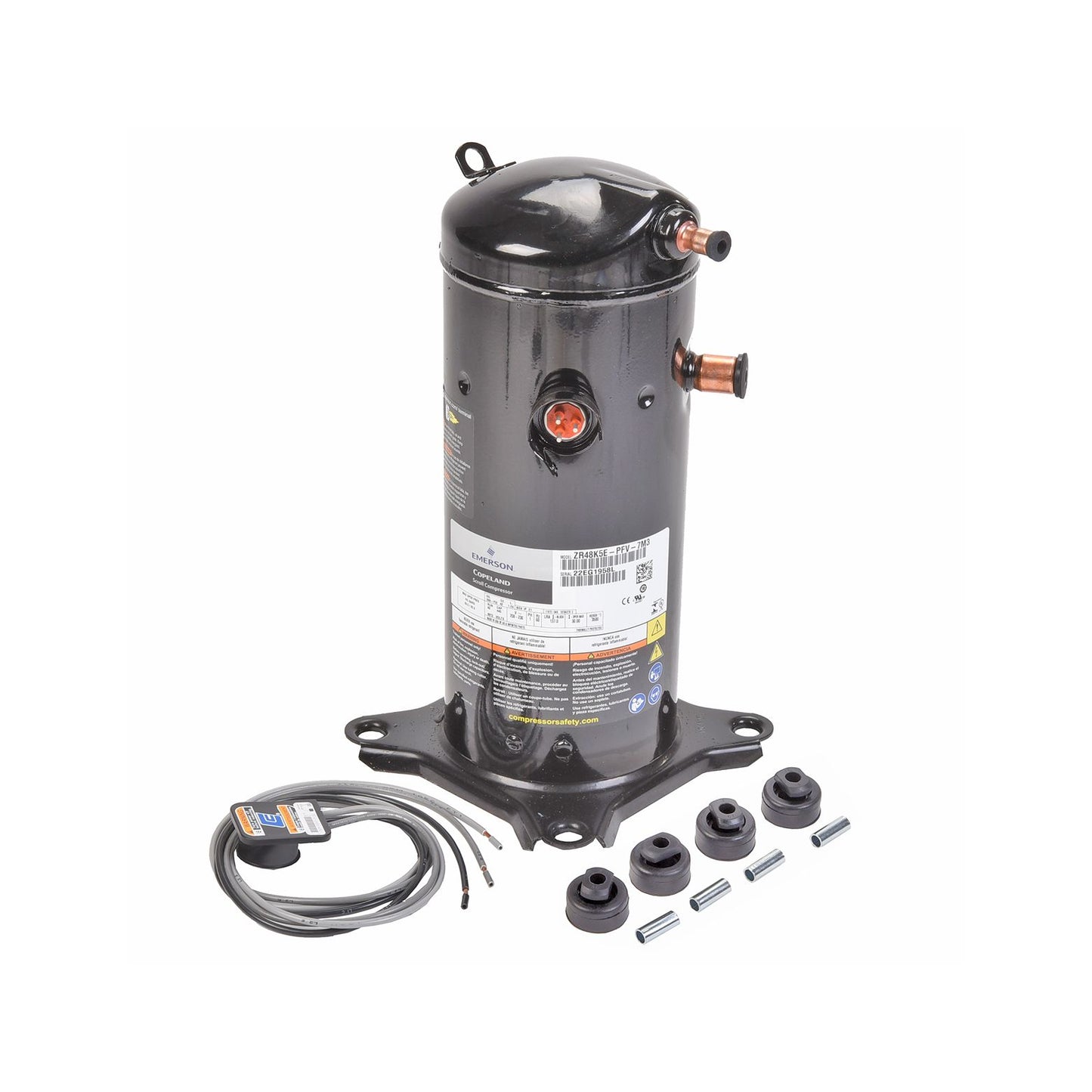

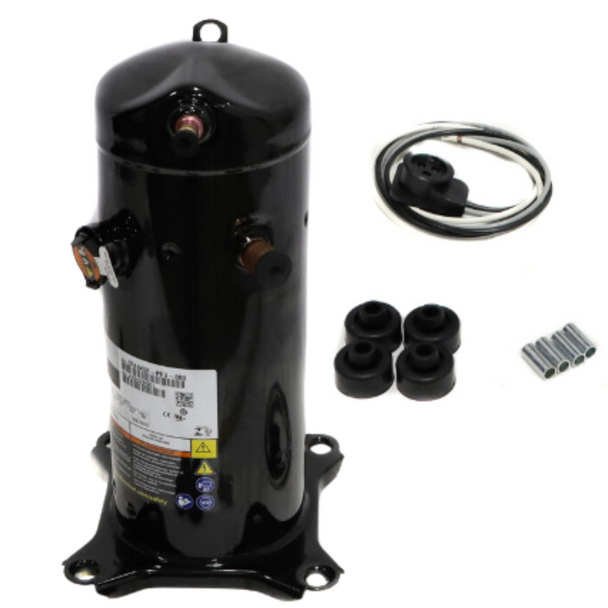

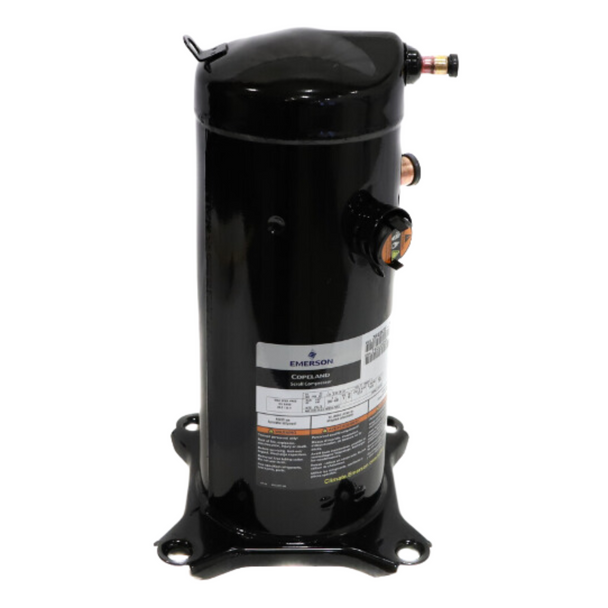

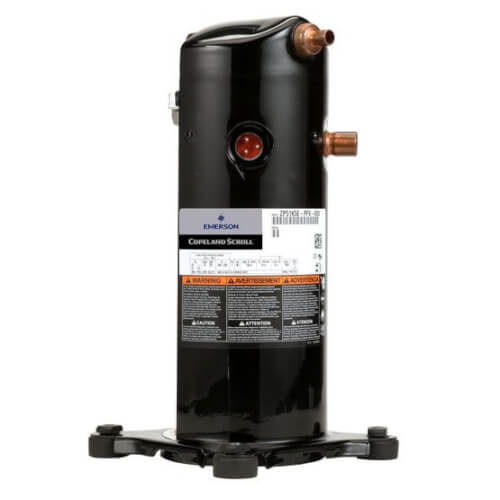

Emerson ZR48K5E-PFV-800 Compressor, 208-230/1/60 1/2 inches x 7/8 inches Scroll COM11200

Product Description

The EMERSON ZR48K5E-PFV-800 compressor is designed for HVAC applications. This Copeland Scroll compressor operates at 208-230V, 60Hz, single-phase power, and is compatible with R407C refrigerant. Features a liquid line size of 1/2" and suction line size of 7/8". It is optimized for post-2010 R-22 service and OEM system production for exports.

• Legacy Copeland Scroll fixed speed compressor
• 48000 BTU Capacity
• Optimized scroll and seal design

Product Highlights

The EMERSON ZR48K5E-PFV-800 compressor is suitable for residential and light commercial markets. Direct replacement for 120U3210, COM11200 & S1-SR047KBZ.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: ZR48K5E-PFV-800

Technical Specifications

• Phase: 1-phase
• Height: 16.94"
• Length: 9.69"
• Frequency: 60Hz
• Application: HVAC
• Refrigerant: R407C
• Series-Brand: Copeland
• Liquid Line Size: 1/2"
• Mounting Dimensions: 7.50" x 7.50"
• Refrigeration Type: R-22, R-407C
• Cooling Efficiency (EER): UP TO 10.85
• Capacity Range (BTU): 46200-61900
• Voltage@Hz: 208/230@60
• Product Type: Compressor
• Capacity (BTU): 48000
• Voltage: 230V, 208V
• Capacity (BTU/HR): 48200
• Type: Scroll
• Input Voltage (V): 230
• No. of Phases: 1
• Freq. (Hz.): 60
• Run Capacitor (uF/V): 60/440
• Start Kit: SK-A1
• Kick Start: 42-KS1
• Start Relay P/N: 42-25105-01
• Start Capacitor (uF/V): 88-106/330
• Start Capacitor Part Number: 43-17075-04
• Rated Load Current (A): 24.3
• Max. Continuous Current (A): 34.0
• Locked Rotor Current (A): 137.0
• Crankcase Heater Included?: No
• Crankcase Heater Part Number: 44-17402-45
• Soundwrap (Brinmar): 68-25217-10
• Refrigerant Oil: POE (85-32CST)
• Suction Line Location: 2
• Suction Line Height (in.): 11-3/16
• Suction Line Configuration: Stub Out
• Suction Line Size (in.): 7/8
• Discharge Line Location: 3
• Discharge Line Height (in.): 15-7/16
• Discharge Line Configuration: Stub Out
• Discharge Line Size (in.): 1/2
• Overall Compressor Height (in.): 16-7/16
• Mounting Base Dimensions (in. x in.): 7-1/2 x 7-1/2
• BTU: 48,000 BTU
