Emerson ZR38K5E-PFV-800 Compressor, 208-230/1/60 1/2 inches x 7/8 inches Scroll Comliant A/C R407C

Product Description

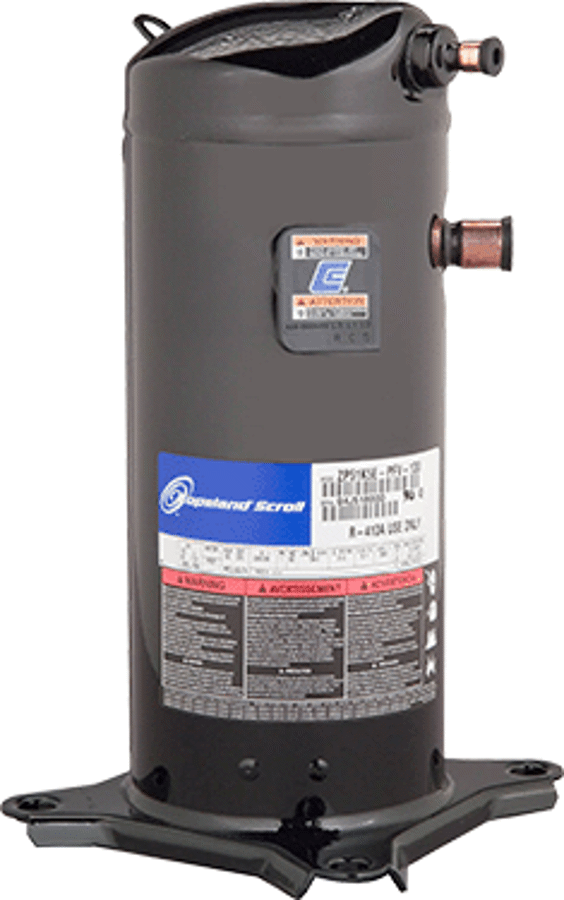

The Emerson ZR38K5E-PFV-800 compressor is a scroll compressor designed for HVAC applications using R407C refrigerant. It operates at 208-230/1/60 and features a 1/2" x 7/8" connection. This Copeland series compressor provides efficient and reliable performance for air conditioning systems.

• Capacitor run-permanent split capacitor motor type
• Internal inherent protection
• Compressor family Series

Product Highlights

This Emerson compressor is suitable for air conditioning systems using R407C refrigerant. It features a scroll design and operates at 208-230 VAC.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: ZR38K5E-PFV-800

Technical Specifications

• Phase: 1-phase
• Height: 16.94"
• Length: 9.69"
• Frequency: 60Hz
• Dimensions: 9.69" x 9.69" x 16.94"
• Application: HVAC
• Refrigerant: R407C
• Series-Brand: Copeland
• Liquid Line Size: 1/2"
• Mounting Dimensions: 7.50" x 7.50" x 17.17"
• Series: ZR
• BTU Rating: 38000 Btu/hr
• Tonnage: 3 ton
• Amperage Rating: 16.3 A
• Voltage Rating: 208 to 230 VAC
• Compressor Oil: POE-AK/DA, 3MA/SP32
• Power Rating: 3490 W
• Speed Rating: 3500 rpm
• Sound Level: 70 dBA
• EER Rating: 10.5
• HP/Ton: 3
• Volts: 208/230
• Brand: Copeland Emerson
• Compressor Type: Scroll
• Capacity: 28,100-38,000 BTUh
• Voltage: 230 V
• Number of Compressors: 1
• Model: ZR38K5E-PFV-800
• MPN: ZR38K5EPFV800
• Power Phase: 1 Phase
• Suction Line Size: 7/8"
