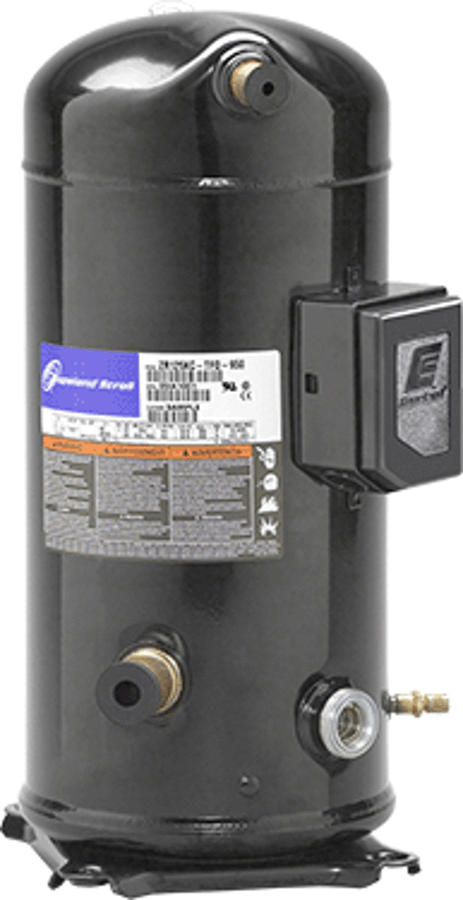

Emerson ZR125KCE-TFD-950 Compressor, 460/3 7/8 inches x 1-3/8 inches Scroll Compliant A/C R22/R407C

Product Description

The Emerson ZR125KCE-TFD-950 compressor is a scroll compressor designed for HVAC applications using R22/R407C refrigerant. It features a 1-3/8" ODF soldered suction and a 7/8" ODF soldered discharge. This compressor is suitable for air conditioning systems, operating at 460 VAC 60 Hz and 380 to 240 VAC 50 Hz 3-Phase, with a capacity of 125000 BTU/Hr.

• Scroll Compressor
• 1-3/8" ODF Soldered Suction, 7/8" ODF Soldered Discharge
• Suitable for R-22/R-407C/R-134A Refrigerants

Product Highlights

Designed for air conditioning, this Emerson compressor provides 125000 BTU/Hr capacity and includes POE oil and internal inherent protection.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: ZR125KCE-TFD-950
• Country of Origin: US

Technical Specifications

• Application: HVAC
• Refrigerant: R22/R407C
• Used On Item: Air Conditioner
• Connection Size: 1-3/8 Inch ODF Soldered (Suction), 7/8 Inch ODF Soldered (Discharge)
• Refrigerant Type: R-22/R-407C/R-134A
• Nominal Capacity: 125000 BTU/Hour
• Voltage Rating: 380 to 240 Volt AC 50 Hertz, 460 Volt AC 60 Hertz 3-Phase
• Motor Type: 3-Lead 3-Phase
• Cooling Efficiency: 11.5 EER
• Includes: POE Oil, Internal Inherent Protection
• Brand: Copeland
• Capacity: 125000 BTU
• Discharge Connection: Horizontal
• Discharge ID: 7/8"
• Line Voltage (60Hz): 480V
• Mounting Arrangement: A
• Refrigerant Oil Type: Polyol Ester (POE)
• Suction Connection: Horizontal
• Suction ID: 1-3/8"
• Variety Type: Scroll
• Compressor Capacity: 125000 btu
• Discharge Line Height: 19.73 in
• Frequency: 50Hz, 60Hz
• Height: 21.0 in
• Length: 10.38 in
• LRA: 125.0 A
• Max RLA: 19.2 A
• Motor Phase: 3
• Oil Recharge: 5.3 pints
• Shell Height: 21 in
• Shipping Height: 32 in
• Shipping Length: 32 in
• Shipping Point: 37406
• Shipping Weight: 156 lb
• Shipping Width: 38 in
• Suction Line Height: 4.81 in
• Technology: Scroll
• Type: Hermetic
• Voltage: 460 V
• Weight: 135 lb
• Width: 11.23 in
• Horsepower: 10 hp
• Suction Line: 1-3/8 in Stub
• Discharge Line: 7/8 in Stub
• Speed: 3500 rev/min
• Displacement: 10.20 cu-in/rev
• Rated Load: 19.2 A
• Maximum Continuous: 26.9 A
• Locked Rotor: 125 A
• Initial Oil Charge: 110 oz
• Internal Free Volume: 809 cu-in
• Mounting: 7-1/2 in L x 7-1/2 in W x 21-3/4 in H
• Weight Flow: 1820 - 1870 lb/hr
• Sound Level: 80 - 85 dBA
• EER: 11.6 - 19.6
• Compressor Oil: POE-AK/DA, 3MA/SP32
• Phase: 3
• BTU: 125,000 BTU
• Country of Orgin: US
• Manufacturer: Emerson
• Related Equipment: A/C, HP
• Tons: 10
• Product Group: Compressors
• Product Type: Hermetic
