Emerson ZR108KCE-TFD-950 Compressor 460/3 1/2 inches x 7/8 inches

Product Description

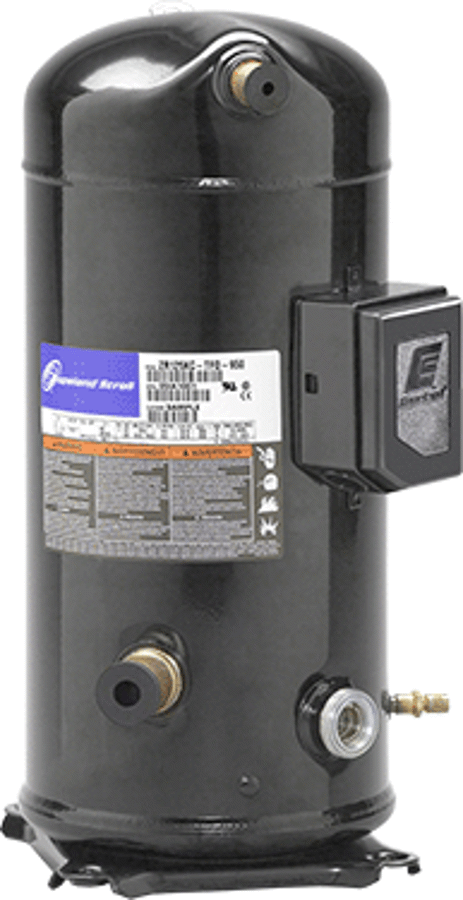

The EMERSON ZR108KCE-TFD-950 is a compressor designed for HVAC applications, utilizing R22/R407C refrigerant. This Copeland™ ZR series scroll compressor features a 1-3/8 in stub suction line and a 7/8 in stub discharge line. It operates at 460 VAC, with a power rating of 9220 W and 9 hp, and a speed of 3500 rpm.

• General 3-lead single voltage, 6-lead part winding (575 V)
• Internal inherent protection
• 108000 Btu/hr BTU, 9 ton
• Terminal block connection

Product Highlights

This EMERSON compressor is suitable for air conditioning systems using R-22, R-407C, and R-134A refrigerants.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: ZR108KCE-TFD-950

Technical Specifications

• Application: HVAC
• Refrigerant: R22/R407C
• Amperage Rating: 14 A
• BTU Rating: 108000 Btu/hr
• Compressor Oil: POE-AK/DA, 3MA/SP32
• Discharge Line Size: 7/8 in Stub
• EER Rating: 11.5 to 19.4
• Flow Rate: 1540 to 1580 lb/hr
• Power Rating: 9220 W, 9 hp
• Refrigerant Type: R-22, R-407C, R-134A, HCFC
• Series: ZR
• Sound Level: 80 to 85 dBA
• Speed Rating: 3500 rpm
• Suction Line Size: 1-3/8 in Stub
• Temperature Rating: 45 deg F Evaporator, 100-130 deg F Condensing, 65 deg F Return Gas, 85 to 115 F Liquid
• Tonnage: 9 ton
• Voltage Rating: 460 VAC
