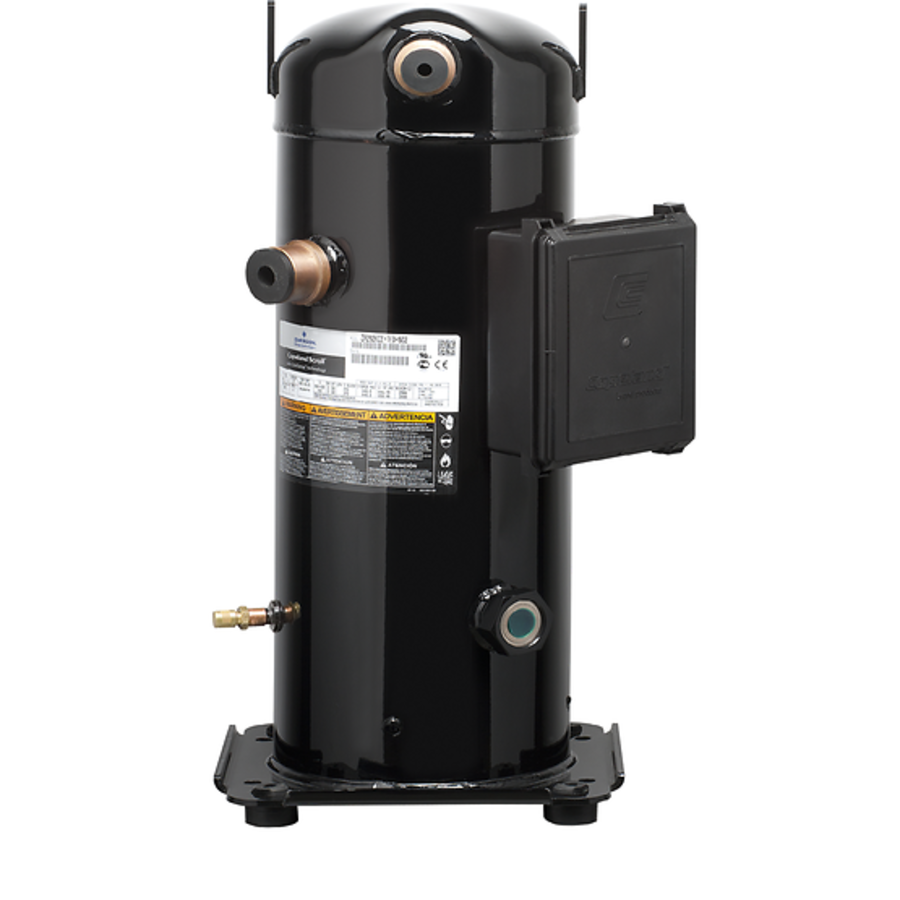

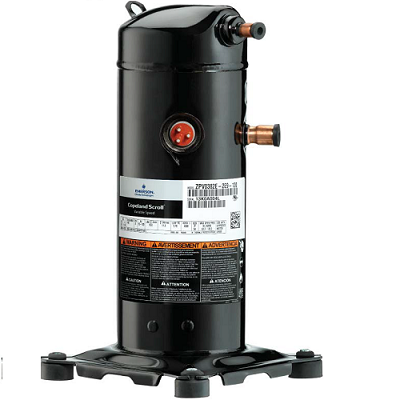

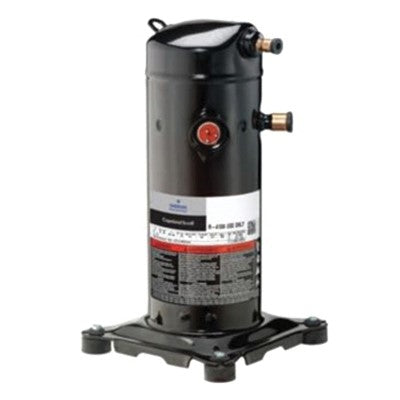

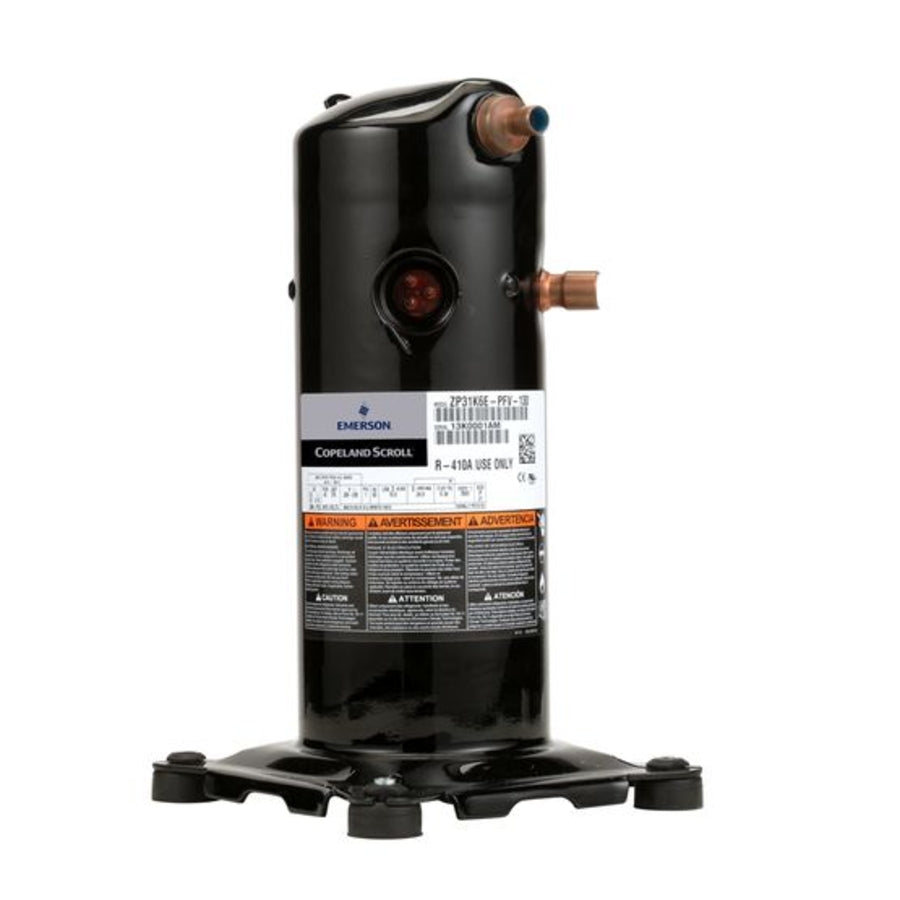

Emerson ZP49K5E-PFV-800 Compressor 208-230/1/60 1/2 inches x 7/8 inches Scroll A/C Compliant R410A

Product Description

The EMERSON ZP49K5E-PFV-800 is a compressor designed for HVAC applications, utilizing R410A refrigerant and scroll compression. It operates at 208/230V and 60 Hz. This compressor features a 1/2" liquid line size and a 7/8" suction line size. It is designed to deliver maximum cooling and heating efficiency.

• Compliant Scroll Air Conditioning Compressors
• Internal motor protector
• 60 Hertz

Product Highlights

The ZP49K5E-PFV-800 compressor is suitable for air conditioning systems, providing efficient and reliable performance with its scroll design and R410A compatibility.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: ZP49K5E-PFV-800

Technical Specifications

• Type: Compressor
• Voltage: 208/230
• Frequency: 60 Hz
• Application: HVAC
• Refrigerant: R410A
• Compression Type: Scroll
• Liquid Line Size: 1/2"
• Suction Line Size: 7/8"
• Phase: Single
• Temperature Rating: A/C
• Brand: COPELAND SCROLL[TM]
• Oil Type: POLYOLESTER
• Motor Type: CAPACITOR RUN, PERMANENT SPLIT CAPACITOR
• Discharge Size: 1/2 INCH STUB
• Current Rating: 27.9 AMP (RATED LOAD), 39 AMP (MAXIMUM CONTINUOUS), 134 AMP (LOCKED ROTOR)
• Power Rating: 4 HP
• Capacity: 49000 BTU/HOUR
• Model: ZP
