Emerson ZP42K5E-TFD-800 Compressor 460/3/60 1/2 x 7/8 Scroll Compliant A/C R410A

Product Description

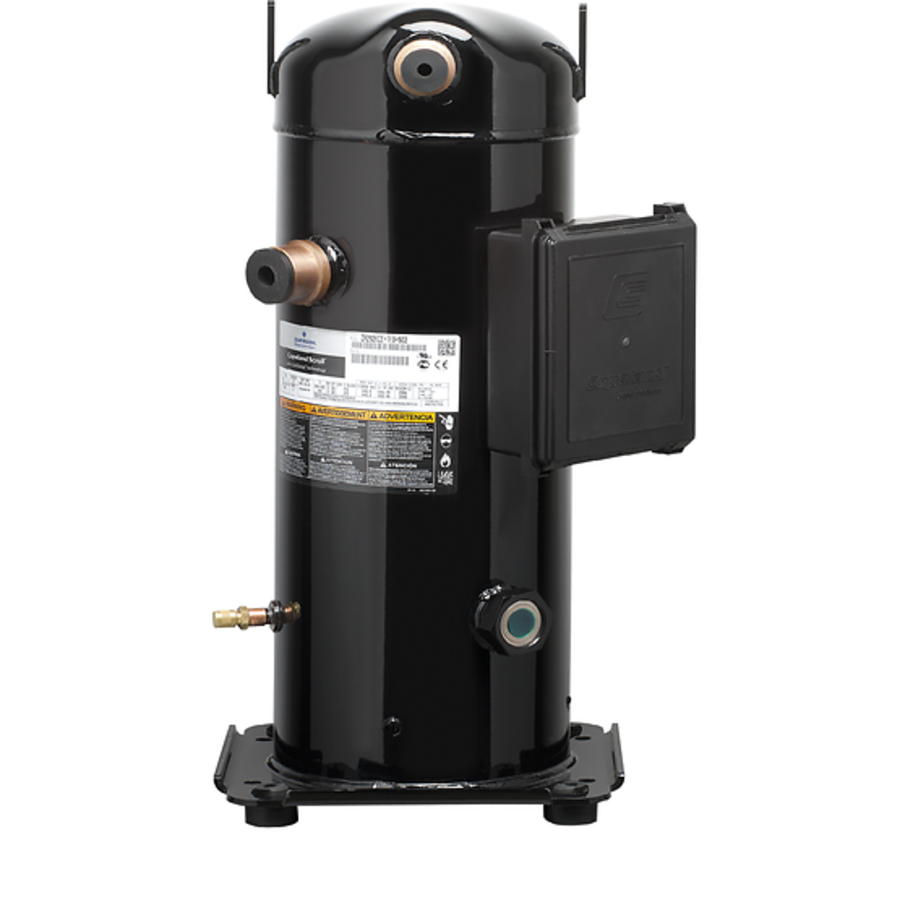

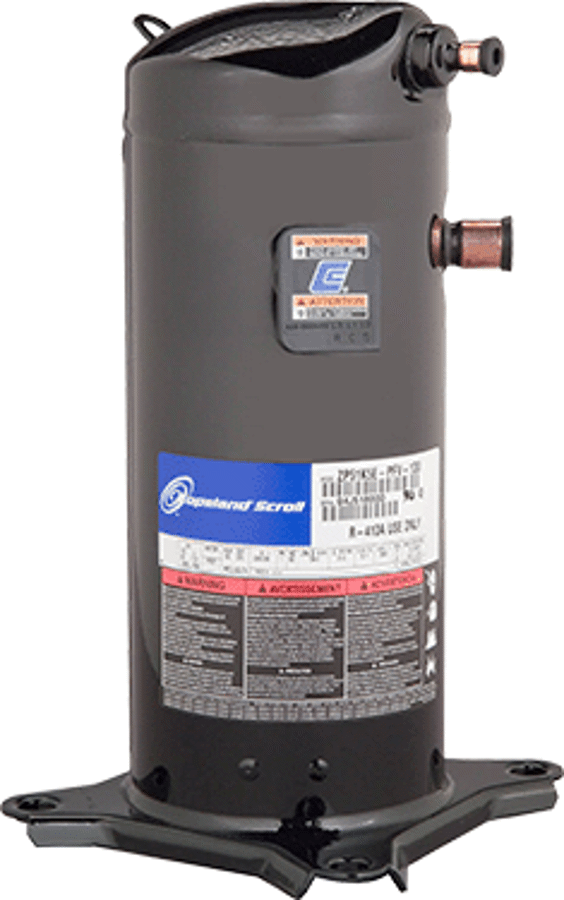

The Emerson ZP42K5E-TFD-800 is a compressor designed for effective HVAC applications. This model operates on a voltage of four hundred sixty volts with three phases and sixty hertz frequency. It utilizes R410A refrigerant and features a scroll compression type.

• Compact mounting dimensions of seven point five inches by seven point five inches by seventeen point one seven inches.
• Features a liquid line size of one half stub and a suction line size of seven eighths stub.
• Provides a cooling capacity of forty-one point nine MBH.

Product Highlights

This compressor serves as an essential component in HVAC systems, ensuring reliable performance and compliance with industry standards.

Product Information

Standard Information

• Brand: Emerson
• Model Number: ZP42K5E-TFD-800

Technical Specifications

• Type: Compressor
• Phase: 3
• Voltage: 460
• Frequency: 60 Hz
• Electrical: 460-3-60
• Application: HVAC
• Refrigerant: R410A
• Compression Type: Scroll
• Liquid Line Size: 1/2 Stub
• Suction Line Size: 7/8 Stub
• Mounting Dimensions: 7.50 x 7.50 x 17.17
• Width: 9.56 inches
• Height: 16.94 inches
• Length: 9.56 inches
